20889 MagTek

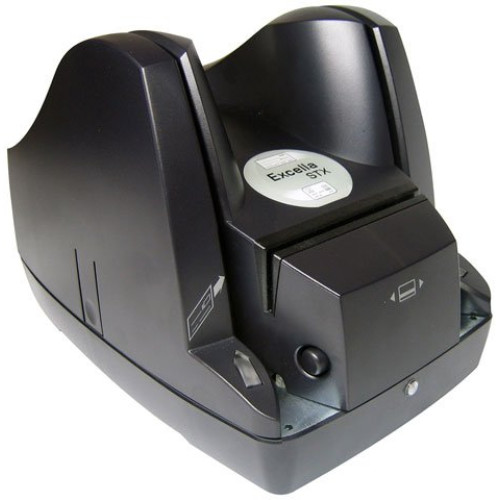

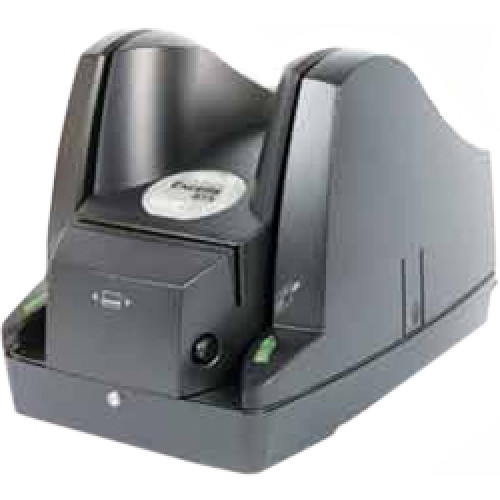

MagTek Excella STX MICR Check Scanner Part # 22350009

The Magtek Excella STX utilizes a single-feed check operation which allows for a compact design with feature-rich options: it prints on the front and the back the check, reads MICR data and scans both sides of the check in a single pass, creating high-quality color, grayscale or black and white images in the most common file formats used in the industry. The Excella STX also performs as a hybrid scanner by offering single-side scanning of standard ID cards (e.g. driver's licenses) with the same device with no additional accessories required. A USB interface and optional 3-track magnetic stripe reader make the Excella STX the complete check scanning solution.

22350009 - MagTek Excella STX MICR Check Reader

Part Details: Excella STX, USB interface. Includes ID card scanner, 3 Track MSR, USB cable and US power supply. Prints on check back only.
MSRP: $815.00 Price: $487.78
In Stock - Ships Free

Additional Information

Check Feed Single-Feed
Check Scanning Dual-Sided
Color Black
Interface USB and Ethernet
Magnetic Stripe Track 1, 2 & 3
Manufacturer MagTek
Printer Endorsing Back Only
Product Condition New
  • Color scanning available
  • Interfaces: USB 2.0 and Ethernet 100baseT
  • Single-sided scanning of standard ID cards
  • Easy access to path and scan bars for maintenance and cleaning
  • Optional 3-Track swipe reader with MagnePrint
  • API and protocol compatible with MagTek Excella (auto-feed scanner)
  • Built-in Web server
  • Single-feed check operation
  • Small footprint

Technical Information

  • MICR Font Supported:
    • E13-B
    • CMC-7
  • Check Scanning: Dual-sided
  • Check Feeder Capacity: 1
  • Check Size: 4" x 8.50"
  • Image Compression:
    • JPEG
    • CCITT

General Information

  • Product Type: Check Reader
  • Brand Name: MagTek
  • Manufacturer: MagTek, Inc
  • Product Model: 22350009
  • Product Name: Excella STX 22350009 Check Reader
  • Product Line: Excella STX

Physical Characteristics

  • Height: 6.3"
  • Width: 6.3"
  • Color: Black
  • Length: 9.4"
  • Weight (Approximate): 4.30 lb


  • Interfaces/Ports:
    • USB 2.0 USB
    • RJ-45Network


  • Additional Information:
    • Card Speed: 4 to 60 ips (10.1 to 152.4 cm/s)
    • Printer Ink Cartridge: HP C6602A
    • Check Scanning: Dual-sided
    • ID Card Scanning: Single-sided

Power Description

  • Input Voltage: 24 V DC
Extended Details
