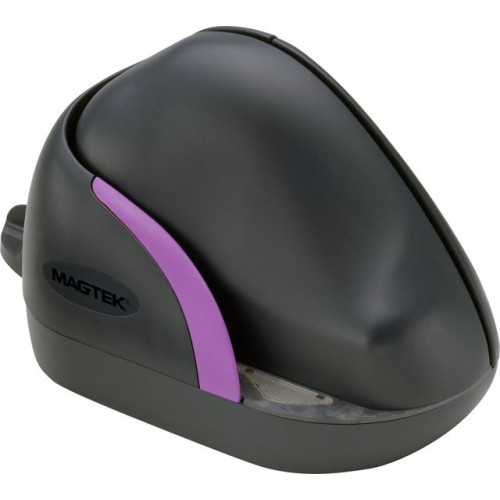

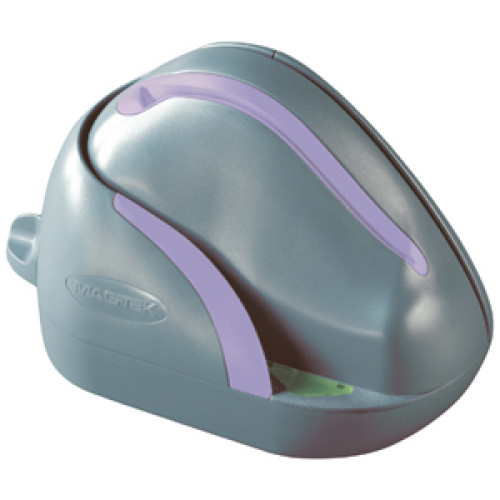

MagTek MICRImage Check Reader
Part #: 22410005 | SKU: MAG1727

The MICRImage Check Reader with optional Magnetic Stripe Readers meet the challenges of speed and accuracy in the most demanding environments. Daily, thousands of businesses worldwide use our check readers to speed customer transactions, reading billions of real-world checks with every conceivable MICR data format. Offering a read reliability rate of 99.7% - the best in the industry - MagTek check-reading product line assures complete confidence in data captured from checks, credit cards and driver's licenses.

MagTek MICRImage Check Reader

Part Details: MICRImage, RS-232 & Ethernet interface check reader. Includes 3 track integrated MSR Order cables & power supply separately. See accessories.

Need a different version of the MagTek MICRImage Check Reader? View all 5 configurations

Additional Information

Manufacturer	MagTek
Model Name	MICRImage

MagTek MICRImage Specs (pdf)

Technical Information

MICR Font Supported:
- E13-B
- CMC-7
Magnetic Stripe Track Configuration: Triple Track
Magnetic Stripe Track Number:
- Track 1
- Track 2
- Track 3
Check Reading Speed: 10 in/s
Features: MSR

General Information

Product Type: Check Reader
Brand Name: MagTek
Manufacturer: MagTek, Inc
Product Model: 22410005
Product Name: MICRImage 22410005 Check Reader with MSR
Product Line: MICRImage

Physical Characteristics

Height: 6"
Width: 3.9"
Color:
- Dark Gray
- Purple
Length: 9"
Weight (Approximate): 2.50 lb

Interfaces/Ports

Interfaces/Ports:
- 1 RS-232 Serial
- 1 RJ-45Network

Other

Certifications & Standards: ANSI X9.27
Additional Information:
- Check Read Head: 1000000 Passes
- Document Size: 4" x 8.5" max
- Image Capture: 200 dpi (grayscale, black & white)
- Image Storage: 1 MB (standard) or 8 MB
- Power & Communication Connector: DB-25 female
- Current:
- Idle: 300 mA
- Operating: 1.5 A max

Environmental Conditions

Humidity:
- 10% to 90% Non-condensing Operating
- 0% to 100% Non-condensing Storage
Temperature:
- 32°F (0°C) to 122°F (50°C) Operating
- -22°F (-30°C) to 158°F (70°C) Storage

Reliability

MTBF: 125000 Hour

Power Description

Input Voltage: 12 V DC

Extended Details
