31843 MagTek

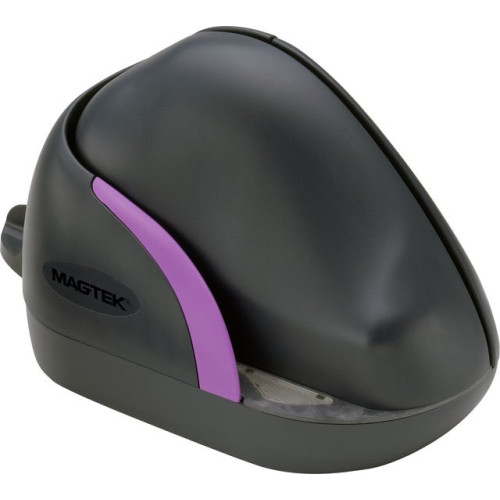

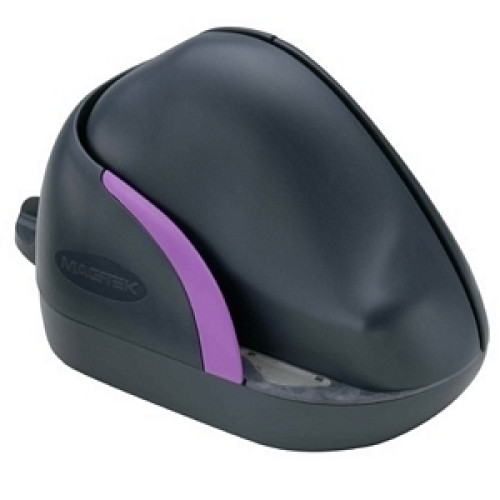

MagTek MICRImage Check Reader MICR Check Scanner Part # 22410006

The MICRImage with optional Magnetic Stripe Readers meet the challenges of speed and accuracy in the most demanding environments. Daily, thousands of businesses worldwide use our check readers to speed customer transactions, reading billions of real-world checks with every conceivable MICR data format. Offering a read reliability rate of 99.7% - the best in the industry - MagTek check-reading product line assures complete confidence in data captured from checks, credit cards and driver's licenses.

22410006 - MagTek MICRImage MICR Check Reader

Part Details: MICRImage, RS-232 interface, 200 dpi image resolution, Include Internal Modem and No Magnetic Stripe Reader, Requires Power supply and Cable.
InStock

Additional Information

Manufacturer MagTek
Product Condition New
  • Reads E13-B and CMC-7 fonts
  • Image resolution: 200 dpi
  • Image compression: CCITT or G4
  • Image files: TIFF 6.0 (other formats can be made available)
  • Image storage capacity for up to 100 black & white images
  • Each model includes two interface ports: RS-232/RS-232, RS-232/Ethernet, or RS-232/Modem
  • USB connectivity is also available
  • Easy-access feature allows convenient cleaning of scan bar and check path (no tools required)
  • Optional 3-Track MSR (magnetic stripe reader)
  • Also available: MICR ER (Enhanced Reading) feature used for automated confirmation of MICR data

Technical Information

  • MICR Fonts Supported:
    • E13-B
    • CMC-7
  • Reliability: 125000 Hour(s) MTBF
  • Input Voltage: 12 V DC
  • Document Speed: 10ips
  • Interface Options:
    • RS-232
    • Internal Modem

General Information

Physical Characteristics

  • Dimensions: 6" (152mm) x 3.9" (99mm) x 9" (229mm)
  • Weight: 2.5 lb (1.13 kg)
  • Color:
    • Gray
    • Purple

Other

  • Additional Information:
    • Check Read Head: 1,000,000 Passes
    • Document Size: 4" x 8.5" max
    • Image Capture: 200 dpi (grayscale, black & white)
    • Image Storage: 1 MB (standard) or 8 MB
    • Power & Communication Connector: DB25 female
    • Idle: 300 mA
    • Operating: 1.5 A max

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -22°F (-30°C) to 158°F (70°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 0 to 100% Storage Non-condensing

Agency Approvals

  • Agency Approvals: ANSI X9.27
