61572 MagTek

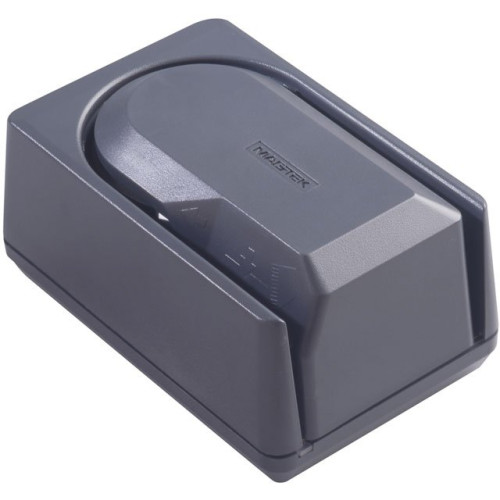

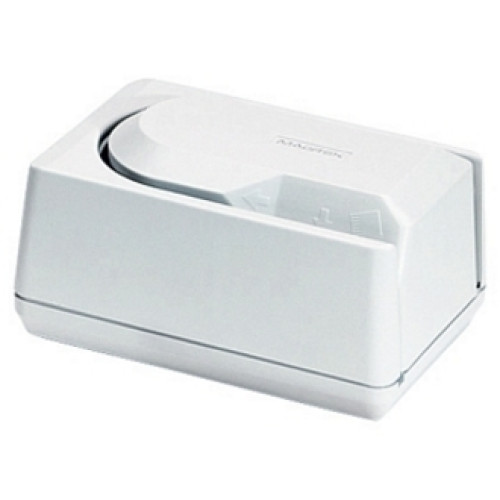

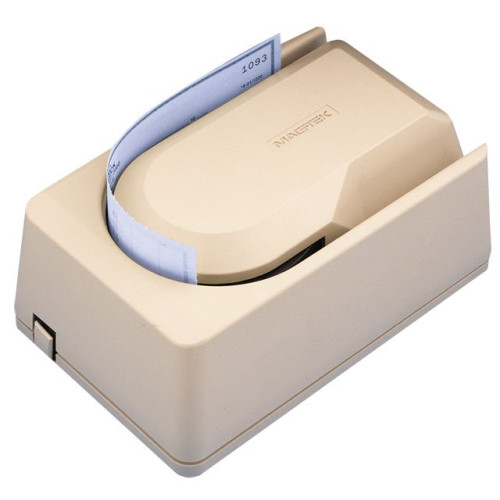

22530022 - MagTek Mini-MICR Check Reader MICR Check Reader

Mini-MICR Check Reader, MiniMICR Check Reader (with MSR, Tracks 1, 2 and 3 with Wedge Format, 240 Volt) - Color: Gray INTERNATIONAL USE ONLY
Free Shipping


The Mini-MICR Check Reader is small in size and economically priced. It can read checks in numerous formats. It has a small footprint and a high accuracy. Great basic check reader, it will get the job done.
  • Choose from RS-232 or Keyboard wedge interfaces
  • Optional magnetic stripe reading capability
  • Reads E13-B and CMC-7 MICR fonts
  • Reads MICR characters on checks, deposit, withdrawal slips and other documents
  • Small footprint, low cost check reader with high accuracy and dependability

Additional Information

Manufacturer MagTek

Recommended Accessories

Ships Today
Free Shipping
- +
USB Cable Adapter, DB-25M to USB-A, for the MICRImage
$50.00 $38.75
Ships Today
Free Shipping
- +
USB interface cable, 6 ft. for MiniMICR. Pricing is for the cable when purchased in combination with the MiniMICR unit. If you are purchasing ONLY the cable, please purchase (Part# 22517583ONLY).
Ships In 3-5 Days
Free Shipping
- +
12V power adapter for the MiniMICR Check Reader
$25.00 $15.35
Ships Today
Free Shipping
- +
PS/2, Keyboard wedge cable for MiniMICR
$30.00 $29.26
Ships In 3-5 Days
Free Shipping
- +

Technical Information

  • MICR Fonts Supported:
    • E13-B
    • CMC-7
  • Magnetic Stripe Configuration: Triple Track 1, 2 & 3
  • Reliability: 125000 Hour(s) MTBF
  • Input Voltage: 240 V AC
  • Document Speed: 17ips
  • Interface Options: Keyboard Wedge

General Information

  • Manufacturer:
  • Product Name: Mini MICR Check Reader with Triple Track MSR

Physical Characteristics

  • Dimensions: 3.18" (81mm) x 4" (102mm) x 6.19" (157mm)
  • Color: White

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 131°F (55°C) Operating
    • -22°F (-30°C) to 158°F (70°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 0 to 100% Storage Non-condensing

Agency Approvals

  • Agency Approvals: ANSI X9.27


  • Additional Information: Check Read Head: 1000000 Passes
