Metrologic MS1690 Focus Specs
| MS1690 Focus Quick Specs | |
| Depth of Field: (programmable) |
0 mm - 230 mm (0” - 9.0”) for 0.33 mm (13 mil) bar code |
| Field of View: | 49 mm W x 19 mm H (1.9” W x 0.8” H) @ 20 mm (0.8”); 264 mm W x 106 mm H (10.4” W x 4.2” H) @ 280 mm (11.0”) |
| Pitch, Skew: | 15°, 15° |
| Beeper Operation: | 7 tones or no beep |
| Minimum Bar Width: | 0.127 mm (5.0 mil) |
| Dimensions: | 183 mm x 67 mm x 108 mm (2.60” x 2.65” x 4.25”) |
| System Interfaces: | Keyboard Wedge, RS232, Stand Alone Keyboard, USB (low and full speed), IBM |
| Light Source: | LED 645 nm ± 7.5 nm |
| Weight: | 200 g (7.05 oz) |
| Indicators (LED): | Blue = unit powered, ready to scan; White = good read; Yellow = in stand |
Refine Your Options
Shop By
Shopping Options
-
Form Factor
-
Scanner Capability
-
Scanner Type
-

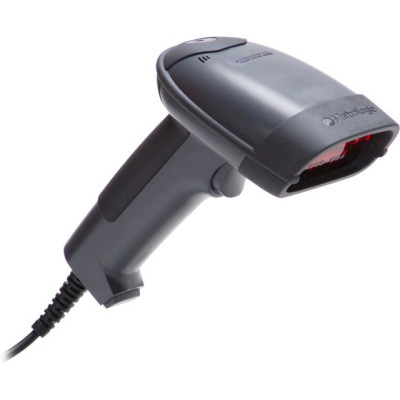

Metrologic MS1690 Focus Barcode Scanner
Part #: MK1691-60A38-02-A | SKU: MET87062MS1690 Focus, SCANNER ONLY. 2D Imager, USB interface, Color: Dark gray. Cables and accessories must be purchased separately. These include USB (Part# 53-53235-N-3-FR)
Recommended Accessories for Model: Metrologic MS1690 Focus Barcode Scanner
-
Honeywell Cables Cables, Connectors, and Adapters
Part #: 53-53000-3 | SKU: HON83333RS-232, black, DB-9 female, 2.9m (9.5'), coiled, 5V external powerPrice: $19.23 -
Honeywell Cables Cables, Connectors, and Adapters
Part #: 53-53235-N-3 | SKU: HON83408USB, black, Type A, 2.9m (9.5'), coiled, host powerMSRP: $33.20 Price: $27.67 -
Honeywell MS1690 Focus Software
Part #: SW-OCR-1690 | SKU: HON84683Focus OCR License (for the MS1690)MSRP: $71.47 Price: $51.84 -
Honeywell 1400g Power Device
Part #: 46-00525-6 | SKU: HON453630Accessory, Honeywell Power Supply, 1A Output Current, 90 to 255 AC Input Voltage, North American Plug, Compatible with Select Honeywell Scanners.MSRP: $67.06 Price: $48.64 -
Honeywell Accessories Software
Part #: TF-EasyDLx-16xx | SKU: HON210588Software: EasyDL license key for Focus series of products including MS1633 and MS1690Price: $170.18
Recommended Warranties for Model: Metrologic MS1690 Focus Barcode Scanner
-
Honeywell Service Contracts Service Contract
Part #: HHSCAN2-REPAIR | SKU: HON402770Flat Rate Repair fee for 4600g/r, 1690, 1900g, 1900c, 1500, 1450g, 1400. This charge is for any required repair not covered by warranty or comprehensive service.
