26911 Metrologic

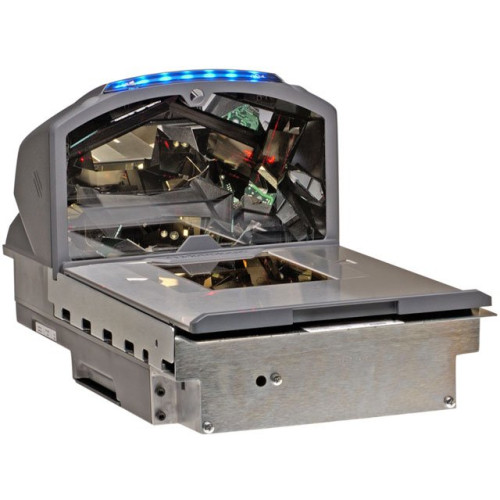

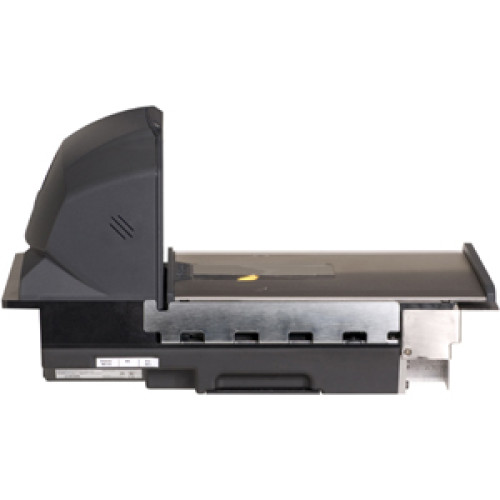

MK2320KD-60B238 - Metrologic MS2320 StratosH Bar code Scanner

MS2320 StratosH, full size scanner-scale USB kit with no display. Includes USB cable, power supply, & diamonex glass. Non-Cancelable/Non-Returnable.
Free Shipping


MS2320 StratosH is Metrologic's 6-sided 360 degree high performance bioptic scanner/scale series well suited for POS applications supporting narrow enclosures around the vertical tower. MS2320 StratosH is designed to allow easy integration into most of today's seated and standing checkout environments. MS2320 StratosH features a powered RS232 auxiliary port for integration of a handheld barcode scanner, flash ROM firmware upgrade capability, MetroSet2 PC-based configuring and sapphire or diamonex based horizontal glass.
  • Accomodates checkstands incoporating narrow enclosures around the vertical tower
  • Built-in decoding of 1D and RSS barcodes
  • Easy to install - fits standard counter openings
  • Lowest below counter dimensions of all 6-sided bi-optic scanners
  • StratosSCAN 360 degrees, 6 sided scanning technology
  • StratosSCOPE visual diagnostic indicator-for easy maintenance
  • StratosSHERE advanced decoding software to further increase first pass scanning
  • StratosSWAP field replaceable optical scanning modules - for fast, easy on-site repair
  • StratosSYNC independent scanning technology

Additional Information

Manufacturer Metrologic
Color Black
Scanner Type Omnidirectional
Form Factor In Counter
Scanner Capability 1D
Connectivity Corded
Scan Pattern Area
Included Cables USB
Ruggedness General Purpose
Embedded Scale Embedded Scale
Glass Type Diamonex

Recommended Accessories

Scale Display, Remote Single Line, Compatible with MS2420/MS2430 Stratos.
$164.00 $97.65
Ships Today
Free Shipping
- +
Wire Seal Kit (for the DIVA SCL)
Ships In 3-5 Days
Free Shipping
- +
Voyager Wall mount Hook
Ships Today
Free Shipping
- +
Dolphin 6100 Accessories, Dolphin 6x00 Quad Charger: 4 slot battery bay - charges standard and extended capacity battery
$298.00 $218.53
Ships In 3-5 Days
Free Shipping
- +
Terminal Emulation Software License, Naurtech CETERM Client License - Terminal Emulation software for VT100/220, TN5250, TN3270 emulation (6X00 Windows Mobile 6.5)
$288.00 $210.73
Ships In 3-5 Days
Free Shipping
- +

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • All standard 1-D barcodes
    • RSS-14
    • RSS-Expanded
    • RSS-14 Limited
    • All standard 1-D barcodes
    • RSS-14
    • RSS-Expanded
    • RSS-14 Limited
  • Maximum Scan Resolution: 6 mil
  • Depth of Field:
    • 0 mil - 6"@13 mil - Horizontal
    • 0 mil - 8.50"@13 mil - Vertical

General Information

  • Product Type: In-counter Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS2320
  • Product Name: Metrologic StratosH MS2320 Barcode Reader
  • Product Line: StratosH

Physical Characteristics

  • Height: 7"
  • Width: 11.5"
  • Depth: 4"
  • Weight (Approximate): 26 lb


  • Host Interface: USB


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Additional Information: Length: 20"


  • Limited Warranty: 2 Year
