29965 Metrologic

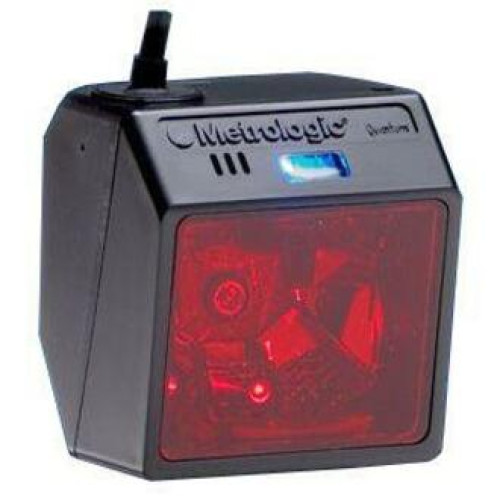

Metrologic IS3480 QuantumE Bar code Scanner Part # MK3480-30A39

The Metrologic IS3480 QuantumE omni-directional and single-line scanner is designed for integration with a variety of applications including interactive kiosks, price lookup systems, ATM's, reverse vending machines, controlled access, or a host of other devices. The IS3480 QuantumE's main cable connector is located at the top of the unit to facilitate mounting and the auxiliary connector gives users access to several of the I/O signals, providing the flexibility for external hookup of the beeper, button, and LEDs.

MK3480-30A39 - Metrologic IS3480 QuantumE Bar code Scanner

Part Details: IS3480 QuantumE, Quantum E Omnidirectional Barcode scanner, OMNI and Single USB, POS, Cables, Manuals and No Power supply

Additional Information

Manufacturer Metrologic
Product Condition New
Scanner Type Omnidirectional
  • Auxiliary connection for external I/O
  • Decodes all standard 1D, RSS-14, RSS Limited, and RSS expanded barcodes
  • Easy mounting integration with a unique profile and dual set of mounting holes
  • Flash upgradeable firmware
  • Fully automatic scanning operation
  • OPOS and JPOS system compatible
  • Single-line mode
  • Small form factor
  • Sweet-spot mode for ideal mounting location
  • User-replaceable, single cable interface to host

Technical Information

  • Symbologies Supported:
    • 1D Barcodes
    • RSS-Expanded
    • RSS-14
    • RSS-14 Limited
  • Scanner Type: Laser
  • Scan Rate: 1650 lps
  • Interface Options: USB
  • Scan Pattern: Omnidirectional
  • Depth of Field:
    • 2.5 - 5"@5.2mils
    • 1 - 7.5"@7.5mils
    • 1 - 9.5"@10.4mils
    • 1 - 11.5"@13mils
    • 1 - 12"@19mils

General Information

Physical Characteristics

  • Dimensions: 2.68" (68.07mm) x 2.48" (62.99mm) x 1.97" (50.04mm)
  • Weight: 6.0 oz
  • Color: Black

Agency Approvals

  • Agency Approvals:
    • Class 1; IEC60825-1:1993/A1:1997+A2:2001 Class 1; EN60825-1:1994/A11:1996+A2:2001
    • FCC
    • ICES-003
    • EN55022 Class A

Environmental Conditions

  • Temperature:
    • -20°C (-4°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95% Non-condensing
