15203 Metrologic

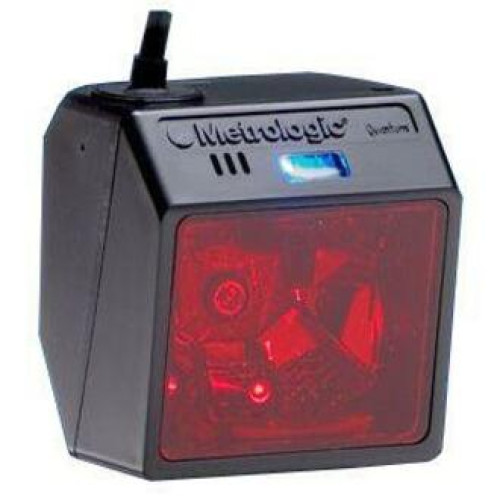

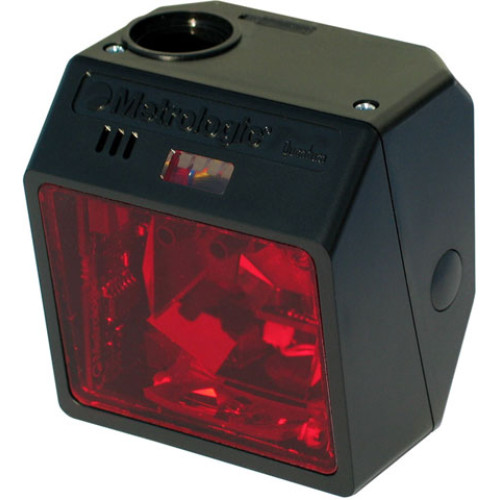

MK3480-30A41 - Metrologic IS3480 QuantumE Bar code Scanner

IS3480 QuantumE, RS-232 serial kit with omnidirectional and single line modes. Includes RS-232LP cable, user's manual and no power supply
InStock
Free Shipping

Description

The Metrologic IS3480 QuantumE omni-directional and single-line scanner is designed for integration with a variety of applications including interactive kiosks, price lookup systems, ATM's, reverse vending machines, controlled access, or a host of other devices. The IS3480 QuantumE's main cable connector is located at the top of the unit to facilitate mounting and the auxiliary connector gives users access to several of the I/O signals, providing the flexibility for external hookup of the beeper, button, and LEDs.
  • Auxiliary connection for external I/O
  • Decodes all standard 1D, RSS-14, RSS Limited, and RSS expanded barcodes
  • Easy mounting integration with a unique profile and dual set of mounting holes
  • Flash upgradeable firmware
  • Fully automatic scanning operation
  • OPOS and JPOS system compatible
  • Single-line mode
  • Small form factor
  • Sweet-spot mode for ideal mounting location
  • User-replaceable, single cable interface to host

Additional Information

Manufacturer Metrologic
Scanner Type Omnidirectional

Recommended Accessories

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern:
    • Omni-directional
    • Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • All Standard 1D Symbologies
    • RSS-Expanded
    • RSS-14
    • RSS-14 Limited
    • All Standard 1D Symbologies
    • RSS-Expanded
    • RSS-14
    • RSS-14 Limited
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 1.50" - 4.50"@5.20 mil
    • 1" - 7.50"@7.50 mil
    • 1" - 9.50"@10.40 mil
    • 1" - 11.50"@13 mil
    • 1" - 12"@26 mil

General Information

  • Product Type: In-counter Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: IS3480
  • Product Name: QuantumE IS3480 Barcode Reader
  • Product Line: QuantumE

Physical Characteristics

  • Height: 2.7"
  • Width: 2.5"
  • Depth: 2"
  • Color: Black
  • Weight (Approximate): 6 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Certifications & Standards:
    • Laser Class:
    • Class 1; IEC60825-1:1993/A1:1997+A2:2001
    • Class 1; EN60825-1:1994/A11:1996+A2:2001
    • EMC:
    • FCC
    • ICES-003
    • EN55022 Class A
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Light Pen Emulation

Power Description

  • Input Voltage: 5 V DC
