Newer Version Is Available

IS3480 QuantumE, RS-232 serial kit with omnidirectional and single line modes. Includes RS-232LP cable, user''s manual and US power supply
$240.00 $147.38
Ships Today
Free Shipping
- +

Product was successfully added to your shopping cart.
15207 Metrologic

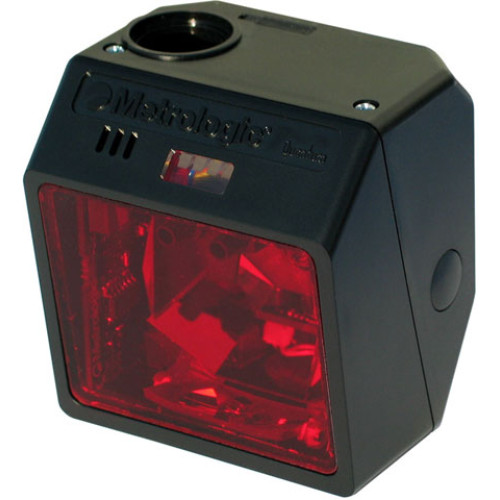

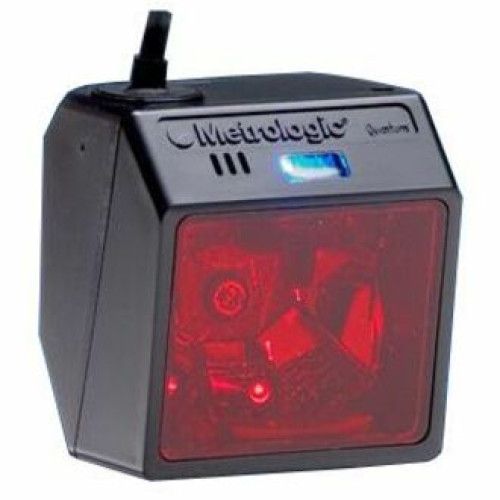

MK3480-30B41 - Metrologic IS3480 QuantumE Bar code Scanner

IS3480 QuantumE, RS-232 serial kit with omnidirectional and single line modes. Includes RS-232LP cable, user's manual and US power supply
InStock
Free Shipping

Description

The Metrologic IS3480 QuantumE omni-directional and single-line scanner is designed for integration with a variety of applications including interactive kiosks, price lookup systems, ATM's, reverse vending machines, controlled access, or a host of other devices. The IS3480 QuantumE's main cable connector is located at the top of the unit to facilitate mounting and the auxiliary connector gives users access to several of the I/O signals, providing the flexibility for external hookup of the beeper, button, and LEDs.
  • Auxiliary connection for external I/O
  • Decodes all standard 1D, RSS-14, RSS Limited, and RSS expanded barcodes
  • Easy mounting integration with a unique profile and dual set of mounting holes
  • Flash upgradeable firmware
  • Fully automatic scanning operation
  • OPOS and JPOS system compatible
  • Single-line mode
  • Small form factor
  • Sweet-spot mode for ideal mounting location
  • User-replaceable, single cable interface to host

Additional Information

Manufacturer Metrologic
Color Black
Scanner Type Omnidirectional
Form Factor Fixed Mount
Scanner Capability 1D
Connectivity Corded
Scan Pattern Area
Item Condition New
Included Cables RS-232 Serial
Ruggedness General Purpose

Recommended Accessories

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern:
    • Omni-directional
    • Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • RSS-14
    • RSS
    • RSS-Expanded
    • RSS-14
    • RSS
    • RSS-Expanded
  • Maximum Scan Resolution: 5 mil
  • Depth of Field: 1" - 11"@13 mil

General Information

  • Product Type: In-counter Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: IS3480
  • Product Name: QuantumE IS3480 Barcode Reader
  • Product Line: QuantumE

Physical Characteristics

  • Height: 2.7"
  • Width: 2.5"
  • Depth: 2"
  • Color: Black
  • Weight (Approximate): 6.08 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Package Contents:
    • Quantum E IS3480 Barcode Reader
    • 110V AC Power Supply
    • Quantum E IS3480 Barcode Reader
    • 110V AC Power Supply
  • Certifications & Standards:
    • Laser Class
    • Class 1; IEC60825-1:1993/A1:1997+A2:2001
    • Class 1; EN60825-1:1994/A11:1996+A2:2001
    • EMC
    • FCC
    • ICES-003
    • EN55022 Class A

Power Description

  • Input Voltage: 5 V DC
