Additional Information
| Form Factor | Presentation |
|---|---|
| Manufacturer AIDC | Metrologic |
| Model Name | MS3580 QuantumT |
| Scanner Capability | 1D |
| Scanner Type | Laser, Omnidirectional |

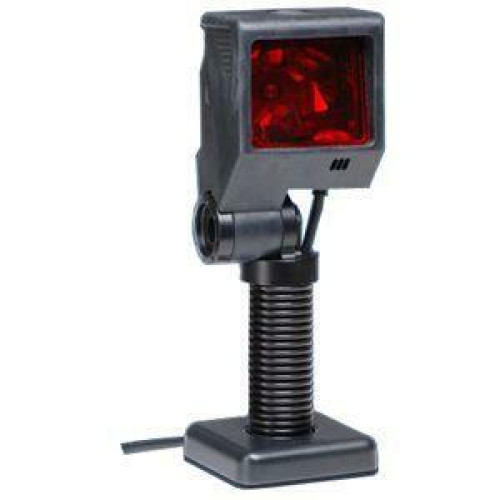

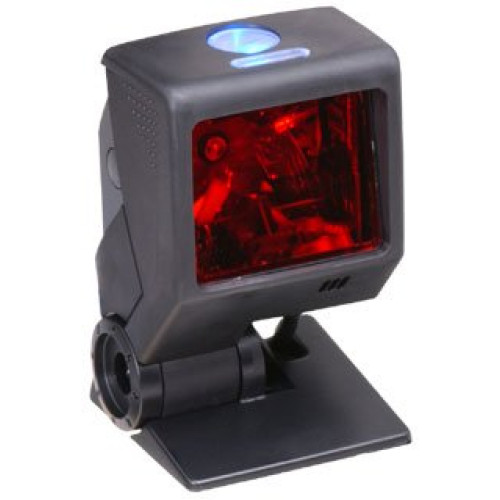

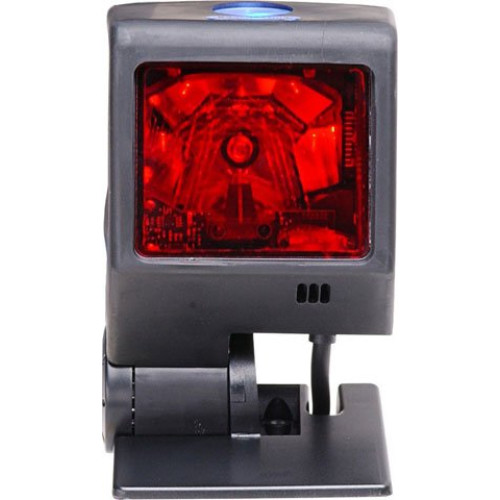

Metrologic MS3580 QuantumT Specs
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Scan Pattern:
- Omni-directional
- 2D Raster
- Single Line
- Connectivity Technology: Cable
- Light Source: Laser
- Barcode Symbology Supported:
- All Standard 1D Symbologies
- RSS-Expanded
- RSS-14
- RSS-14 Limited
- All Standard 1D Symbologies
- RSS-Expanded
- RSS-14
- RSS-14 Limited
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 2" - 4"@5.20 mil
- 1" - 8"@7.50 mil
- 1" - 10"@10.40 mil
- 1" - 11"@13 mil
- 1" - 12"@19.50 mil
General Information
- Product Type: In-counter Barcode Scanner
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: MS3580
- Product Name: QuantumT MS3580 Barcode Reader
- Product Line: QuantumT
Physical Characteristics
- Height: 4.3"
- Width: 2.7"
- Depth: 2.6"
- Color: Black
- Weight (Approximate): 6 oz
Interfaces/Ports
- Host Interface: Keyboard Wedge
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- WEEE
- Package Contents:
- QuantumT MS3580 Barcode Reader
- Keyboard Wedge Cable
- Rubber Boot with weighted Flexible Stand
- Mountable Plastic Base
- QuantumT MS3580 Barcode Reader
- Keyboard Wedge Cable
- Rubber Boot with weighted Flexible Stand
- Mountable Plastic Base
- Certifications & Standards:
- Laser Class:
- Class 1
- IEC60825-1:1993/A1:1997+A2:2001
- Class 1
- EN60825-1:1994/A11:1996+A2:2001
- EMC:
- FCC Class B
- RoHS
- WEEE
- Additional Information: 9 ft Keyboard Wedge Cable
Power Description
- Input Voltage: 5 V DC
Recommended Accessories for Model: Metrologic MS3580 QuantumT Barcode Scanner
-
Honeywell Cables Cables, Connectors, and Adapters
Part #: 59-59000-3 | SKU: HON83560RS-232, black, DB-9, 2.9m (9.5'), straight, 5V external powerMSRP: $25.03 Price: $22.92 -
Honeywell 1400g Power Device
Part #: 46-00525-6 | SKU: HON453630Accessory, Honeywell Power Supply, 1A Output Current, 90 to 255 AC Input Voltage, North American Plug, Compatible with Select Honeywell Scanners.MSRP: $67.06 Price: $48.64 -
Honeywell MS3580 QuantumT Accessory
Part #: 46-00289 | SKU: HON28766Flex Stand for the QuantumT MS3580. 15cm (6") flex pole with mountable base for MS3580 QuantumT. This item is Non-Cancelable/Non-Returnable.MSRP: $53.75 Price: $40.02 -
Honeywell MS3580 QuantumT Accessory
Part #: 46-00288 | SKU: HON31899Stand, 3 Inch, Square Base, for the Quantum Scanner. Non-Cancelable/Non-Returnable.MSRP: $54.26 Price: $40.31 -
Honeywell Cables Cables, Connectors, and Adapters
Part #: 59-59002-3 | SKU: HON83564Keyboard Wedge, black, 2.4m (7.9'), straight, 5V external powerMSRP: $45.49 Price: $35.41
Recommended Warranties for Model: Metrologic MS3580 QuantumT Barcode Scanner
-
Honeywell MS3580 QuantumT Service Contract
Part #: SVC3580-5WTR | SKU: HON3634013580, Wear & Tear only, 5 Day Turn, 1 year renewal, (10 unit min)MSRP: $15.00 Price: $14.62 -
BCI TRUESUPPORT-BAS-SCAN-1YR Service Contract
Part #: TRUESUPPORT-BAS-SCAN-1YR | SKU: BCI634638TrueSupport Basic Plan for Scanners - 1 Year - Includes: Hardware Help Desk Support, RMA Triage, OEM Service contract mgmt.Price: $18.20 -
Honeywell MS3580 QuantumT Service Contract
Part #: SVC3580-EXW1R | SKU: HON499292SERVICE CONTRACT, 3580, BASIC, 10-15 DAY TURN, 1 YEAR RENEWAL OR POSTSALES CONTRACT, (20 UNIT MINIMUM)MSRP: $17.43 Price: $13.38 -
Honeywell MS3580 QuantumT Service Contract
Part #: SVC3580-EXW4 | SKU: HON499293SERVICE CONTRACT, 3580, BASIC, 10-15 DAY TURN, 4 YEARS (3 YR FACTORY WARRANTY + 1 YR EXTENDED), (20 UNIT MINIMUM)MSRP: $14.06 Price: $10.65 -
Honeywell MS3580 QuantumT Service Contract
Part #: SVC3580-EXW5 | SKU: HON499294SERVICE CONTRACT, 3580, BASIC, 10-15 DAY TURN, 5 YEARS (3 YR FACTORY WARRANTY + 2 YR EXTENDED), (20 UNIT MINIMUM)MSRP: $28.13 Price: $21.32
