48909 Metrologic

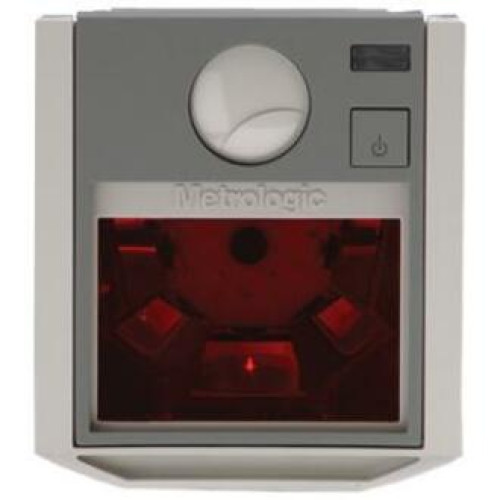

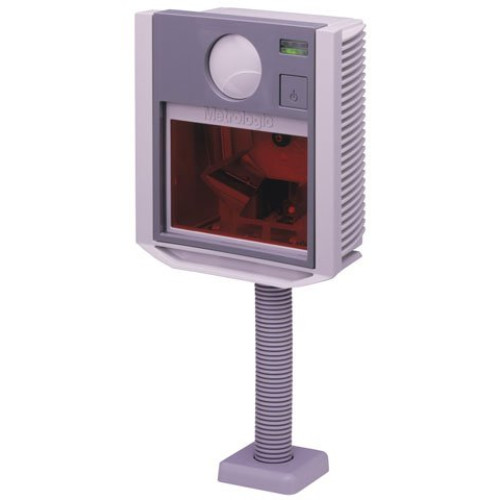

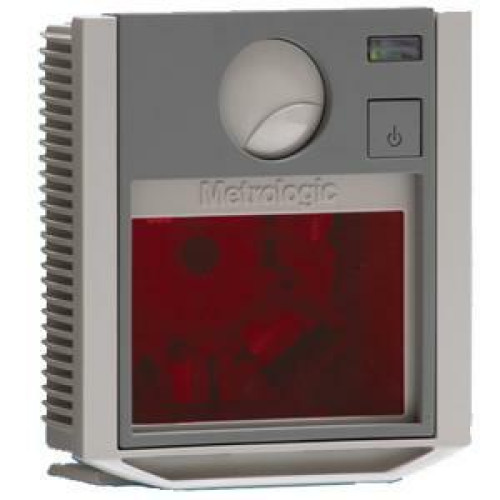

MK7320-71C47 - Metrologic MS7320 InVista Bar code Scanner

MS7320 InVista, Scanner (Keyboard wedge, 220V and Stand) - Color: Gray
Free Shipping


The Metrologic MS7320 InVista offers an outstanding combination of features versatility performance and durability. This fixed mount laser bar code scanner provides ease of use and high throughput speeds by featuring a large dynamic and aggressive scan volume. MS7320 InVista scanners are sure to provide a positive influence on the productivity of your check out operations by minimizing operator effort and increasing check out speed. Each MS7320 InVista is shipped with an integrated EAS deactivation antenna that provides simultaneous scanning and deactivation of security tags which are used to reduce shrink in retail applications. With a field-replaceable outer window damaged windows can now be changed easily eliminating the need to send the entire unit back for repair. The small footprint takes up minimal counter space while maximizing flexibility with the use of the multi-positioning stand. The setup and integration are simplified by using bar code menus or Windows based software. Supporting multiple interfaces MS7320 InVista is compatible with almost every POS system currently on the market. The RS232 auxiliary port allows for handheld scanners or other peripherals to be connected quickly and easily. With all of the outstanding features end-users are ensured this scanner will meet the present and future needs of the scanning environments for which it is designed - grocery stores convenience stores supermarkets pharmacies and specialty stores.
  • Automatic Scanning Operation
  • Custom edit the barcode data
  • EAS deactivation antenna is standard
  • Firmware updates via Flash ROM
  • OPOS and JPOS system compatable
  • Powerlink, user replaceable cables
  • Supports commonly used interfaces including USB and Keyboard wedge

Additional Information

Manufacturer Metrologic

Technical Information

  • Form Factor: Fixed Mount Scanner
  • Symbologies Supported: All Standard Symbologies
  • Scanner Type: Laser
  • Scan Rate: 2000 lps
  • Interface Options: Keyboard Wedge
  • Scan Pattern: Omnidirectional
  • Input Voltage: 220 V AC
  • Depth of Field:
    • 0.0 - 8.5"@13mils
    • 0 - 1"@5.2mils
    • 0 - 5"@7.5mils

General Information

Physical Characteristics

  • Dimensions:
    • 7.3" (185.42mm) x 6.6" (167.64mm) x 3.9" (99.06mm)
    • 7.3" (185.42mm) x 6.6" (167.64mm) x x 3.9" (99.06mm)
  • Weight: 2.65 lb (1.2 kg)
  • Color: Gray

Agency Approvals

  • Agency Approvals:
    • FCC
    • ICES-003
    • EN55022 Class A
    • CDRH Class IIa
    • EN60825-1:1994A11:1996 Class A


  • Package Contents:
    • Flex Stand
    • Power Supply 220V
  • Cables Included: Keyboard Wedge

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95%


  • Manufacturer Warranty: 3 Year(s)
