Newer Version Is Available

MS7600, RS-232 kit. Includes RS-232 cable, power supply, stainless steel top & standard glass. Non-Cancelable/Non-Returnable.
$757.00 $484.40
Ships In 3-5 Days
Free Shipping
- +

Product was successfully added to your shopping cart.
1790 Metrologic

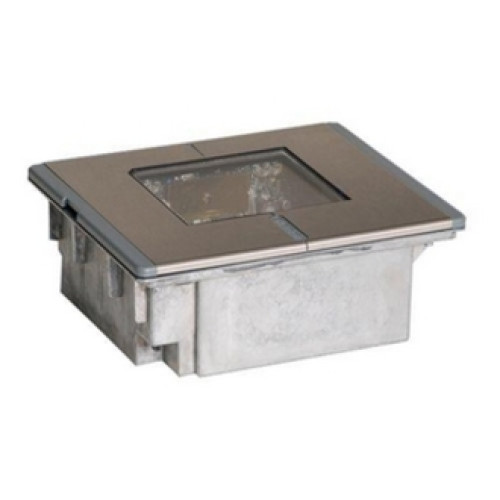

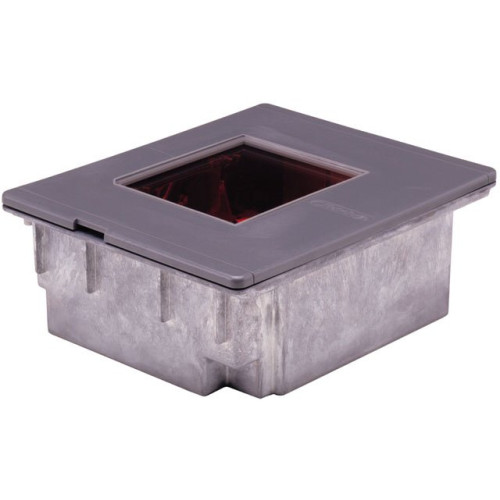

MK7625-71B41 - Metrologic MS7600 Bar code Scanner

MS7600, RS-232 kit. Includes RS-232 cable, power supply, stainless steel top & standard glass. Non-Cancelable/Non-Returnable.
InStock
Free Shipping

Description

The Metrologic MS7600 is Metrologic's next generation in-counter laser bar code scanner. This compact hands-free scanner is designed with a dense 20 line omnidirectional scan pattern that helps provide fast efficient throughput with a high first-pass read rate. Each MS7600 is equipped with an integrated EAS deactivation antenna. The EAS security tag designed to reduce shrink is deactivated and the bar code is scanned with a single pass. These simultaneous operations help improve operator comfort and increase throughput. To further enhance operator efficiency and productivity MS7600 is equipped with IR laser activation. This allows the user to wake the unit from a power save or sleep mode and read a bar code instantaneously without any delay. Each MS7600 includes an RS232 auxiliary port that allows for handheld bar code scanners to be connected providing easy scanning of bulky over -sized objects. Other peripherals such as check readers or magnetic stripe readers can also utilize the flexibility of the auxiliary port. The MS7600 also offers multiple interfaces and data editing making it compatible with almost every POS system on the market today. The combination of performance ruggedness and a myriad of features make the Horizon an ideal choice for grocery retail coupon redemption and a multitude of applications.
  • Available with either a stainless steel or a high impact plastic top plate
  • Durable Die-cast construction
  • EAS deactivation antenna is standard
  • Firmware updates via Flash ROM
  • Fully automatic scanning operation
  • OPOS and JPOS system compatible
  • PowerLink, user-replaceable cables

Additional Information

Manufacturer Metrologic
Scanner Type Omnidirectional
Form Factor In Counter
Scanner Capability 1D
Connectivity Corded
Scan Pattern Area
Item Condition New
Included Cables RS-232 Serial
Ruggedness General Purpose

Recommended Accessories

Counter ring for the MS 7620. Non-Cancelable/Non-Returnable.
$103.00 $65.05
Ships In 3-5 Days
Free Shipping
- +
USB Type A PowerLink cable
$15.87
Ships Today
Free Shipping
- +
Power supply, North American plug, 1A output current, 90 to 255 AC input voltage
$33.00 $27.52
Ships Today
Free Shipping
- +

Technical Information

  • Form Factor: In Counter Scanner
  • Barcode Dimension: 1D
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • All Standard 1D Symbologies
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
  • Scanner Type: Laser
  • Scan Rate: 2000 lps
  • Interface Options: RS-232
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage: 5.2 V DC
  • Depth of Field:
    • 0 - 1.5"@5.2mils
    • 0 - 4.5"@7.5mils
    • 0 - 7"@10.4mils
    • 0 - 8"@13mils
    • 0 - 9"@19.5mils

General Information

Physical Characteristics

  • Dimensions:
    • 7.6" (193.04mm) x 9" (228.6mm) x 3.5" (88.9mm)
    • 7.6" (193.04mm) x 9" (228.6mm) x x 3.5" (88.9mm)
  • Weight: 2.88 kg (6.35 lb)
  • Color: Gray

Other

  • Package Contents:
    • Horizon MS7625 Barcode Scanner
    • 110V Power Supply
    • 9-pin Female Straight Cable
    • Manuals
  • Cables Included: RS-232

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95% Non-condensing

Agency Approvals

  • Agency Approvals:
    • IEC 60825-1:1993 + A1:1997 + A2:2001 Class 1
    • FCC
    • ICES-003 & EN55022 Class A
