Additional Information
| Connectivity | Corded |
|---|---|
| Form Factor | Handheld |
| Included Cables | AT/PS2 Keyboard Wedge |
| Interface Options | PS/2 Keyboard Wedge |
| Manufacturer | Metrologic |
| Model Name | MS9520 Voyager |
| Scanner Capability | 1D |
| Scanner Type | Laser |

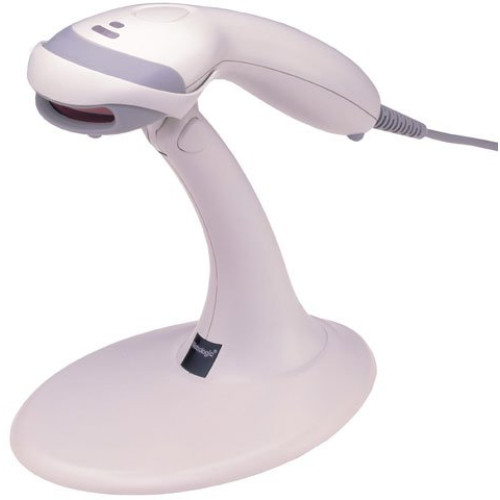

Metrologic MS9520 Voyager Specs
Technical Information
- Barcode Dimension: 1D
- Scan Pattern: Single Line
- Scan Rate: 72 scan/s
- Connectivity Technology: Cable
- Scanning Distance: 8"
- Light Source: Laser
- Barcode Symbology Supported:
- All Standard Symbologies
- RSS
- All Standard Symbologies
- RSS
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 0 mil - 2"@5.20 mil
- 0 mil - 5"@7.50 mil
- 0 mil - 7"@10.40 mil
- 0 mil - 8"@13 mil
- 1" - 10"@21 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: MS9520
- Product Name: Voyager MS9520 Barcode Reader
- Product Line: Voyager
Physical Characteristics
- Height: 7.8"
- Width: 1.8"
- Depth: 1.6"
- Color: White
- Weight (Approximate): 5.26 oz
Interfaces/Ports
- Host Interface: Keyboard Wedge
Other
- Package Contents:
- Voyager MS9520 Barcode Reader
- Power Supply
- Keyboard Wedge Cable
- Voyager MS9520 Barcode Reader
- Power Supply
- Keyboard Wedge Cable
- Certifications & Standards:
- Laser Class:
- Class 1 In accordance with IEC 60825-1:1993+A1:1997+A2:2001
- Class 1 In accordance with EN 60825-1:1994+A11:1996+A2:2001
- EMC:
- FCC Class B
- Platform Supported: PC
- Additional Information:
- Laser Power: 0.96 mW (peak)
- Scan Pattern: Single scan line
- Roll, Pitch, Yaw: 42°, 68°, 52°
- Termination: 10 pin modular RJ45
- DC Transformers: Class 2; 5.2 VDC @ 650 mA
- System Interfaces:
- PC Keyboard Wedge
- RS232
- OCIA
- Light Pen Emulation
- Non-decode Emulation
- IBM 468X/469X
- Stand Alone Keyboard
- USB (low speed and full speed)
Warranty
- Limited Warranty: 5 Year
Power Description
- Input Voltage: 5 V DC
