Additional Information
| Color | Black |
|---|---|
| Connectivity | Corded |
| Form Factor | Handheld |
| Included Cables | USB |
| Included Features | Includes Stand |
| Interface Options | USB |
| Manufacturer AIDC | Honeywell |
| Model Name | MS9540 Voyager |
| Scanner Capability | 1D |
| Scanner Type | CCD, Imager |

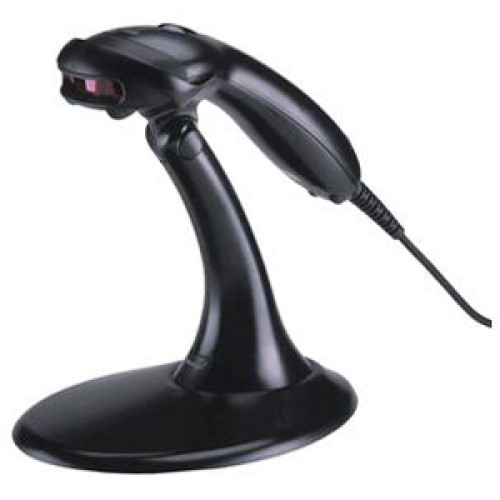

Honeywell MS9540 Voyager Specs
Technical Information
- Barcode Dimension: 1D
- Scan Pattern: Single Line
- Connectivity Technology: Cable
- Light Source: Laser
- Barcode Symbology Supported:
- All Standard Symbologies
- RSS-14
- RSS-Limited
- RSS-Expanded
- All Standard Symbologies
- RSS-14
- RSS-Limited
- RSS-Expanded
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 0 mil - 2"@5.20 mil
- 0 mil - 5"@7.50 mil
- 0 mil - 7"@10.40 mil
- 0 mil - 8"@13 mil
- 1" - 10"@21 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: MS9540
- Product Name: VoyagerCG MS9540 Barcode Reader
- Product Line: VoyagerCG
Physical Characteristics
- Height: 7.8"
- Width: 3.1"
- Depth: 1.6"
- Color: Black
- Weight (Approximate): 5.26 oz
Interfaces/Ports
- Host Interface: USB
Other
- Certifications & Standards:
- Laser Class:
- Class 1 In accordance with IEC 60825-1:1993+A1:1997+A2:2001
- Class 1 In accordance with EN 60825-1:1994+A11:1996+A2:2001
- EMC:
- FCC
- ICES-003
- EN55022 Class B
- Platform Supported: PC
Warranty
- Limited Warranty: 5 Year
