Additional Information
| Connectivity | Corded |
|---|---|
| Form Factor | Handheld |
| Interface Options | PS/2 Keyboard Wedge |
| Manufacturer AIDC | Honeywell |
| Model Name | MS9540 Voyager |
| Scanner Capability | 1D |
| Scanner Type | Laser |

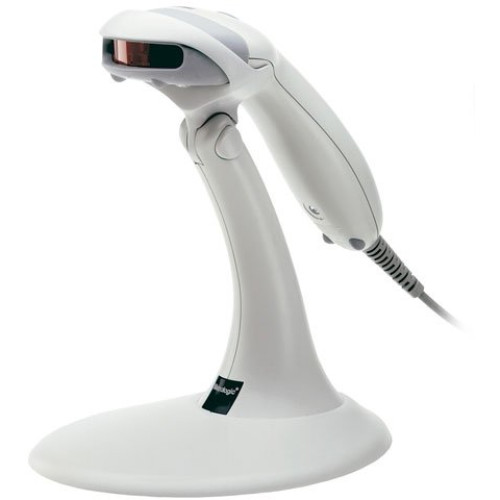

Honeywell MS9540 Voyager Specs
Technical Information
- Form Factor:
- Handheld Scanner
- Hands Free Scanner
- Barcode Dimension: 1D
- Resolution: 5 mil(s)
- Symbologies Supported:
- All Standard 1D Symbologies
- RSS-14
- RSS-Limited
- RSS-Expanded
- Scanner Type: Laser
- Scan Rate: 72 lps
- Interface Options: Verifone Ruby
- Interface Connectivity: Corded
- Scan Pattern: Single Line
- Input Voltage: 5 V DC
- Depth of Field:
- 0 - 2"@5.2mils
- 0 - 5"@7.5mils
- 0 - 7"@10.4mils
- 0 - 8"@13mils
- 1 - 10"@21mils
General Information
- Manufacturer:
- Product Line: Voyager
- Product Name: VoyagerCG MS9540 Barcode Scanner
Physical Characteristics
- Dimensions:
- 7.8" (198.12mm) x 3.1" (78.74mm) x 1.6" (40.64mm)
- 7.8" (198.12mm) x 3.1" (78.74mm) x x 1.6" (40.64mm)
- Weight: 5.25 oz
- Color: Black
Other
- Package Contents:
- VoyagerCG MS9540 Barcode Scanner
- Mask Stand
- 8-pos RJ45 Coiled Cable
- MVC
- Manuals
- Cables Included: Verifone Ruby
Agency Approvals
- Agency Approvals:
- Class 1 IEC 60825-1:1993+A1:1997+A2:2001
- EN 60825-1:1994+A11:1996+A2:2001
- FCC
- EN55022 ClassB
- ICES-003
Environmental Conditions
- Temperature:
- 0°C (32°F) to 40°C (104°F) Operating
- -40°C (-40°F) to 60°C (140°F) Storage
- Humidity: 5 to 95% Non-condensing
