7697 Metrologic

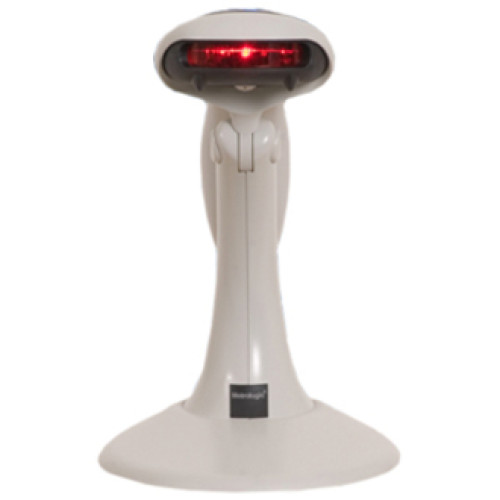

MK9544-72B41 - Metrologic MS9544 VoyagerPDF Bar code Scanner

MS9544 VoyagerPDF, RS-232 kit. Includes PDF417 scanner, RS-232 cable, power supply, stand, CodeGate & manual. Color: white.
Free Shipping


With a futuristic design and high-performance scanning technology the MS9544 VoyagerPDF is equipped with all of the features of the MS9520 Voyager with the addition of Metrologic's exclusive CodeGate data transmission technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications including Point-of-Sale document processing inventory and menu scanning just to name a few. CodeGate works hand in hand with Metrologic's automatic-triggering scheme. Simply present a bar code to the scanner; place the high-visibility laser line on the bar code then press the CodeGate button to transmit the data to the host system. It's as easy as one two three! Equipped with both In-Stand and Out-of-Stand operation Voyager can be used as both a handheld and fixed projection scanner. While resting in the stand the CodeGate button is deactivated making VoyagerCG a presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n' Pieces data editing utility and an Electronic Article Surveillance (EAS) option. With aggressive performance and lightweight design VoyagerCG is far and away the most advanced scanner on the market today!
  • Adjustable stand with auto stand detect
  • Automatic trigger operation
  • Bright easy to see, easy to aim laser line
  • CodeGate ideal for menu scanning on the MS9544
  • Decodes 1D and 2D (including RSS, PDF417, PDF417 truncated, MicroPDF and macroPDF) barcodes
  • User-replaceable, single cable interface to host

Additional Information

Manufacturer Metrologic

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • All Standard 1D Symbologies
    • RSS-14
    • PDF 417
    • Truncated PDF417
    • Micro PDF
    • MacroPDF
  • Scanner Type: Laser
  • Scan Rate: 180 lps
  • Interface Options: RS-232
  • Interface Connectivity: Corded
  • Scan Pattern: Single Line
  • Input Voltage: 5.2 V DC
  • Depth of Field:
    • 0.5 - 2"@5.2mils
    • 0 - 5"@7.5mils
    • 0 - 7"@10.4mils
    • 0 - 8"@13mils
    • 1 - 10"@21mils
    • 1 - 6"@10mils - PDF 417
    • 1 - 7"@15mils - PDF 417

General Information

Physical Characteristics

  • Dimensions:
    • 7.8" (198.12mm) x 3.1" (78.74mm) x 1.6" (40.64mm)
    • 7.8" (198.12mm) x 3.1" (78.74mm) x x 1.6" (40.64mm)
  • Weight: 149 g
  • Color: Gray


  • Package Contents:
    • VoyagerPDF MS9544 Barcode Scanner
    • 110 V Power Supply
    • Mask Stand
    • Coiled Cable
    • Manuals
  • Cables Included: RS-232

Agency Approvals

  • Agency Approvals:
    • Class 1 IEC 60825-1:1993+A1:1997+A2:2001
    • Class 1 EN 60825-1:1994+A11:1996+A2:2001
    • FCC
    • ICES-003
    • EN55022 Class B

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95% Non-condensing
