35998 Metrologic

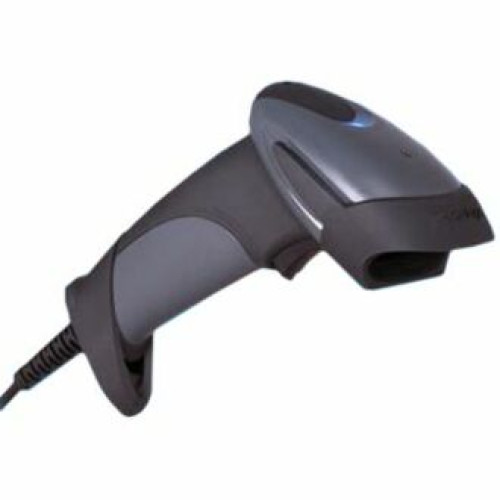

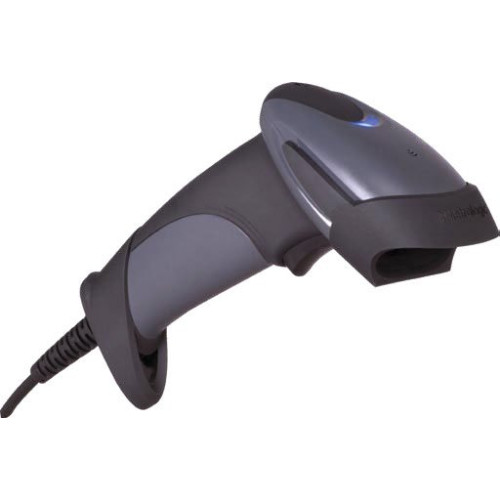

MK9590-61B14 - Metrologic VoyagerGS 9590 Bar code Scanner

VoyagerGS 9590, RS-232 Kit. 1D Scanner, stand, coiled RS-232 PowerLink cable. Color: Dark gray.
InStock
Free Shipping

Description

VoyagerGS 9590 can be configured at no cost by using either the MetroSelect Single-Line Configuration Guide or MetroSet2 software via a RS232 or USB interface. The VoyagerGS 9590 also has the ability to format barcode data to meet the specific requirements of host systems
  • Durable Construction - Reduces downtime and service costs
  • Optional EAS Integration - Increases efficiency by simultaneously deactivating EAS tags and decoding barcodes
  • Ergonomic Design - Fit comfortably into a wide range of hand sizes
  • 100 scans per second - Improves scan aggressiveness with increased scanning speed
  • Automatic in-stand detection - Allows seamless transition from handheld to presentation mode scanning

Additional Information

Manufacturer Metrologic
Scanner Type Laser
Form Factor Handheld
Scanner Capability 1D
Connectivity Corded
Scan Pattern Single Line
Ruggedness General Purpose

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128
    • UPC/EAN/JAN
    • Code 2 of 5
    • Code 11
    • Codabar
    • MSI Plessey
    • GS1 DataBar
    • Telepen
    • Trioptic
    • Code 39
    • Code 93
    • Code 128
    • UPC/EAN/JAN
    • Code 2 of 5
    • Code 11
    • Codabar
    • MSI Plessey
    • GS1 DataBar
    • Telepen
    • Trioptic
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 3.27" - 4.25"@5.20 mil
    • 1.50" - 7.01"@7.50 mil
    • 1.26" - 10"@10.40 mil
    • 0 mil - 12.01"@13 mil
    • 0.47" - 17.52"@26 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS9590
  • Product Name: VoyagerGS MS9590 Handheld Barcode Reader
  • Product Line: VoyagerGS

Physical Characteristics

  • Height: 3.9"
  • Width: 2.6"
  • Depth: 6.3"
  • Color: Gray
  • Weight (Approximate): 5.29 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Additional Information: Supported Interface:

Warranty

  • Limited Warranty: 5 Year
