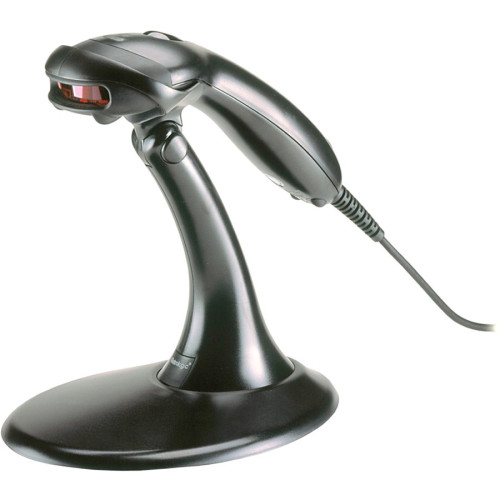

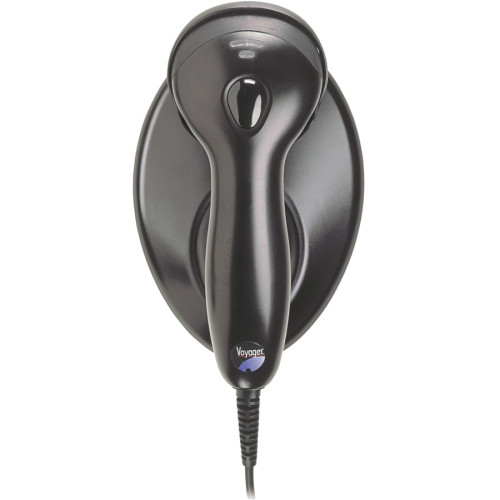

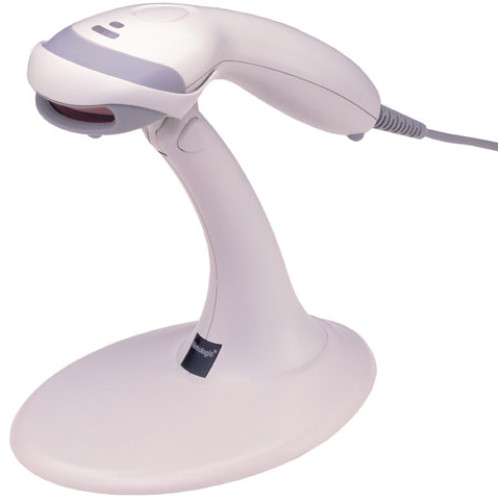

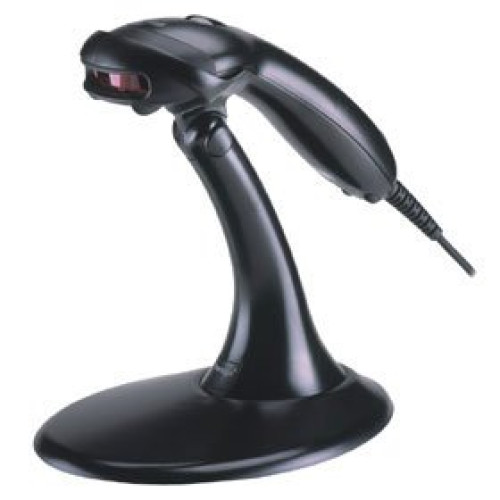

Metrologic MS9520 Voyager Barcode Scanner
Part #: MS9520-40-3 | SKU: MET210555

With a futuristic design and high-performance scanning technology the MS9520 Voyager is clearly the most advanced auto-triggered scanner on the market today. Enabled for both In-stand and Out-of-stand operation Voyager can be used as a handheld and fixed presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n' Pieces data editing utility and an Electronic Article Surveillance (EAS) option. The MS9520 Voyager Voyager is perfect for many applications including point-of-sale inventory control and commercial-warehouse applications. With its aggressive performance and comfortable design Voyager is far and away the most advanced scanner on the market today.

Metrologic MS9520 Voyager Barcode Scanner

Part Details: MS9520 Voyager, SCANNER ONLY, 1D Laser. Color: Black. Cables and accessories must be purchased separately. For the full kit purchase (Part# MK9520-32A38).

Additional Information

Connectivity Corded
Form Factor Handheld
Manufacturer Metrologic
Model Name MS9520 Voyager
Ruggedness General Purpose
Scan Pattern Single Line
Scanner Capability 1D
Scanner Type Laser

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Reads standard 1D and GS1 DataBar symbologies
    • Linear:
    • ABC Codabar (American Blood Commission)
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omnidirectional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • Stacked:
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omnidirectional
    • Reads standard 1D and GS1 DataBar symbologies
    • Linear:
    • ABC Codabar (American Blood Commission)
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omnidirectional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • Stacked:
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omnidirectional
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0.50" - 2"@5.20 mil
    • 0 mil - 5"@7.50 mil
    • 0 mil - 6.50"@10.40 mil
    • 0 mil - 6.50"@13 mil
    • 0 mil - 6.50"@21 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS9520
  • Product Name: Voyager MS9520 Handheld Barcode Reader
  • Product Line: Voyager

Physical Characteristics

  • Height: 2.2"
  • Width: 3.1"
  • Depth: 7.8"
  • Color: Black
  • Weight (Approximate): 5.30 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS

Warranty

  • Limited Warranty: 5 Year
Extended Details
