Additional Information
| Connectivity | Corded |
|---|---|
| Form Factor | Handheld |
| Included Cables | Scanner Only - No Cable |
| Interface Options | Serial |
| Manufacturer | Honeywell |
| Model Name | MS9540 Voyager |
| Scanner Capability | 1D |
| Scanner Type | Laser |

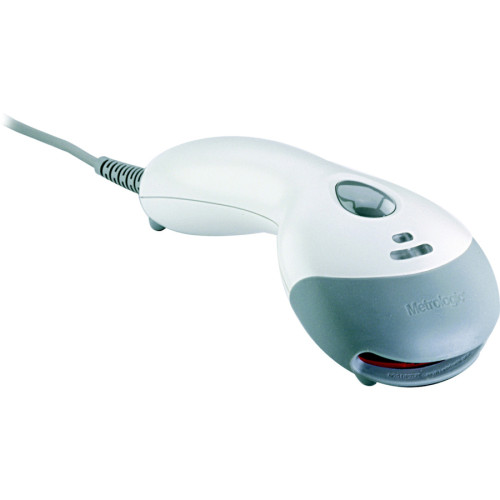

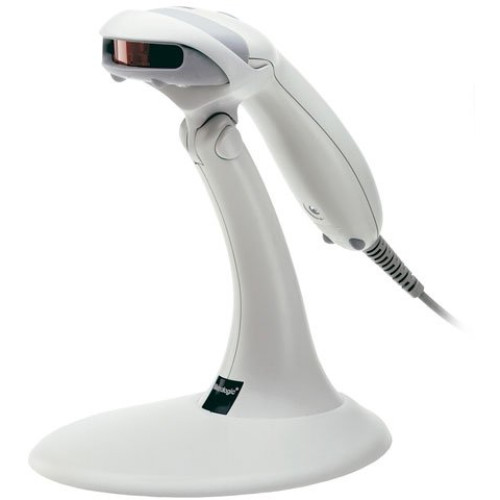

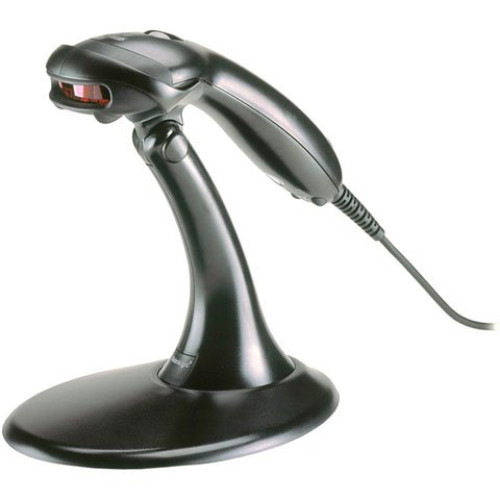

Honeywell MS9540 Voyager Specs
Technical Information
- Barcode Dimension: 1D
- Scan Pattern: Single Line
- Connectivity Technology: Cable
- Light Source: Laser
- Barcode Symbology Supported:
- Linear:
- China Post
- Codabar (NW7)
- Code 11
- Code 128
- Code 32
- Code 39
- Code 93 and 93i
- Code 2 of 5
- EAN
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI
- Plessey
- GS1 DataBar (formerly RSS)
- Telepen
- Trioptic Code
- UPC
- Stacked:
- GS1 Composite (Formerly EAN/UCC)
- Linear:
- China Post
- Codabar (NW7)
- Code 11
- Code 128
- Code 32
- Code 39
- Code 93 and 93i
- Code 2 of 5
- EAN
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI
- Plessey
- GS1 DataBar (formerly RSS)
- Telepen
- Trioptic Code
- UPC
- Stacked:
- GS1 Composite (Formerly EAN/UCC)
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 0.50" - 2"@5.20 mil
- 0 mil - 5"@7.50 mil
- 0 mil - 6.50"@10.40 mil
- 0 mil - 8"@13 mil
- 1" - 10"@21 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: MS9540
- Product Name: VoyagerCG MS9540 Handheld Barcode Reader
- Product Line: VoyagerCG
Physical Characteristics
- Height: 7.8"
- Width: 3.1"
- Depth: 1.6"
- Color: Black
- Weight (Approximate): 5.25 oz
Interfaces/Ports
- Host Interface: Serial
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- WEEE
Warranty
- Limited Warranty: 5 Year
