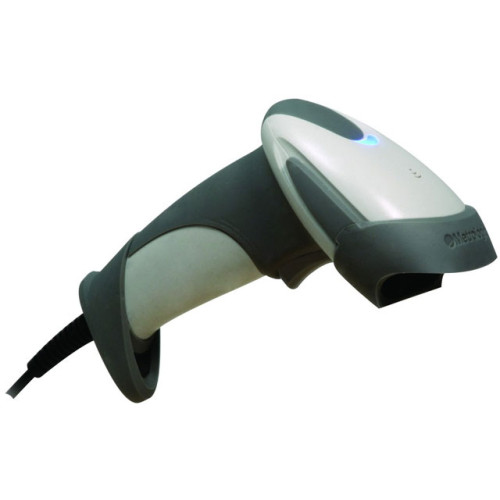

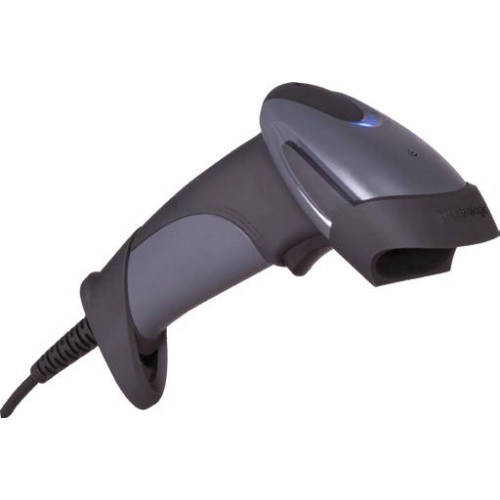

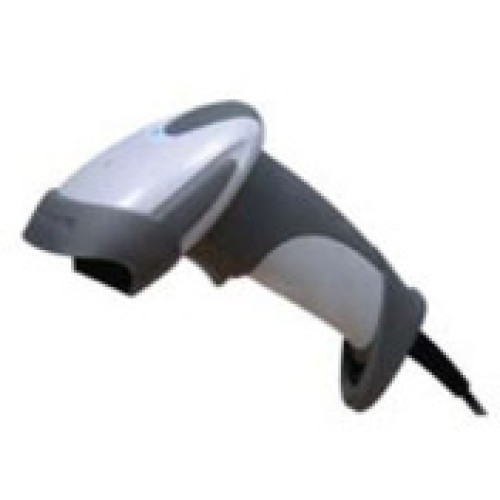

Metrologic MS9590 Voyager GS Barcode Scanner
Part #: MS9590-14-7 | SKU: MET210545

MS9590 Voyager GS can be configured at no cost by using either the MetroSelect Single-Line Configuration Guide or MetroSet2 software via a RS232 or USB interface. The MS9590 Voyager GS also has the ability to format barcode data to meet the specific requirements of host systems

Metrologic MS9590 Voyager GS Barcode Scanner

Part Details: VoyagerGS 9590, SCANNER ONLY. 1D Scanner. RS-232 interface. Color: Light Gray. For the full kit see (Part# MK9590-61B14). Non-Cancelable/Non-Returnable.

Additional Information

Connectivity Corded
Form Factor Handheld
Manufacturer Metrologic
Model Name MS9590 Voyager GS
Ruggedness General Purpose
Scan Pattern Single Dot
Scanner Capability 1D
Scanner Type Laser

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Linear:
    • China Post
    • Codabar (NW7)
    • Code 11
    • Code 128
    • Code 2 of 5
    • Code 32
    • Code 39
    • Code 93 and 93i
    • EAN
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MSI
    • Plessey
    • GS1 DataBar (Formerly RSS)
    • Telepen
    • Trioptic Code
    • UPC
    • Stacked:
    • GS1 Composite (formerly EAN/UCC)
    • Linear:
    • China Post
    • Codabar (NW7)
    • Code 11
    • Code 128
    • Code 2 of 5
    • Code 32
    • Code 39
    • Code 93 and 93i
    • EAN
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MSI
    • Plessey
    • GS1 DataBar (Formerly RSS)
    • Telepen
    • Trioptic Code
    • UPC
    • Stacked:
    • GS1 Composite (formerly EAN/UCC)
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 3.30" - 4.30"@5.20 mil
    • 1.50" - 7"@7.50 mil
    • 1.30" - 10"@10.40 mil
    • 0 mil - 12"@13 mil
    • 0.50" - 17.50"@26 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS9590
  • Product Name: VoyagerGS MS9590 Handheld Barcode Reader
  • Product Line: VoyagerGS

Physical Characteristics

  • Height: 3.9"
  • Width: 2.6"
  • Depth: 6.3"
  • Color: Light Gray
  • Weight (Approximate): 5.30 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE

Warranty

  • Limited Warranty: 5 Year
