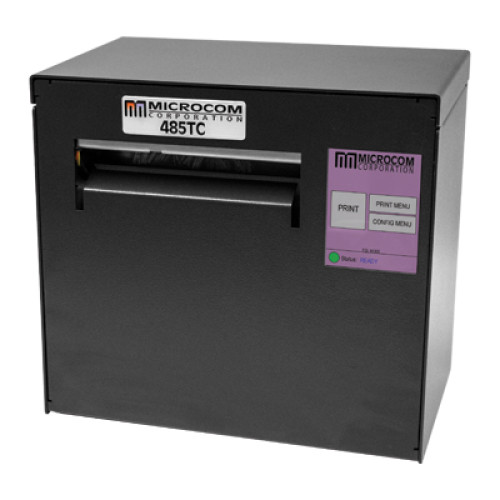

Microcom 485TC Barcode Label Printer
Part #: 026845-1300 | SKU: MIC755293

Microcom 485TC Ticket Printer

Industrial quality ticket, tag, and label thermal printer. Hassle-free ticketing printing for any box-office application.

Hassle-free Ticketing Printer

The 485TC is an industrial quality thermal ticket printer capable of handling any box-office application. From single tickets to large batch printing, this model easily manages any job thrown its way. It’s compatible with most ticketing software on the market, making the integration process simple for the user. The printer can print on various styles (continuous and fanfold paper up to .013” thick) and widths of tickets (from 1.5” to 4.375”), so there’s no need to change existing ticket stock.

Application Overview:

• Live Event Ticketing
• Admissions Processing
• Box-Office
• Voucher Issue
• Transportation
• Parking

Bigger is not always better! We’ve taken the amazing characteristics of our legacy printers, added some powerful new features, and squeezed them into the minuscule footprint of the model 485TC. Microcom’s emulation of the ticketing industry’s most common print language and a Windows print driver provide quick and easy integration.

Key Features include:

• Serial, USB, and Ethernet connectivity
• 3” touchscreen display
• Compact footprint
• Automatic self feed
• Optional cutter and catch trays
• 100% duty cycle printing
• Field replaceable wear parts

Performance Summary

• 203 or 300 dpi resolution
• Up to 8” (200 mm) per second print speed
• Auto loading capability
• Microsoft Windows® driver
• Emulation: FGL
• Adjustable black line sensor configurable to sense left or right edge, bottom or top of media
• Industrial cabinet
• 3” touchscreen display
• Serial, USB, and Ethernet interface
• Optional high reliability rotary cutter
• Host USB port for offline code updates
• Software controlled print contrast adjustment
• Self-centering and locking media guides

Bar Codes

• Code 39
• Codabar
• Interleaved 2 of 5
• Aztec
• EAN13
• EAN8
• UPC
• Softstrip
• Code 128
• PDF-417
• GS1 DataMatrix (ECC 200)
• QR
• And many more

Fonts

• 16 Resident fonts including OCR-A and OCR-B
• Downloadable scalable fonts
• All fonts expandable in height and width
• 0, 90, 180, and 270 degrees font and bar code printing

Printing

• Direct thermal, on-demand label/ticket and batch mode printing
• Paper width: 1.5”- 4.375” (38.1 mm-111 mm)
• Print width: up to 4.26” (108.2 mm)
• Paper thickness: up to .013” (.33 mm)
• Prints on continuous roll, fan-folded paper, and event tickets

Memory

• Up to 512MB Flash
• Up to 256MB RAM

Physical Dimensions

• Height: 7.4” (188 mm)
• Width: 8.1” (205 mm)
• Depth: 5.8” (148 mm)
• Weight: 10.3 lbs. (4.7 kg)

Environmental Conditions

• Relative humidity: 10-85% non-condensing
• Operation temperature: 40° F to 104° F (5° C to 40° C)
• Power supply: Internal supply with auto-sensing; 90-264 VAC, 3.5/1.5 A, 47-63 Hz

Compliance

• RoHS
• FCC Class A
• cTUVus

Warranty

One year limited warranty

This product is RoHS compliant.

Microcom 485TC Optional Features

• Industrial Quality Rotary Cutter
• Supply Roll Holder
• Catch Tray
