Quadrus Verifier
Plant-Ready Data Matrix Verifier
Quadrus Verifier is an ISO/IEC 15415 and AS9132A-compliant Data
Matrix verifier for use in production environments. It is an
ISO/IEC 15426-2 certified Data Matrix verifier, ensuring that your
marks will be verified accurately every time.
Unlike most verifiers that are mounted on scientific stands
designed for the lab, the Quadrus Verifier is a fully-contained,
compact device that is easy to integrate into a plant-floor
setting. Quadrus Verifier?s fully enclosed illumination chamber
provides the controlled lighting environment necessary for
accurate, repeatable verification. No on-site calibration of optics
or lighting is needed to verify marks with Quadrus Verifier. Simply
present the part to Quadrus Verifier, trigger, and receive the
symbol verification report.
ISO/IEC 15426-2 Certified
Quadrus Verifier is ISO/IEC 15426-2 Certified. It is precisely
engineered to meet rigorous verification standards, ensuring
accurate and consistent verification.
What is ISO/IEC 15426-2 and why is it important?
ISO/IEC 15426-2 is a Verifier conformance standard that?s
referenced in the Introduction of the ISO/IEC 15415 specification;
paragraph seven. Using a Data Matrix Verifier that conforms to this
standard is important because it ensures consistency amongst
Verifiers used at two or more different times or locations The
Quadrus Verifier is the only Data Matrix Verifier available that
meets this strict conformance guideline.
ISO/IEC 15415 Compliant
Quadrus Verifier provides verification of 2D
symbols for all parameters:
| Symbol contrast | Print growth (not graded) |
| Fixed pattern damage | Reference decode |
| Modulation | Axial non-uniformity algorithms |
| Unused error correction | Grid non-uniformity |
AS9132A
Verifies directly-marked Data Matrix symbols in accordance with the
parameters called out in the AS9132A standard:
| Quiet zone | Dot center offset |
| Dotovality | Angle of distortion |
| Cell fill | Symbol type |
| Contrast |
MIL-STD-130M
Requires verification of Data Matrix symbols to both ISO/IEC 15415
and AS9132A standards as required by the MIL-STD-130M
specification.
Plant-Floor Ready

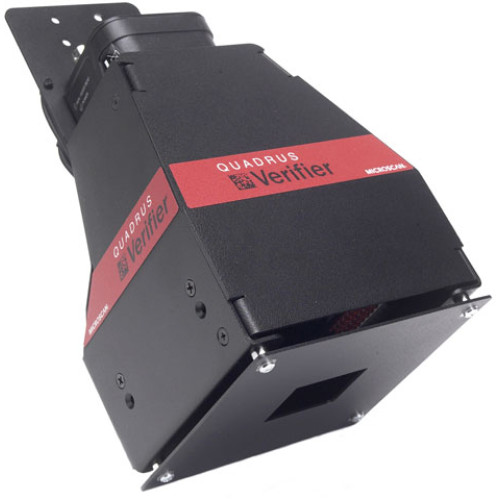

Quadrus Verifier is the first 2D verifier designed specifically for
use in a production plant environment. Its compact, lightweight
design makes the Quadrus Verifier easy to integrate into production
processes. A self-contained, factory-calibrated system with
flexible mounting allows the Quadrus Verifier to be adapted to any
application quickly and easily.
Factory Calibrated System
Quadrus Verifier provides the user with a ready-to-use, ISO/IEC
15426-2 compliant, calibrated system. Simply center a symbol in the
field of view and trigger a read cycle, and Quadrus Verifier will
output the results. The user is not required to focus the optics or
set the light angles. Fixed optics and pre-set illumination angles
make Quadrus Verifier consistent, reliable, and accurate.
Illumination Chamber
The chamber is specifically engineered to produce the illumination
angles required by the ISO/IEC 15415 standard.
Symbologies:
Quadrus Verifier is specifically engineered to verify 2D Data
Matrixcodes.
-
Microscan Quadrus Verifier Barcode Verifier
Part #: FIS-6700-1000G | SKU: MIC20388Verifier, DataMatrix, CCD, Field of View .49 x .37 (12.5 x 9.4 mm), RS232/Ethernet This product is non-returnable / non-cancelable. -
Microscan Quadrus Verifier Barcode Verifier
Part #: FIS-6700-1001G | SKU: MIC20389Verifier, DataMatrix, CCD, Field of View .66 x .5 (16.8 x 12.7 mm), RS232/Ethernet This product is non-returnable / non-cancelable. -
Microscan Quadrus Verifier Barcode Verifier
Part #: FIS-6700-1002G | SKU: MIC20390Verifier, DataMatrix, CCD, Field of View .82 x .62 (20.8 x 15.7 mm), RS232/Ethernet This product is non-returnable / non-cancelable. -
Microscan Quadrus Verifier Barcode Verifier
Part #: FIS-6700-1003G | SKU: MIC20391Verifier, DataMatrix, CCD, Field of View .98 x .74 (24.9 x 18.8 mm), RS232/Ethernet This product is non-returnable / non-cancelable. -
Microscan Quadrus Verifier Barcode Verifier
Part #: FIS-6700-1004G | SKU: MIC20392Verifier, DataMatrix, CCD, Field of View 1.31 x .99 (33.3 x 25.2 mm), RS232/Ethernet This product is non-returnable / non-cancelable.
