model-14610 Motorola

Motorola AP 7522 Access Point

Motorola AP 7522 Access Point

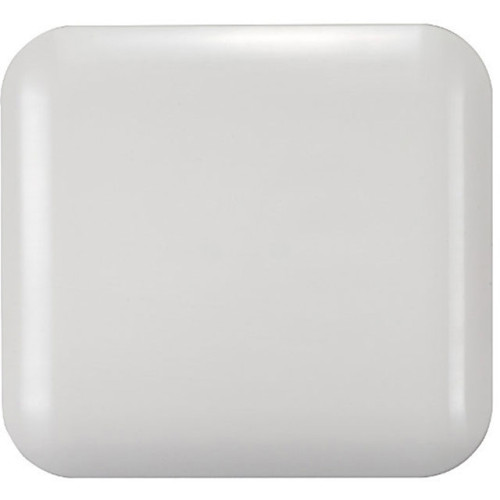

Get 802.11ac speed at a low price point with the AP 7522 access point. The comprehensive feature set and 2X2 MIMO provide all your mobile users with a dependable high-performance wireless connection. With our high-powered radios, you"ll need fewer access points, delivering maximum speed for a minimum cost. And with its sleek, understated look, the internal antenna version of the AP 7522 is at home anywhere in your environment "" including customer-facing public spaces.
Starting at: MSRP: $395.00 Price: $304.88
See all options

ANTENNA SPECIFICATIONS

Connector type

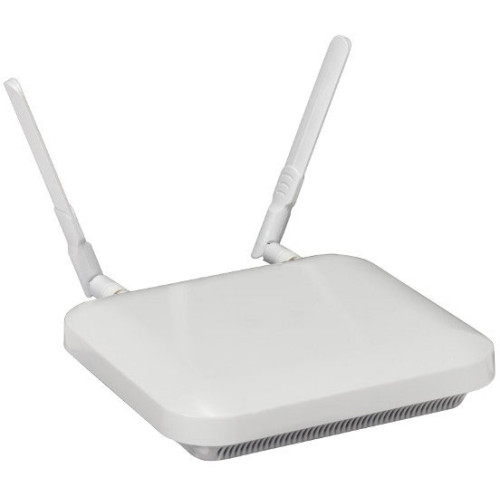

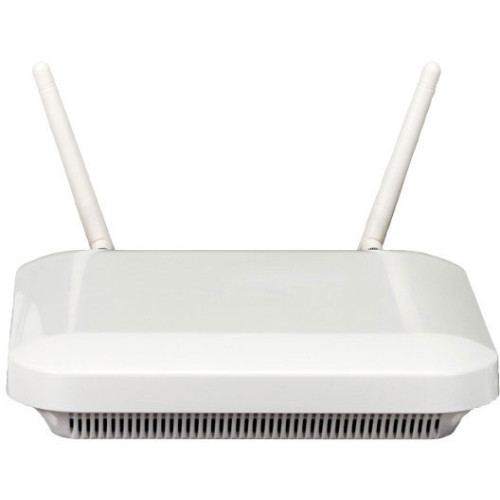

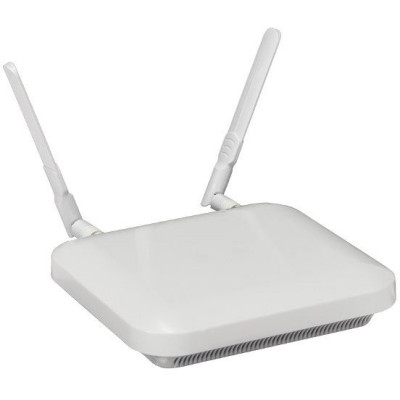

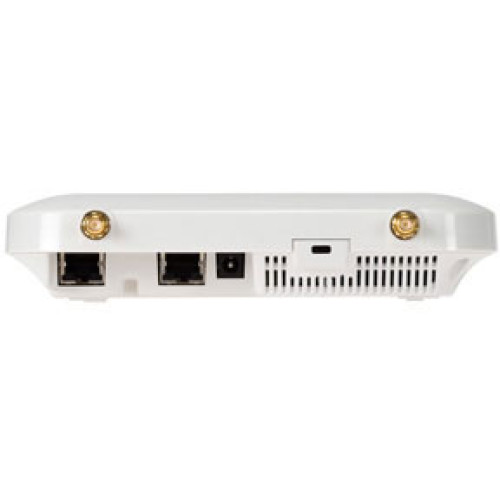

Two RP SMAs (External only - AP-7522-67040-xx)

PHYSICAL CHARACTERISTICS

LEDs

2 top mounted LEDs; activity indication

Housing

Plenum-rated housing (UL2043)

Weight

1.8 lbs / 0.82 kg

Dimensions (HxWxD)

1.6 in. H x 6.5 in. W x 7.1 in. L /41 mm H x 165 mm W x 180 mm L

POWER SPECIFICATIONS

Integrated power over ethernet support

802.3af

Operating current

280 mA at 48V

Operating voltage

48v

RADIO SPECIFICATIONS AND NETWORKING

Operating channels

2.4 GHz band: channel 1 through channel 13 5.2 GHz band: channel 36 through channel 165 * Channel availability depends on local regulatory restriction

QoS

WMM, WMM-UAPSD, 802.1p, Diffserv and TOS)

Data rates supported

802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48 and 54 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11n: MCS 0-23 up to 300 Mbps; Turbo mode (256QAM) on 2.4G band: up to 400Mbps) 802.11ac: MCS 0-9 up to 866.7 Mbps

Security

Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple-Methodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS and secure guest access (hotspot)

Frequency

2412 to 2484 MHz, 5180 to 5850 MHz

Layer 2 and Layer 3

Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE and LLDP

Wireless medium

Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM) and Spatial Multiplexing (MIMO)

Transmit power adjustment

1dB increment

REGULATORY SPECIFICATIONS

EMC

FCC Part 15 Class B, ICES 003 Class B, EN 55024

Radio

EN 300 328, EN 301 893

Electrical safety

UL 60950-1, EN 60950-1, IEC 60950-1, UL2043, cUL 60950-1, RoHS

Radio approval

FCC (USA), EU, TELEC

USER ENVIRONMENT

Electrostatic discharge

15kV air, 8kV contact (Internal AP-7522-67030-xx) 12kV air, 6kV contact (External AP-7522-67040-xx)

Operating humidity

85% RH non-condensing

Operating temperature

Internal antennas: 32° F to 104° F/0° C to 40° C External antennas: -4° F to 104° F/-20° C to 40° C

Storage temperature

-40° F to 158° F/-40° C to 70° C

Extended Details
Refine Your Options
  1. AP-7522-67030-WR - Motorola AP 7522 Access Point

    AP 7522, Dual Radio 802.11ac 2x2: 2 Internal Antenna WR SKU
    MSRP: $595.00 Price: $459.26
    In Stock - Ships Free
  2. AP-7522-67030-US - Motorola AP 7522 Access Point

    AP 7522, Dual Radio 802.11ac 2x2: Internal Antenna US SKU
    MSRP: $595.00 Price: $459.26
    In Stock - Ships Free
  3. AP-7522E-67040-US - Motorola AP 7522E Access Point

    AP 7522E, Express 802.11ac AP, External Antenna US
    MSRP: $395.00 Price: $304.88
    In Stock - Ships Free
  4. AP-7522E-67030-US - Motorola AP 7522E Access Point

    AP 7522E, Express 802.11ac, Internal Antenna US
    MSRP: $395.00 Price: $304.88
    In Stock - Ships Free
  5. AP-7522E-67040-WR - Motorola AP 7522E Access Point

    AP 7522E, Express 802.11ac AP, DUAL RADIO, 2X2: 2 MIMO, EXTERNAL ANTENNA CONNECTORS (ANTENNA SOLD SEPARATELY)
    MSRP: $395.00 Price: $304.88
    In Stock - Ships Free
  6. AP-7522-67040-WR - Motorola AP 7522 Access Point

    AP 7522, Dual Radio 802.11ac 2x2: External Antenna
    MSRP: $595.00 Price: $459.26
    In Stock - Ships Free
  7. AP-7522-67040-US - Motorola AP 7522 Access Point

    AP 7522, Dual Radio 802.11ac 2x2 External Antenna US SKU
    MSRP: $595.00 Price: $459.26
    In Stock - Ships Free
  8. AP-7522E-67030-WR - Motorola AP 7522E Access Point

    AP 7522E, Express 802.11ac AP, Internal Antenna WR
    MSRP: $395.00 Price: $304.88
    In Stock - Ships Free
