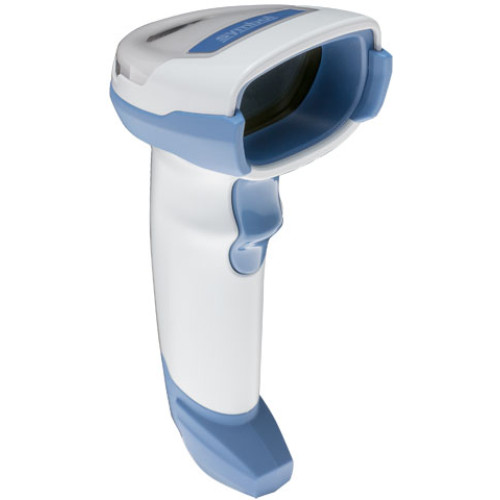

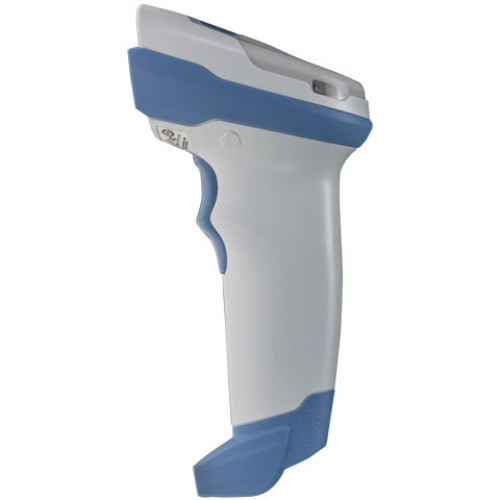

Motorola Symbol DS4308-HC

Performance Characteristics

Technology
Imager

Skew (Yaw)¹
± 60° or greater

Roll (Tilt) ²
0 - 360°

Pitch³
± 65° or greater

Print contrast
20% minimum reflective difference

Interfaces supported
Keyboard wedge, RS-232, USB, SSI, RS485 (IBM46xx)

Decode capability
See data sheet for full list of supported symbologies, 1-D/2-D

Physical Characteristics

Weight
5.71 oz. / 162 g (w/o cable)

Handheld
Yes

Dimensions
6.48 in. H x 3.86 in. L x 2.64 in. W 16.5 cm H x 9.8 cm L x 6.7 cm W)

Corded
Yes

Regulatory Specifications

EMI/RFI
FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 55022 Class B, Medical Electrical Equipment: EN60601-1-2

Environmental
Compliant with RoHS directive 2011/65/EU

Electrical Safety
EN 60950-1, CSA C22.2 No. 60950-1 2nd ed., UL60950-1 2nd ed, IEC60950-1 2nd ed

User Environment

Ambient lighting tolerance
Immune to normal indoor lighting up to 1600 Lux; immune to sunlight up to 86, 000 Lux

Storage temperature
-40° F to 158° F/-40° C to 70° C

Operating temperature
32° F to 122° F/0° C to 50° C

Humidity
5% to 95%, non-condensing

Drop specifications
Withstands multiple 6 ft./1.83 m drops to concrete
