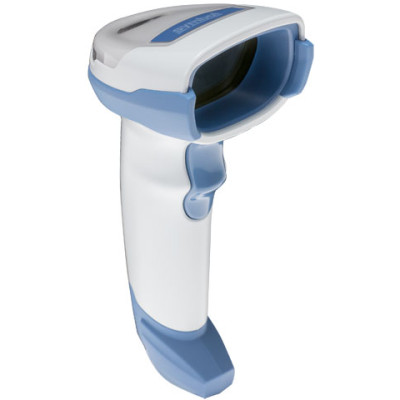

Motorola Symbol DS4308

Motorola Symbol DS4308

The DS4308 is a feature-rich next generation 2D imager that resets the bar for scanning performance, scanning range, versatility and easeof-use. Workers can capture virtually any barcode faster than ever, whether it is displayed on a smartphone, tablet or computer or printed on a label - even if it is scratched, damaged or dirty. Its small and lightweight design offers the ergonomics your workers need for all day comfort in the most scan intensive jobs. A variety of models meet a wide range of business needs - from the Point-of-sale in a retail store to the light industrial manufacturing production line. Regardless of which model you choose, you get one powerful scanner that does the job of two. The standard Range (SR) model offers an extraordinary range, eliminating the need to purchase separate standard and extended range scanners. The High Density (HD) model scans standard barcodes as well as the tiny, dense barcodes commonly found on jewelry tags, consumer electronics and electronic components - eliminating the need to purchase separate standard and high density specialty scanners. And driver's license parsing can be added to either model. The result? An extraordinary feature set and an extraordinary value.
Discontinued - Need Assistance
See all options

Performance Characteristics

Technology
Imager

Skew (Yaw)1
± 60° or greater

Roll (Tilt)2
0 - 360°

Pitch3
± 65° or greater

Print contrast
20% minimum reflective difference

Interfaces supported
Keyboard wedge, RS-232, USB, SSI, RS485 (IBM46xx)

Decode capability
See data sheet for full list of supported symbologies, 1D/2D

Physical Characteristics

Weight
5.71 oz. / 162 g (w/o cable)

Handheld
Yes

Dimensions
6.48 in. H x 3.86 in. L x 2.64 in. W 16.5 cm H x 9.8 cm L x 6.7 cm W)

Corded
Yes

Regulatory Specifications

EMI/RFI
FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 55022 Class B

Environmental
Compliant with RoHS directive 2011/65/EU

Electrical Safety
EN 60950-1, CSA C22.2 No. 60950-1 2nd ed., UL60950-1 2nd ed, IEC60950-1 2nd ed

User Environment

Ambient lighting tolerance
Immune to normal indoor lighting up to 1600 Lux; immune to sunlight up to 86, 000 Lux

Storage temperature
-40° F to 158° F/-40° C to 70° C

Operating temperature
32° F to 122° F/0° C to 50° C

Humidity
5% to 95%, non-condensing

Drop specifications
Withstands multiple 6 ft./1.83 m drops to concrete

Extended Details
Refine Your Options
Shop By
Shopping Options
Interface Options
  1. USB (2)
Form Factor
  1. Handheld (23)
Scanner Capability
  1. 2D (2)
  2. 1D (1)
Connectivity
  1. Corded (2)
Scanner Type
  1. CCD (22)
  2. Imager (22)
Included Cables
  1. USB (2)
Color
  1. Black (2)
  1. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-HL00007ZZWW | SKU: MOT306643

    Symbol DS4308, SCANNER ONLY. 2D Imager, Driver's License Parsing, High Density. Color: Black. Does not include necessary interface cables or stand.
  2. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-SR00006ZZWW | SKU: MOT306652

    SCANNER ONLY. 2D Imager, Standard Range. Color: White. Does not include necessary interface cables or stand.
  3. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-DL7U2100SGW | SKU: MOT306631

    USB/Stand kit. 2D Imager, Driver's License Parsing, Standard Range. Color: Black. Includes USB interface cable and stand.
  4. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-SR00007ZZWW | SKU: MOT302660

    SCANNER ONLY, 2D Imager, Standard Range. Cables sold separately. Color: Black.
  5. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-HD7U2100AZW | SKU: MOT306638

    USB Kit, 2D Imager, High Density. Color: Black. Includes USB interface cable.
  6. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-DL6U2100AZW | SKU: MOT306626

    USB kit. 2D Imager, Driver's License Parsing, Standard Range. Color: White. Includes USB interface cable.
  7. Motorola Symbol DS4308 Barcode Scanner
    Part #: DS4308-HD00007ZZWW | SKU: MOT306633

    SCANNER ONLY. 2D Imager, High Density. Color: Black.
  8. Motorola Symbol DS4308 Presentation Barcode Scanner
    Part #: DS4308-SR7R0110PZN | SKU: MOT306663

    Symbol DS4308, RS-232/Presentation Stand kit. 2D Imager, Standard Range. Color: Black. Includes RS-232 interface cable, US power supply, and presentation stand.
  9. Motorola Symbol DS4308 Presentation Barcode Scanner
    Part #: DS4308-DL00007PCWW | SKU: MOT306621

    Presentation Stand Kit. 2D Imager, Driver's License Parsing, Standard Range, Checkpoint EAS Compatible. Color: Black. Includes presentation stand. Does not include necessary interface cables.
  10. Motorola Symbol DS4308 Presentation Barcode Scanner
    Part #: DS4308-SR00007PZWW | SKU: MOT306654

    Zebra DS4308-SR Handheld Barcode Scanner - Cable Connectivity - 1D, 2D - Imager - Twilight Black
