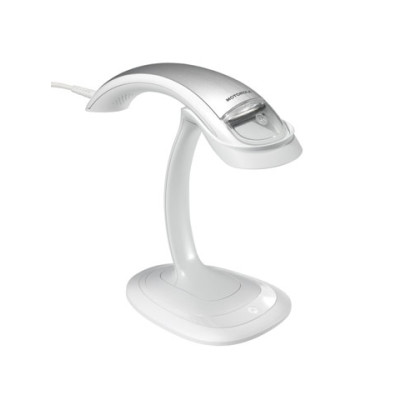

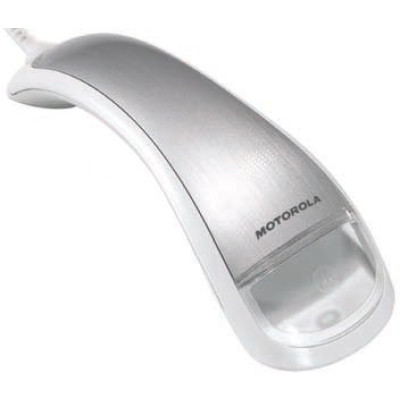

Motorola DS4800 Barcode Scanner

Physical characteristics

Dimensions
7.47 in. L x 2.61 in. W x 1.90 in. H

Weight
6 oz. (168 g.) including cable; cable weight = 2 oz. (53 g.)

Voltage & Current
5 VOC ± 10% @ 360mA (RMS Typical)

Power Source
USB VBUS

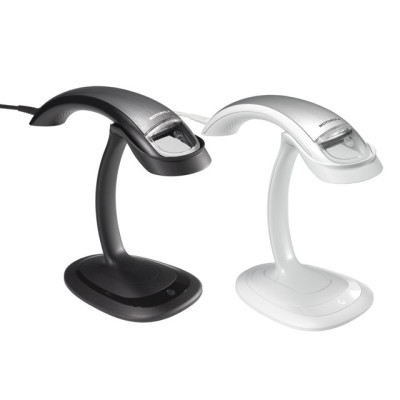

Color
Alpine White & Midnight Black

Suported Host Interfaces
USB

Keyboard Support
Supports over 90 international keyboards

Performance characteristics

Skew tolerance¹
86° (measured using 100% UPC-A; ±3 degree accuracy)

Pitch tolerance
82° (measured using 100% UPC-A; ±3 degree accuracy)

Roll tolerance²
360°

Motion tolerance
Up to 20 in./sec.

Light source
Aiming 606nm LED; Illumination: 640nm LED

Imager Field of View
40° (H) x 26° (V) Nominal

Minimum print contrast
20%

Utilities Management

123Scan² Scanner Managment Services (SMS) Zebra Scanner SDK

Regulatory specifications

Environmental
Compliant with RoHS directive 2002/95/EEC

Electrical safety
UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1 2^nd ed., EN60950-1 / IEC 60950-1 2^nd ed.

LED Safety
IEC/EN 60825-1:2001, IEC/EN 62471:2006

EMI/RFI
FCC Part 15 Class B, ICES-003 Class B, EN 55022 Class B, EN 55024

User environment

Ambient light immunity
Max 108, 000 Lux

Operating temperature
32° F to 104° F/0° C to 40° C

Storage temperature
-40° F to 158° F/-40° C to 70° C

Humidity
5% to 95% RH, non condensing

Drop specifications
Withstands multiple 5 ft. (1.5 m) drops to concrete

Tumble testing
250 cycles (500 drops) in 1/2 meter tumbler

Sealing
IP40

barcode Symbologies
1-D: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1- 128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concatenated 2-D: PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Han Xin Postal: Australian Post, US PLANET, Royal Mail 4 State Customer, US POSTNET, KIX Code (Dutch), UK Postal, Japan Post, UPU 4 State Postal FICS (Post US4), USPS 4 State Postal (Post US3)

Decode ranges (typical)⁵
