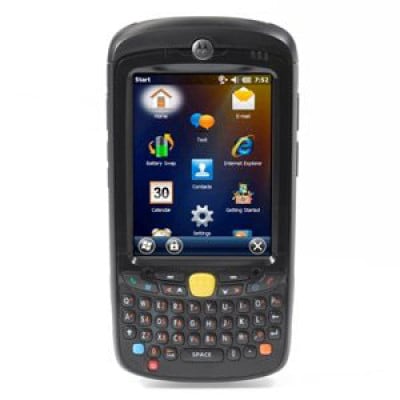

Motorola MC55N0 Specs
2-D Imager Engine
Illumination element
(LED)
625 nm ± 5 nm
Sensor resolution
752 H x 480 V pixels (gray scale)
Roll
360°
Pitch angle
± 60° from normal
Skew tolerance
± 60° from normal
Ambient light immunity
Total darkness to 9,000 ft. candles/96,900 lux
Aiming element (VLD)
655 nm ± 10 nm
Field of View
Horizontal: 40°; Vertical: 25°
Ranges
SR Focus Range, Near/Far:
5 mil Code 39: 2.1 in. (53 mm) / 7.5 in.(191 mm)
100% UPC/EAN: 1.6 in. (41 mm) / 15.5 in. (394 mm)
6.7 mil PDF417: 3.4 in. (86 mm) / 7.1 in.(180 mm)
DL Focus Range, Near/Far:
5 mil Code 39: 1.4 in. (36 mm) / 7.3 in.(185 mm)
100% UPC/EAN: 1.6 in. (41 mm) / 12 in. (305 mm)
5 mil PDF417: 2.8 in.(71 mm) / 4.5 in. (114 mm)
CCD Camera
Lens
Auto-focus
Communications
Network connections
Full-speed USB, host or client
Data Capture Options
Camera resolution
3.2 megapixel
Linear 1-D Scanner
Optical resolution
0.005 in. minimum element width
Roll
± 35° from vertical
Pitch angle
± 65° from normal
Skew tolerance
± 40° from normal
Ambient light
Sunlight: 10,000 ft. candles (107,460 lux)
Artificial Light: 450 ft. candles (4,844 lux)
Scan rate
104 (± 12) scans/sec (bi-directional)
Scan angle
Scan Angle (typical)*
Wide: (Default) 47°; Medium: 35°; Narrow: 10°
Performance Characteristics
Processor
(CPU)
Marvell™ PXA 320 @ 806 MHz processor
Operating system (OS)
Microsoft Windows Mobile 6.5 Classic Edition
Memory
256 MB RAM/1 GB Flash
Data capture options
Multiple configurations available:
1-D SE960 laser scanner
2-D SE4500-SR imager
2-D SE4500-DL imager
3.2 megapixel color camera option available
Physical Characteristics
Dimensions
(HxWxD)
With rechargeable 2400 mAh Lithium Ion battery: 5.78 in. L x 3.03
in. W x 1.06 in. D (147 mm L x 77 mm W x 27 mm D)
Weight
11.1 oz./315 g (with rechargeable 2400 mAh Lithium Ion battery)
Display type
3.5 in Color VGA, super bright 900 NITS
Touch panel
Glass analog resistive touch
LED backlight
Yes
Expansion slot
Micro SD card slot (supports up to 32GB)
Notification
Vibrator, Audible tone plus multi-color LEDs
Keypad options
Numeric, QWERTY, AZERTY and QWERTZ
Audio options
Microphone, Receiver, Speaker, Bluetooth
Power
Backup battery
Rechargeable NiMH battery, 18mAh 2.4V (not user accessible)
Battery
Rechargeable Lithium Ion 3.7V, 2400 mAh Smart Battery User
Profiles: Minimally 8 hours based on 600 scans and WLAN transmits
per hour with display on and standard capacity battery
Extended capacity battery
Rechargeable Lithium Ion 3.7V, 3600 mAh Smart Battery
Regulatory Specifications
Radio
Quad-mode IEEE ® 802.11a/b/g/n
User Environment
Operating temperature
14° F to 122° F/-10° C to 50° C
Storage temperature
-40° F to 158° F/-40° C to 70° C
Humidity
95% non-condensing
Drop specification
Multiple 6 ft./1.8 m drops per MIL-STD 810G specifications
Tumble specifications
1000 1.6 ft./0.5 m tumbles (equivalent to 2, 000 hits) per IEC
tumble specifications
Environmental sealing
IP64
Electrostatic discharge (ESD)
15KV Air 8KV Touch
-
Interface Options
-
Scanner Capability
-
Style
-
Operating System
-
Scanner Type
-
RAM Memory
-
Motorola MC55N0 Mobile Computer
Part #: MC55N0-P40SWQQA9US | SKU: MOT157739MC55N0, Wi-Fi (802.11a/b/g/n), 2D Standard Range Imager, Windows Mobile 6.5, 256MB/1GB, QWERTY Keypad, Bluetooth, 3600 mAh Extended Battery, VGA Screen, Color Camera. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD5500-100UES). Four slot charging cradle kit (Part# CRD5501-401CES), requires US AC line cord (Part# 23844-00-00R). -
Motorola MC55N0 Mobile Computer
Part #: MC55N0-P20SWRQA9US | SKU: MOT156065MC55N0, Wi-Fi (802.11a/b/g/n), 1D Laser Scanner, Windows Mobile 6.5, 256MB/1GB, Numeric Keypad, Bluetooth, Extended Battery (3600mAh), VGA Screen. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD5500-100UES). Four slot charging cradle kit (Part# CRD5501-401CES), requires US AC line cord (Part# 23844-00-00R). -
Motorola MC55N0 Mobile Computer
Part #: MC55N0-P30SWRQA7US | SKU: MOT165086MC55N0, Wi-Fi (802.11a/b/g/n), 2D Standard Range Imager, Windows Mobile 6.5, 256MB/1GB, Numeric Keypad, Bluetooth, Standard Battery, VGA Screen. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD5500-100UES). Four slot charging cradle kit (Part# CRD5501-401CES), requires US AC line cord (Part# 23844-00-00R). -
Motorola MC55N0-P90SWRQA9US Mobile Computer
Part #: MC55N0-P90SWRQA9US | SKU: MOT186805Mc:Lp,SE960,VGA,256mb/1GB,Num Cam 6.5 1.5x -
Motorola MC55N0 Mobile Computer
Part #: MC55N0-P30SWQQA7US | SKU: MOT206439MC55N0, MC:LP,BB,VGA,256MB/1GB,QWERTY, 6.5,1X. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD5500-100UES). Four slot charging cradle kit (Part# CRD5501-401CES), requires US AC line cord (Part# 23844-00-00R).
