23706 Motorola

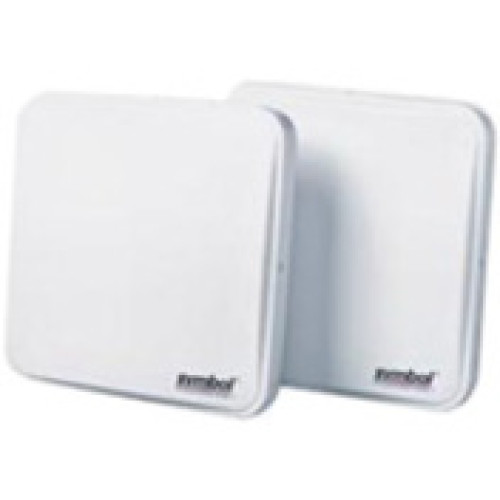

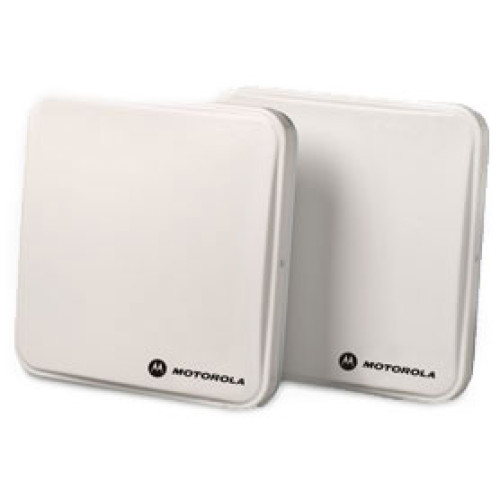

ANT-71720-01 - Motorola AN200 RFID Antenna

AN200, Antenna (Outdoor, Right) For The Ar400 and Xr400
InStock
Free Shipping

Description

The Motorola AN200 provides the convenience of a versatile antenna that can be utilized throughout your enterprise, from the warehouse floor and production line to outside the dock door. Able to withstand extreme heat and cold as well as moisture and vibration, the AN200 is ideal for nearly any application, including retail, manufacturing, wholesale distribution, healthcare, government and more. This all-purpose antenna can be used in standard RFID applications with power levels up to one watt, as well as custom high-power applications requiring up to 20 watts. The antenna is traditionally used in pairs, with right and left hand polarization.
  • Frequency range: 902-928 MHz
  • Power: 20 watts (max. input)
  • Gain: 6.0 dBi linear
  • Axial ratio <3 dB
  • Connector: Type \"N\" Female
  • Polarization: LHCP or RHCP
  • Single port: Yes
  • IP54 rated
  • Outdoor ready

Additional Information

Gain 6 dBiL
Read Range Far Field
Frequency Range UHF
Polarization Right Circular
Connector Type N Female
Environment Outdoor
Form Factor General Purpose
Manufacturer Motorola

General Information

  • Product Type: Antenna
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AN200
  • Product Name: Indoor/Outdoor RFID Antenna

Technical Information

  • Antenna Gain: 6 dBi
  • Frequency Band Type: UHF
  • Frequency: 900 MHz to 928 MHz
  • Impedance: 50 Ohm
  • Polarization: Right Hand Circular

Physical Characteristics

  • Height: 11.1"
  • Width: 11.1"
  • Depth: 1.9"
  • Weight (Approximate): 3 lb

Interfaces/Ports

  • Connector Type: N-Type
  • Number of Connectors: 1

Other

  • Application/Usage: Wireless Data Network
  • Additional Information: General Purpose indoor and outdoor RFID Antenna.

Warranty

  • Limited Warranty: 1 Year
