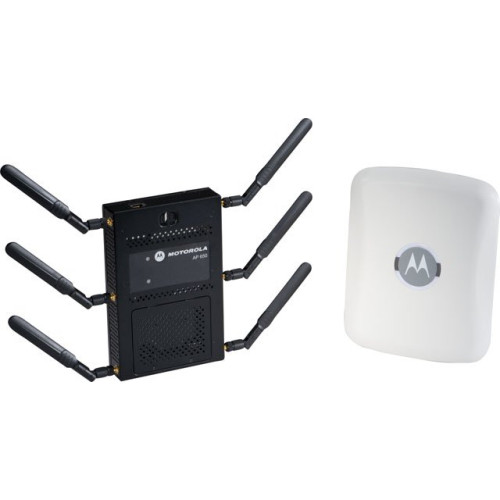

Motorola AP650 Access Point
Part #: AP-0650-60010-WW | SKU: MOT87107

The Symbol AP650 features full 802.11n performance with standard 802.3af, which simplifies and reduces total cost of installation using standard Power-over-Ethernet (PoE). Its multiband operation allows concurrent sensing on 2.4 Ghz and 5.0 Ghz frequency bands for multi-band intrusion protection or troubleshooting. The AP650 supports fast, secure roaming. This unique multi-purpose device can execute and enforce the IDS/IPS security policies configured in the Symbol wireless switch, and can also be utilized as a 24x7 dedicated sensor with Wireless IPS from Symbol AirDefense solutions.

Motorola AP650 Access Point

Part Details: Zebra AP 650 IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Ceiling Mountable, Wall Mountable

Additional Information

Manufacturer Motorola
Model Name AP650

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Antenna Gain:
    • 2 dBi
    • 4.8 dBi
  • Total Number of Antennas: 3
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Antenna Connector: RP-SMA Connector
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security:
    • AAA
    • RADIUS
    • AirDefense

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP 650
  • Product Name: AP 650 Wireless Access Point

Physical Characteristics

  • Height: 1.7"
  • Width: 7.5"
  • Depth: 9.5"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Management & Protocols

  • Management: VLAN
Extended Details

Recommended Warranties for Model: Motorola AP650 Access Point

  • Motorola AP650 Service Contract
    Part #: SXB-AP0650-20-R | SKU: MOT300956

    Zebra Service from the Start Advance Exchange Support - 2 Year Extended Service (Renewal) - Service - Maintenance - Parts & Labor - Physical Service
