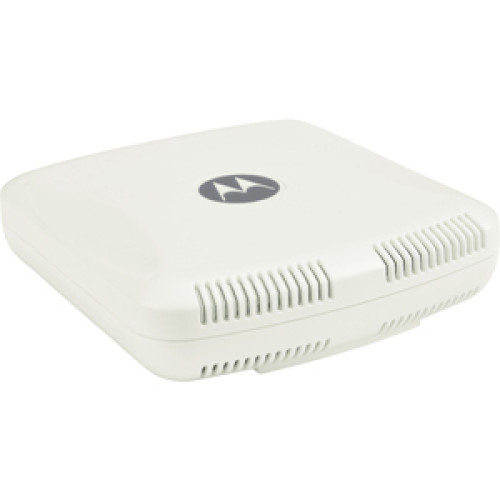

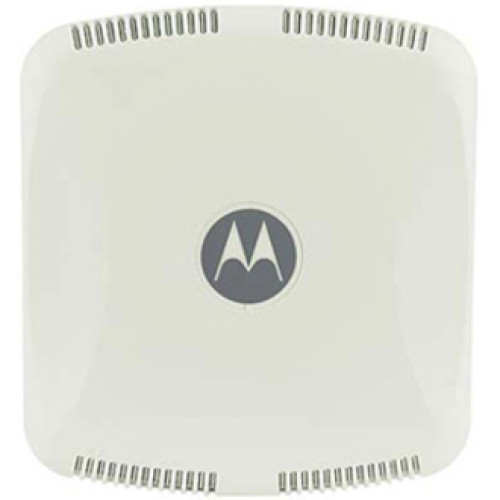

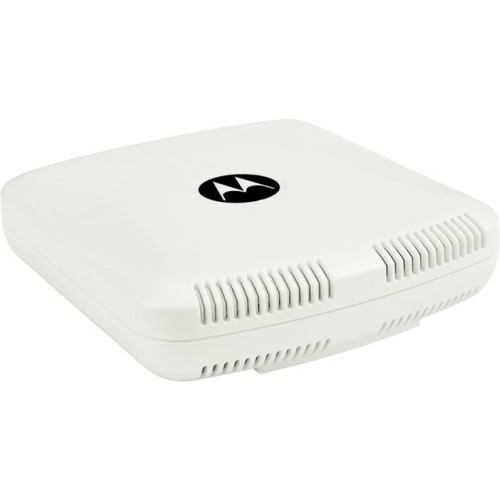

Motorola AP 6521 Access Point
Part #: AP-6521-60010-US | SKU: MOT148357

  • The SMART RF feature automatically optimizes power and channel selection so each user gets always-on high-quality access and mobility
  • Optimizes network availability through its central and pre-emptive intelligenc
  • Includes layer 2-7 stateful packet filtering firewall, AAA RADIUS services, Wireless IPS-lite, VPN gateway, and location-based access control
  • Requires no configuration or manual firmware maintenance
  • Device and network acceleration
  • Each AP 6521 access point can be virtualized into four unique VLANs, which can be customized to direct broadcast traffic to the intended recipient
  • Full 802.11n performance with standard 802.3af
  • Power-over-Ethernet (PoE) capable
  • Supports fast, secure roaming.
  • Executes and enforces the IDS/IPS security policies configured in the Motorola wireless switch, and can also be utilized as a 24x7 dedicated sensor with Wireless IPS

Motorola AP 6521 Access Point

Part Details: Wireless Access Points - Motorola AP 6521 - Indoor - Internal Antenna - 2.4GHz Wi-Fi Band - Must Order Power Supply Separately - For PoE Order AP-PSBIAS-2P2-AFR and 23844-00-00R or Direct to Wall Power Order PWRS-147376-01R

Additional Information

Antenna Internal
Antenna Gain 1 dB
Environment Indoor
MIMO 2x2
Manufacturer Motorola
Model Name AP 6521
Power PoE
Radio Count Single
Wireless Type Wi-Fi

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.18 GHz
  • Antenna Gain:
    • 3 dBi
    • 6 dBi
  • Total Number of Antennas: 3
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security:
    • AAA
    • RADIUS
    • Wireless IPS-Lite
    • VPN
    • Location-Based Access Control

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP 6521
  • Product Name: AP 6521 Wireless Access Point

Physical Characteristics

  • Height: 1.7"
  • Width: 7.5"
  • Depth: 9.5"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: No

Other

  • Certifications & Standards:
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3af
    • IEEE 802.1Q
    • FCC
    • IC
    • CE

Power Description

  • Input Voltage: 57 V DC
  • Power Source: AC Adapter

Management & Protocols

  • Management: VLAN
Extended Details

Recommended Warranties for Model: Motorola AP 6521 Access Point

  • Motorola AP 6521 Service Contract
    Part #: AXB-AP6521E-10 | SKU: 310010

    Service Contract - 1 Year, Advanced Exchange. Includes Comprehensive Coverage. Available only in NA, LACR and APME. Check datasheet for regional availability.
  • Motorola AP 6521 Service Contract
    Part #: SXB-AP6521E-30 | SKU: 310016

    Service Contract - 3 Year, Service from the Start Advanced Exchange. Includes Comprehensive Coverage. Available in NA, LACR and APME only. Check datasheet for regional availability.
