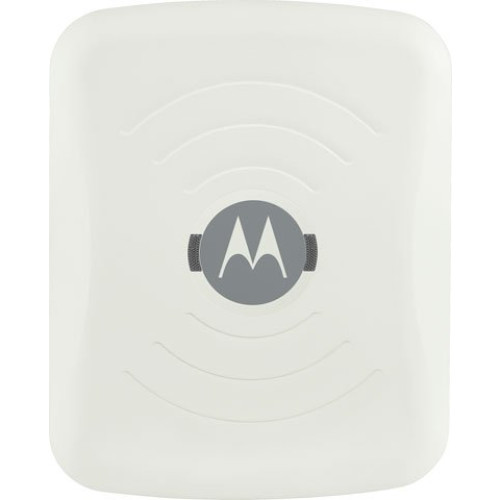

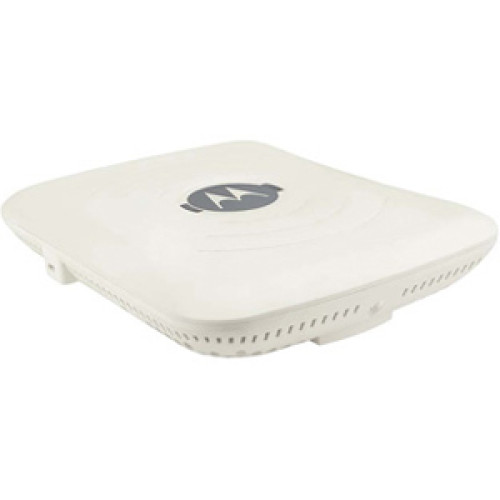

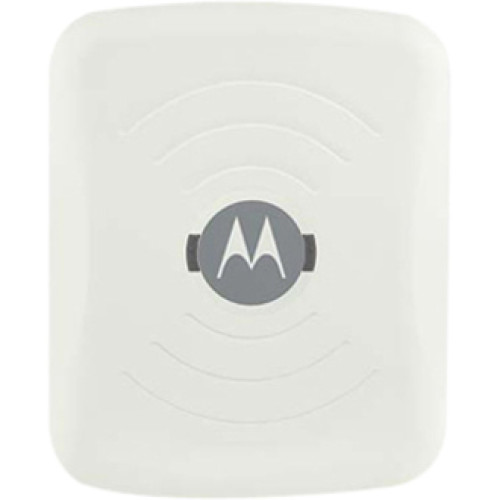

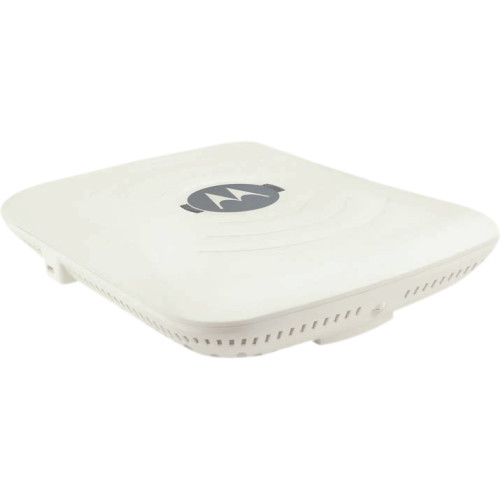

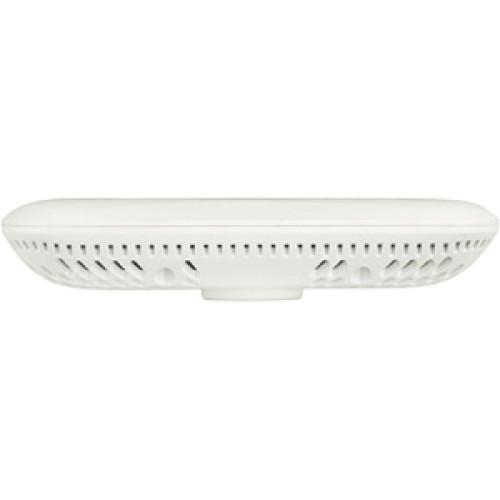

Motorola AP 6532 Wireless Access Points
Part #: AP-6532-66030-US | SKU: MOT123668

The Motorola AP 6532 is a performance-focused 802.11n access point that offers higher throughput along with WiNG 5's direct forwarding, security, QoS services and site survivability. The second radio can be used for access or as a sensor for troubleshooting and security. With its WiNG 5 intelligence, the AP 6532 access point can serve as a virtual controller and coordinate the operation of up to 24 neighboring access points.

Motorola AP 6532 Wireless Access Points

Part Details: Indoor Access Point - Dual radio - 802.11n - Internal Antenna

Need a different version of the Motorola AP 6532 Wireless Access Points? View all 6 configurations

Additional Information

Manufacturer AIDC	Motorola
Model Name	AP 6532
Wireless Type	Wi-Fi, Wi-Fi 4: 802.11n

Motorola AP 6532 Specs (pdf)

Technical Information

Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
UNII Minimum Frequency: 5.15 GHz
Antenna Gain:
- 2 dBi
- 4.8 dBi
Total Number of Antennas: 3
Wireless Transmission Speed: 300 Mbps
ISM Maximum Frequency: 2.47 GHz
UNII Maximum Frequency: 5.85 GHz
Features:
- Quality of Service (QoS)
- MIMO Technology
Wireless Security:
- AAA
- RADIUS
- Location-based access control
- VPN
- Stateful packet filtering firewall

General Information

Product Type: Wireless Access Point
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: AP 6532
Product Name: AP 6532 Wireless Access Point

Physical Characteristics

Height: 1.7"
Width: 7.5"
Depth: 9.5"
Form Factor:
- Wall Mountable
- Ceiling Mountable
Weight (Approximate): 2 lb

Interfaces/Ports

Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
10Gigabit Ethernet Port: No
Number of Network (RJ-45) Ports: 1
PoE (RJ-45) Port: Yes
USB: No
VGA: No
Serial Port: No
Network (RJ-11): No
Powerline: No
Management Port: No

Other

Certifications & Standards:
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.1Q
- IEEE 802.1p
- UL 60950
- cUL
- EU EN 60950
- TUV
- UL 2043
- FCC
- IC
- CE
- TELEC

Power Description

Input Voltage: 57 V DC
Power Source: AC Adapter

Management & Protocols

Management: VLAN

Extended Details

Recommended Warranties for Model: Motorola AP 6532 Wireless Access Points

Motorola AP 6532 Service Contract
Part #: SSS-AP6532-30 | SKU: MOT370047

Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive Coverage. Check datasheet for regional availability.
Motorola AP 6532 Service Contract
Part #: AP-6532-66030-EU | SKU: MOT223492

AP 6532, Access Point (802.11n INDEP 2-Radio Internal Antenna, Europe Only SKU)
