Additional Information
| Manufacturer | Motorola |
|---|---|
| Model Name | AP 6532 |
| Wireless Type | Wi-Fi, Wi-Fi 4: 802.11n |

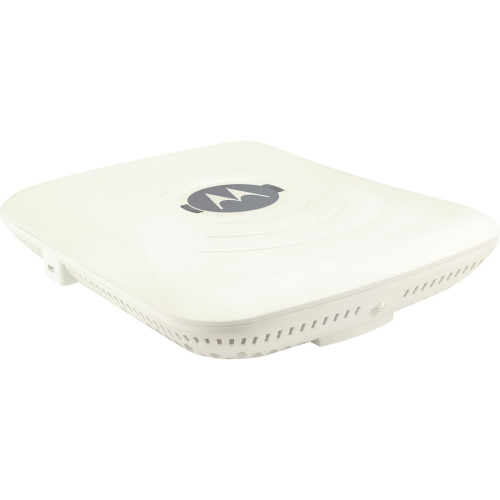

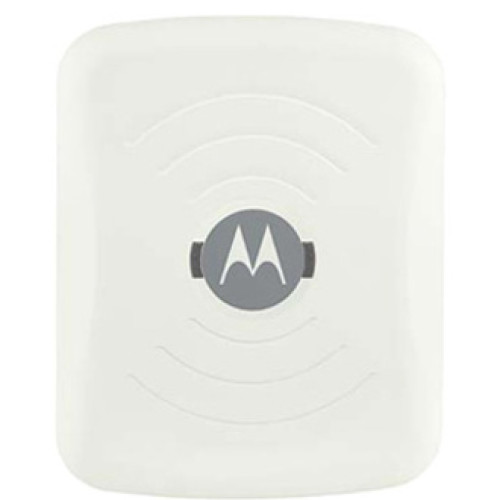

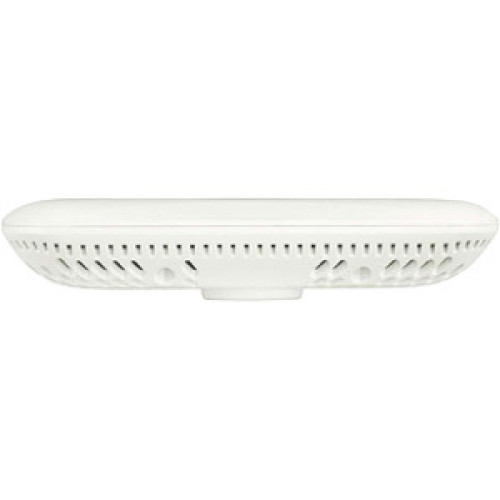

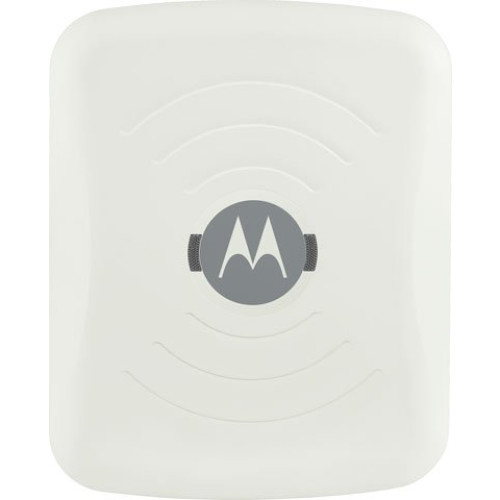

Motorola AP 6532 Specs
Technical Information
- Wireless LAN Standard: IEEE 802.11n
- ISM Band: Yes
- UNII Band: Yes
- ISM Minimum Frequency: 2.41 GHz
- UNII Minimum Frequency: 5.15 GHz
- Antenna Gain:
- 2 dBi
- 4.8 dBi
- Total Number of Antennas: 6
- Wireless Transmission Speed: 300 Mbps
- ISM Maximum Frequency: 2.47 GHz
- UNII Maximum Frequency: 5.85 GHz
- Antenna Connector: RP-SMA Connector
- Features:
- Quality of Service (QoS)
- MIMO Technology
- Wireless Security:
- AAA
- RADIUS
- Location-based access control
- VPN
- Stateful packet filtering firewall
General Information
- Product Type: Wireless Access Point
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: AP 6532
- Product Name: AP 6532 Wireless Access Point
Physical Characteristics
- Height: 1.5"
- Width: 5.6"
- Depth: 8.5"
- Form Factor:
- Wall Mountable
- Ceiling Mountable
- Weight (Approximate): 2.50 lb
Interfaces/Ports
- Ethernet Port: Yes
- Fast Ethernet Port: Yes
- Gigabit Ethernet Port: Yes
- 10Gigabit Ethernet Port: No
- Number of Network (RJ-45) Ports: 1
- PoE (RJ-45) Port: Yes
- USB: No
- VGA: No
- Serial Port: No
- Network (RJ-11): No
- Powerline: No
- Management Port: No
Other
- Certifications & Standards:
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.1Q
- IEEE 802.1p
- UL 60950
- cUL
- EU EN 60950
- TUV
- UL 2043
- FCC
- IC
- CE
- TELEC
Power Description
- Input Voltage: 57 V DC
- Power Source: AC Adapter
Management & Protocols
- Management: VLAN
