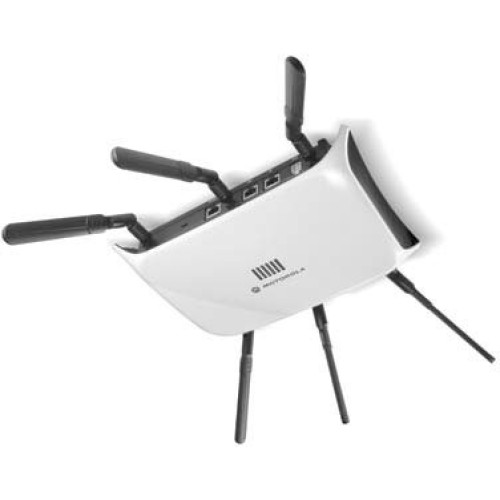

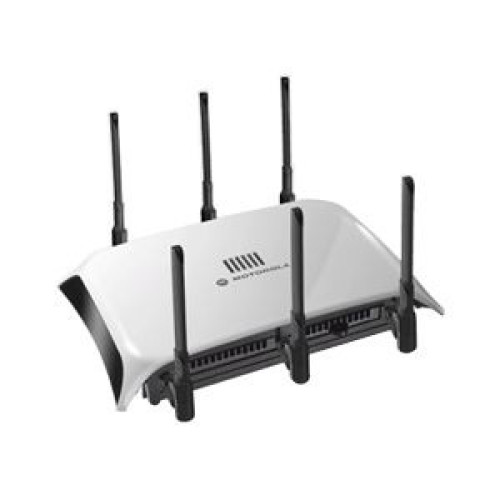

Motorola AP-7131 Wireless Access Points
Part #: AP-7131N-66040-FGR | SKU: MOT85856

As a standalone access point, AP-7131 provides small and medium-sized businesses with a consolidated wired and wireless networking infrastructure, all in single device. The integrated router, gateway, firewall, DHCP and AAA Radius servers, VPN, hot-spot gateway, Power-over-Ethernet (PoE) simplify and reduce the costs associated with networking by eliminating the need to purchase and manage multiple pieces of equipment.

Motorola AP-7131 Wireless Access Points

Part Details: Zebra AP-7131 IEEE 802.11n 300 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Gigabit Ethernet - PoE Ports

Need a different version of the Motorola AP 7131 Wireless Access Points? View all 17 configurations

Additional Information

Manufacturer	Motorola
Model Name	AP 7131
Wireless Type	Wi-Fi, Wi-Fi 4: 802.11n

Motorola AP 7131 Specs (pdf)

Technical Information

Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
UNII Minimum Frequency: 5.15 GHz
Total Number of Antennas: 6
Wireless Transmission Speed: 300 Mbps
ISM Maximum Frequency: 2.46 GHz
UNII Maximum Frequency: 5.85 GHz
Antenna Connector: RP-SMA Connector
Wireless Security:
- WEP
- WPA
- WPA2
- IEEE 802.11i
- Intrusion Prevention System
- AAA
- IPSec
- Stateful firewall
- IP filtering
- NAT

General Information

Product Type: Wireless Access Point
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: AP-7131
Product Name: AP-7131 Wireless Acess Point

Physical Characteristics

Height: 1.5"
Depth: 5.5"
Weight (Approximate): 2.67 lb

Interfaces/Ports

Gigabit Ethernet Port: Yes
Number of Network (RJ-45) Ports: 2
PoE (RJ-45) Port: Yes
Management Port: Yes

Management & Protocols

Management:
- CLI
- Web Based Management
- DHCP
- SNMP v3
- QoS
- IEEE 802.1Q VLAN

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS

Power Description

Power Source: Power Supply

Extended Details

Recommended Accessories for Model: Motorola AP-7131 Wireless Access Points

Zebra ML-2452-PTA3M3-036 Wireless Antenna
Part #: ML-2452-PTA3M3-036 | SKU: ZEB54137

Ceiling Mount, Dual Band, MIMO Patch: 3 x RPSMA Male
Zebra AP-7131 Wireless Antenna
Part #: ML-2452-HPA5-036 | SKU: ZEB80690

Dipole, RP-SMA-Male
Motorola AP-7131 Wireless Antenna
Part #: ML-2452-PTA2M3X3-1 | SKU: MOT54136

AP-7131 MIMO Facade: 1 IN, 6 x RPSMA, Snap-on Façade
Motorola AP-7131 Accessory
Part #: AP-PSBIAS-1P3-AFR | SKU: MOT37985

Single Port Poe Injector High Power Gigabit
Motorola AP-7131 Accessory
Part #: 50-14000-247R | SKU: MOT61857

AP-7131 Power supply 100 250 Vac/ 48.0vdc/0.75a
