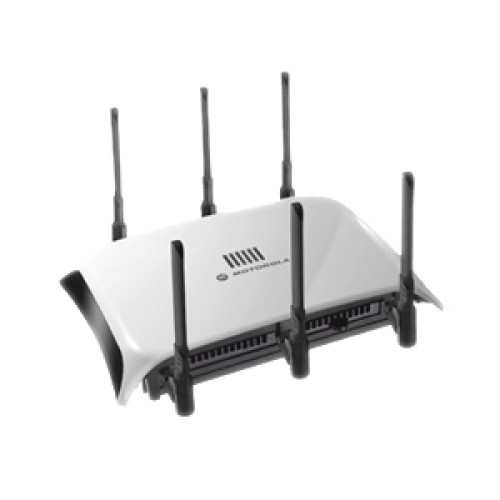

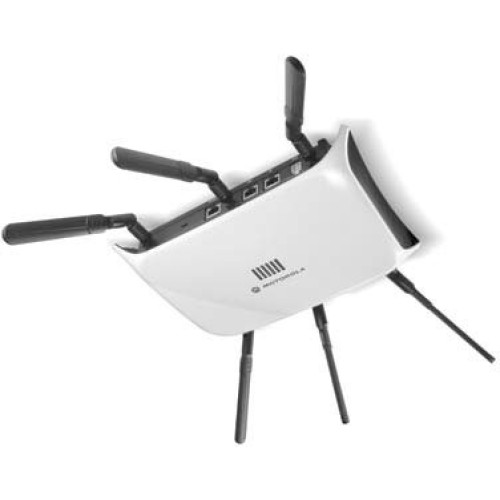

Motorola AP-7131 Wireless Access Points
Part #: AP-7131N-66E48-US | SKU: MOT80667

As a standalone access point, AP-7131 provides small and medium-sized businesses with a consolidated wired and wireless networking infrastructure, all in single device. The integrated router, gateway, firewall, DHCP and AAA Radius servers, VPN, hot-spot gateway, Power-over-Ethernet (PoE) simplify and reduce the costs associated with networking by eliminating the need to purchase and manage multiple pieces of equipment.

Motorola AP-7131 Wireless Access Points

Part Details: Zebra AP-7131 IEEE 802.11n 300 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Gigabit Ethernet - PoE Ports

Need a different version of the Motorola AP 7131 Wireless Access Points? View all 17 configurations

Additional Information

Antenna	Internal
Antenna Gain	3 dB
Environment	Indoor
MIMO	3x3:2
Manufacturer	Motorola
Mesh	Yes
Model Name	AP 7131
Power	AC
Radio Count	No
Wireless Type	Wi-Fi, Wi-Fi 4: 802.11n

Motorola AP 7131 Specs (pdf)

Technical Information

Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
UNII Minimum Frequency: 5.15 GHz
Total Number of Antennas: 3
Wireless Transmission Speed: 300 Mbps
ISM Maximum Frequency: 2.46 GHz
UNII Maximum Frequency: 5.85 GHz
Antenna Connector: RP-SMA Connector
Wireless Security:
- Intrusion Prevention System
- AAA
- IPSec
- Stateful firewall
- IP filtering
- NAT
- WPA2
- WPA

General Information

Product Type: Wireless Access Point
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: AP-7131
Product Name: AP-7131 Wireless Access Point

Physical Characteristics

Height: 1.5"
Depth: 5.5"
Weight (Approximate): 2.67 lb

Interfaces/Ports

Gigabit Ethernet Port: Yes
Number of Network (RJ-45) Ports: 2
PoE (RJ-45) Port: Yes
Management Port: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- AP-7131 Wireless Access Point
- 6 Element Facade Antenna Module
- AP-7131 Wireless Access Point
- 6 Element Facade Antenna Module
Additional Information:
- 3X3 MIMO with 2 Spatial Streams
- Reduced Interframe Spacing

Management & Protocols

Management:
- DHCP
- IEEE 802.1Q VLAN
- IEEE 802.1p QoS
- SNMPv3
- Command line interface

Power Description

Power Source: AC Adapter

Extended Details
