147635 Motorola

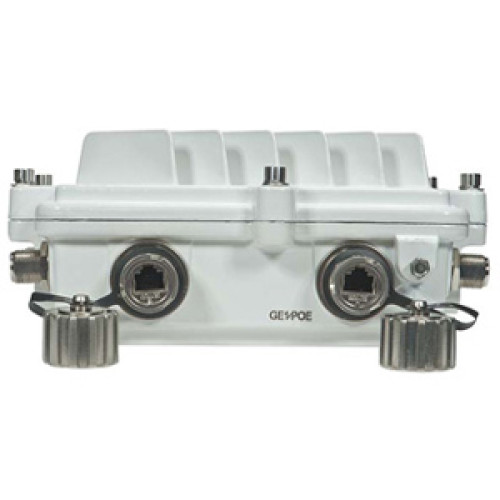

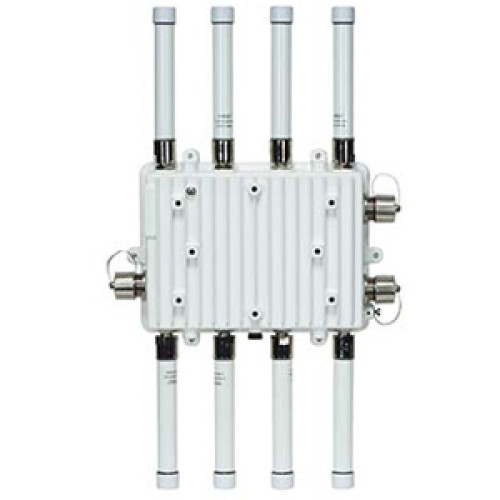

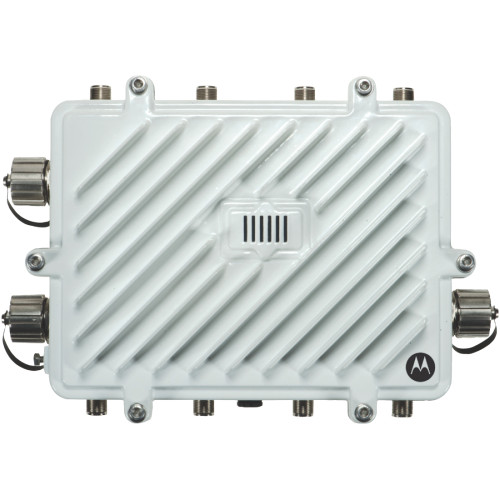

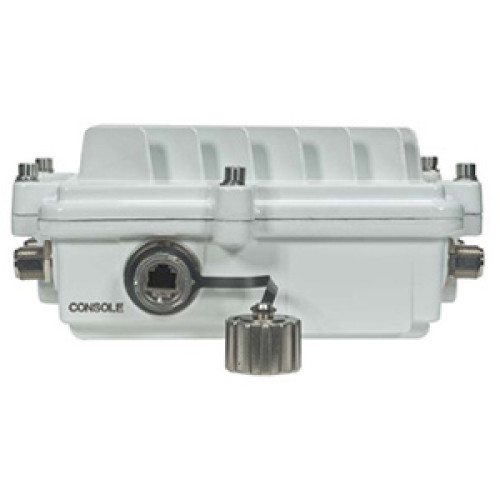

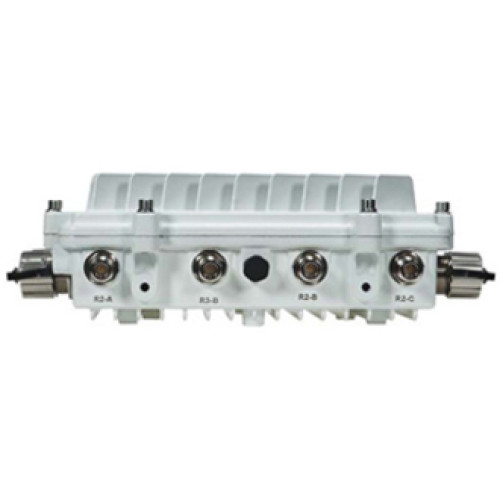

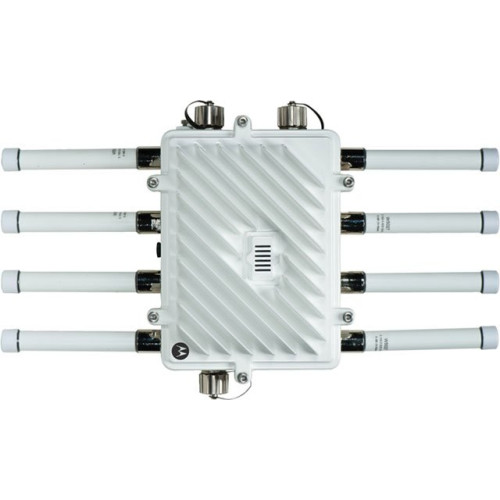

Motorola AP 7161 Access Point Part # AP-7161-66040-US

Perfect for extending network coverage to outside areas, the AP 7161 brings the latest 802.11n 3x3 MIMO tri-radio design together with the rugged outdoor performance. True perimeter security is provided using either a dedicated dual-band sensor or software mode for both 2.4GHz and 5GHz bands to deliver 24x7 rogue detection and termination. The AP 7161 is optimized with WiNG 5 intelligence at the edge extending QoS, security, and mobility services to the access point so you get better capacity and performance. The AP 7161 is ideal for industrial, enterprise campus, video surveillance, public safety, and smartgrid utility deployments to extend to the outdoors.

AP-7161-66040-US - Motorola AP 7161 Access Point

Part Details: AP 7161, Outdoor Dual Radio 802.11n Access Point, Does Not Include Antennas, Poe, Or Mounting Bracket
InStock

Additional Information

Antenna External
Data Transfer rate 300 Mbps
Environment Outdoor
MIMO 3x3
Manufacturer Motorola
Mesh Yes
Power PoE+
Product Condition New
Radio Count Dual
Wi-Fi Band 5GHz
Wireless Type 802.11a/b/g/n

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.40 GHz
  • UNII Minimum Frequency: 4.94 GHz
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.48 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Antenna Connector: N-Type
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security:
    • WPA
    • WPA2
    • Stateful Firewall
    • IP Filtering
    • NAT
    • IEEE 802.1x
    • IEEE 802.11i

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP7161
  • Product Name: AP7161 Wireless Access Point

Physical Characteristics

  • Height: 8.9"
  • Width: 12.6"
  • Depth: 3.9"
  • Form Factor:
    • Pole-mountable
    • Wall Mountable
  • Weight (Approximate): 6.40 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3at
    • IEEE 802.11i
    • IEEE 802.1x
    • IEEE 802.11e
    • IEEE 802.1p
    • FCC Title 47, part 15, part 90
    • EN 301 489-17
    • EN 301 893 v1.5.1 DFS
    • EN 302 502 DFS
    • EN 300 328
    • IC
    • UL 60950-1, -22
    • CSA C22.2 No.60950-1-07, -22
    • CB-IEC 60950 -1, 22
    • EN 60950-1:2006+ A11:2009
    • CE

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Management & Protocols

  • Management: DHCP

Warranty

  • Limited Warranty: 1 Year
