155328 Motorola

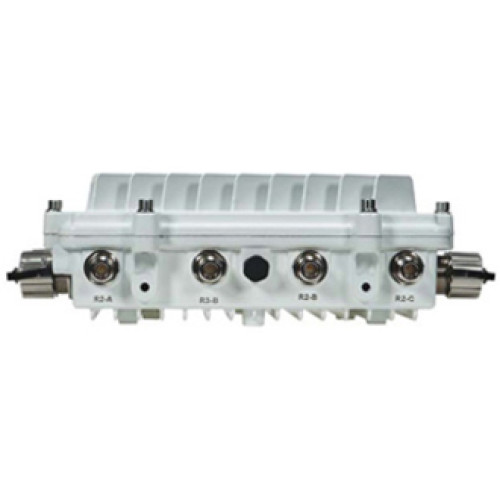

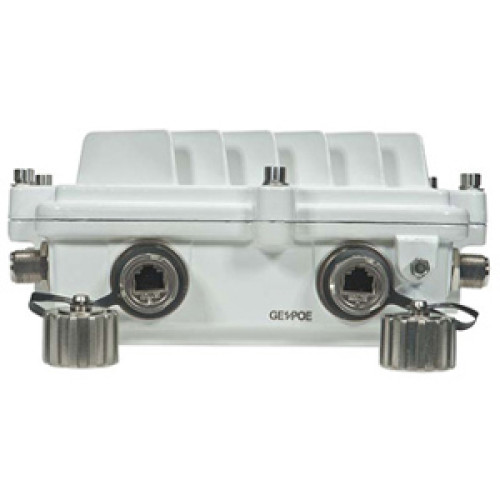

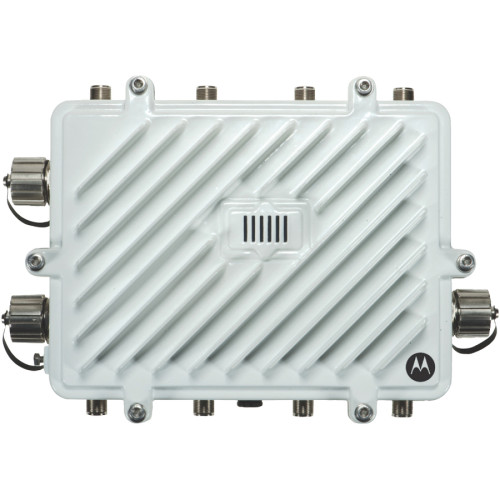

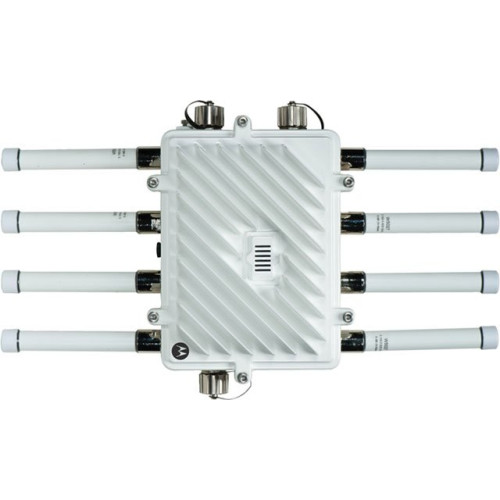

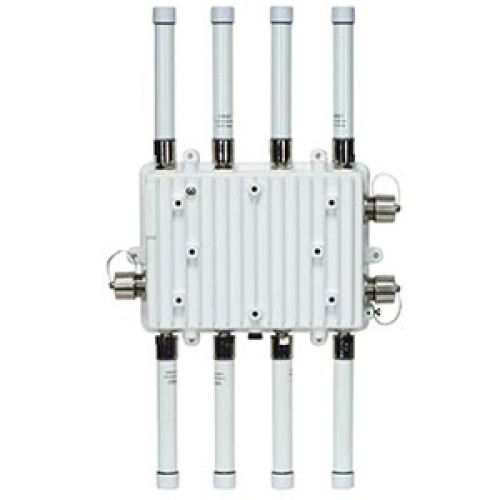

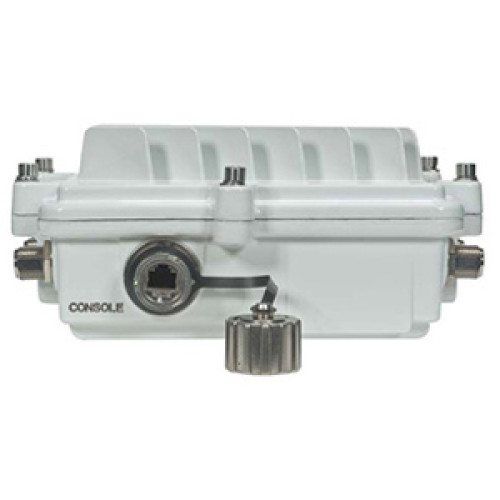

Motorola AP 7161 Access Point Part # AP-7161-66S40-WR

Perfect for extending network coverage to outside areas, the AP-7161 brings the latest 802.11n 3x3 MIMO tri-radio design together with the rugged outdoor performance. True perimeter security is provided using either a dedicated dual-band sensor or software mode for both 2.4GHz and 5GHz bands to deliver 24x7 rogue detection and termination. The AP-7161 is optimized with WiNG 5 intelligence at the edge extending QoS, security, and mobility services to the access point so you get better capacity and performance. The AP-7161 is ideal for industrial, enterprise campus, video surveillance, public safety, and smartgrid utility deployments to extend to the outdoors.

AP-7161-66S40-WR - Motorola AP-7161 Access Point

Part Details: AP-7161, AP 7161 Outdoor Mesh Access Point (802.11n Ap, Sensor, Intl Only)

Additional Information

Environment Outdoor
Manufacturer Motorola
Product Condition New

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.40 GHz
  • UNII Minimum Frequency: 4.94 GHz
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.48 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Antenna Connector: N-Type
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security:
    • WPA
    • WPA2
    • Stateful Firewall
    • IP Filtering
    • NAT
    • IEEE 802.1x
    • IEEE 802.11i

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP7161
  • Product Name: AP7161 Wireless Access Point

Physical Characteristics

  • Height: 8.9"
  • Width: 12.6"
  • Depth: 3.9"
  • Form Factor:
    • Pole-mountable
    • Wall Mountable
  • Weight (Approximate): 6.40 lb


  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Management & Protocols

  • Management: DHCP


  • Limited Warranty: 1 Year
