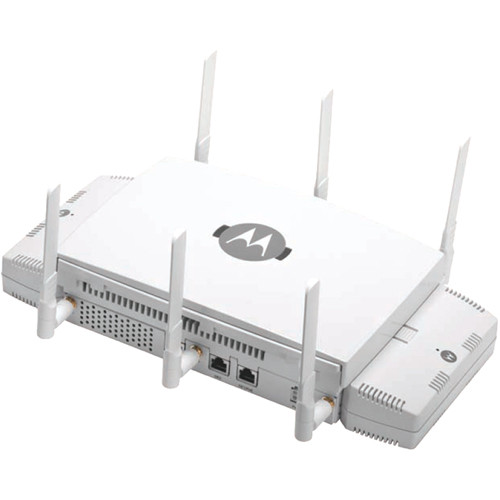

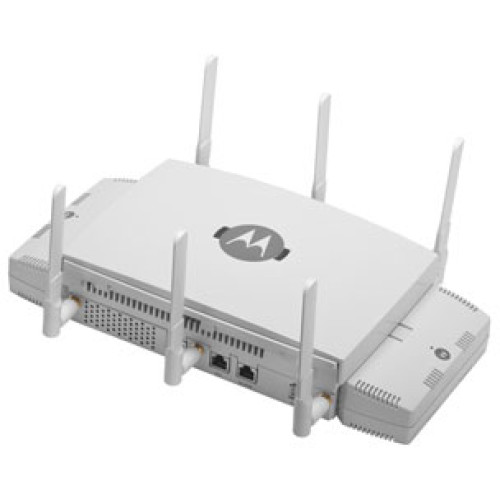

Motorola AP 8132 Access Point
Part #: AP-8132-66040-US | SKU: MOT177635

The Motorola AP 8132 access point's unique modular architecture increases your readiness to meet your evolving needs, making it the ideal future-ready platform for deploying applications at the edge. Its innovative design accepts up to two module attachments to the base, offering you the flexibility to add new capabilities, transform the user experience and enhance the productivity of your team. And because you’re leveraging your wireless infrastructure, application deployment costs are significantly reduced since you no longer have to run separate network and power cabling. The AP 8132 is a 3-spatial stream access point with two radios, delivering data rates of up to 450 Mbps per radio over WING 5 architecture. Whether you’re using voice, data, or bandwidth-intensive applications like HD video, you can be confident your network can handle the traffic and provide the optimum user experience.

Motorola AP 8132 Access Point

Part Details: Zebra AP-8132 IEEE 802.11n 450 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Ceiling Mountable, Wall Mountable

Additional Information

Manufacturer Motorola
Model Name AP 8132
Wireless Type Wi-Fi 4: 802.11n, Wi-Fi

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.18 GHz
  • Wireless Transmission Speed: 450 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Antenna Connector: RP-SMA Connector
  • Features:
    • Quality of Service (QoS)
    • MIMO Technology
  • Wireless Security:
    • IEEE 802.1x
    • IEEE 802.11i
    • WPA
    • WPA2
    • PPPoE

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-8132
  • Product Name: AP-8132 Modular 802.11n Access Point

Physical Characteristics

  • Height: 1.6"
  • Width: 6"
  • Depth: 9"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 3.20 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 2
  • PoE (RJ-45) Port: No
  • USB: Yes
  • HDMI: No
  • VGA: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IEEE Standards:
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.1x
    • IEEE 802.11i
    • IEEE 802.1p
    • Product Safety Certification:
    • UL / cUL 60950-1
    • IEC / EN60950-1
    • UL2043
    • Radio Approvals:
    • FCC
    • IC
    • CE

Power Description

  • Input Voltage: 48 V DC
  • Power Source: PoE

Management & Protocols

  • Management: DHCP
Extended Details
