241390 Motorola

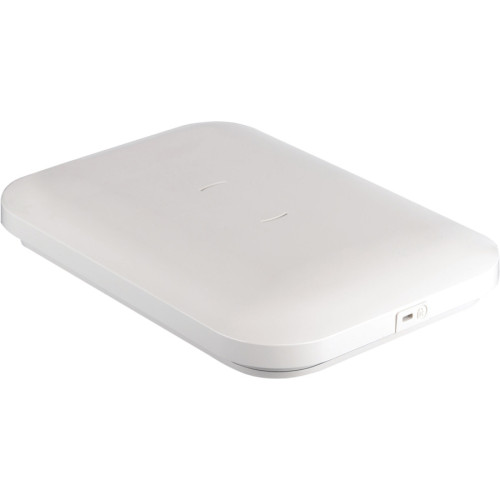

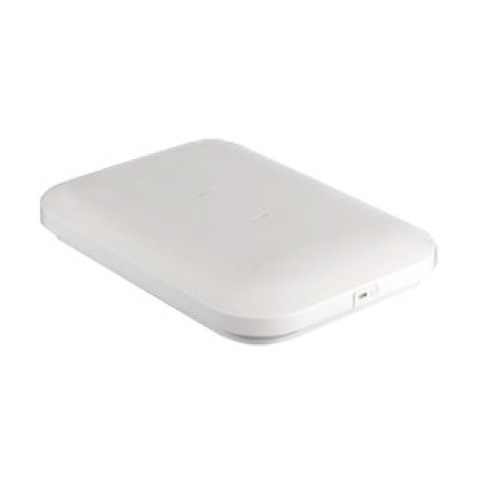

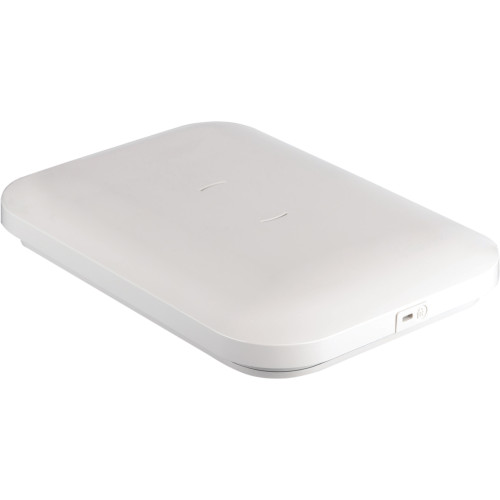

Motorola AP 8222 Access Point Part # AP-8222-67030-US

The AP 8222 makes it easy to deliver blazing Wi-Fi wireless access to the public. Whether you need to serve shoppers in a retail store, hotel guests or patients and their visitors in a hospital, the AP 8222 delivers Wi-Fi speeds up to four times the speed of 802.11n, allowing you to support virtually any number of mobile devices running the most demanding applications.

AP-8222-67030-US - Motorola AP 8222 Access Point

Part Details: AP 8222, 802.11ac Dual Radio Internal Antenna - US Only Version.
InStock

Additional Information

Antenna Internal
Data Transfer rate 1.3 Gbps
Environment Indoor
MIMO 3x3:3
Manufacturer Motorola
Mesh Yes
Power PoE
Product Condition New
Radio Count Dual
Wi-Fi Band 5GHz
Wireless Type 802.11a/b/g/n/ac

Technical Information

  • Wireless LAN Standard: IEEE 802.11ac
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.18 GHz
  • Total Number of Antennas: 3
  • Wireless Transmission Speed: 1.27 Gbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Antenna Connector: RP-SMA Connector
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security:
    • WPA2
    • WPA

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP 8222
  • Product Name: AP 8222 802.11ac Access Point

Physical Characteristics

  • Height: 1.8"
  • Width: 6"
  • Depth: 9"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 3.41 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 2
  • PoE (RJ-45) Port: Yes
  • USB: No
  • HDMI: No
  • VGA: No
  • Audio Line Out: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Safety:
    • UL
    • cUL 60950-1
    • EN60950-1
    • UL2043
    • Radio Approvals:
    • FCC
    • EU
    • TELEC

Power Description

  • Power Source:
    • AC Adapter
    • PoE

Management & Protocols

  • Management: DHCP
Extended Details

Recommended Warranties

  • Motorola AP 8222 Service Contract (SSS-AP8222-30)

    Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive Coverage. Check datasheet for regional availability.
