85014 Motorola

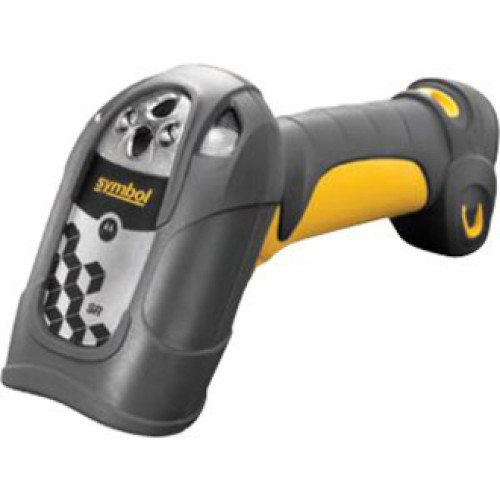

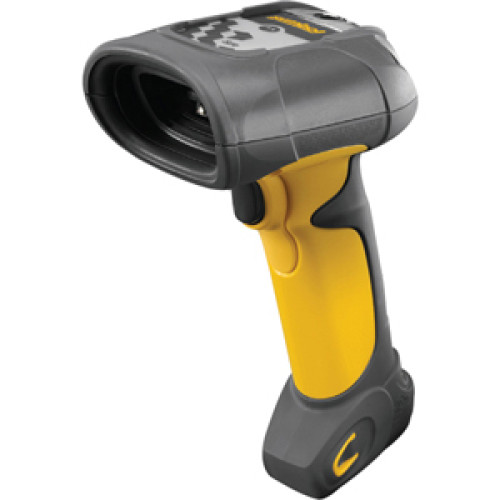

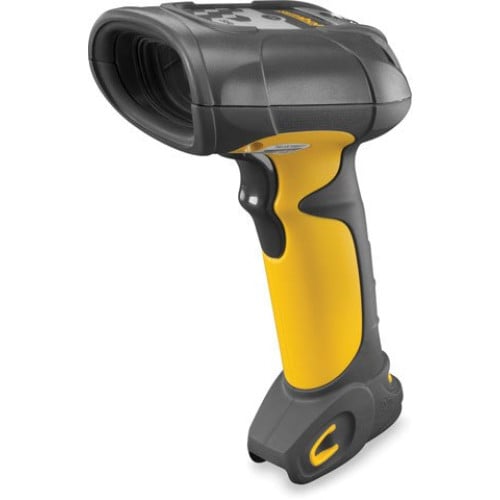

DS3508-SR20005R - Motorola DS3508 Bar code Scanner

DS3508, SCANNER ONLY, 2D Imager, Rugged Handheld Corded Scanner. Does not include necessary cables. See accessories. For the full kit purchase (Part# DS3508-SRAU0200ZR).
InStock
Free Shipping

Description

The Motorola DS3508 Series of rugged, corded digital scanners bring comprehensive, high performance data capture to harsh industrial environments to improve business efficiency.
  • Ability to read both 1D and 2D barcodes
  • Powerful 624 MHz processor, fast sensor shutter speed and patent pending fast pulse illumination
  • Ability to understand IUID constructs, and automatically separate and send the required information to your application
  • Capture high density barcodes (DS3508-HD only)
  • Easily read a wide variety of DPM marks (DS3508-DP only)
  • Exceptional motion tolerance
  • Bright central laser dot ensures quick, accurate scanning -- even in bright sunlight
  • Omnidirectional scanning apeeds reading time by eliminating the need to line up the barcode with the scan line
  • Rugged design withstands multiple 6.5 ft./2 m drops to concrete
  • IP65-rated sealing
  • Integrated image capture and transfer capabilities
  • Multiple on-board interfaces and universal cable set
  • Bright LED, beeper with adjustable volume and vibrating pager motor
  • Advanced data formatting eliminates costly modifications to the host software
  • Supports RSM (Remote Scanner Management)

Additional Information

Manufacturer Motorola
Color Yellow
Scanner Type Imager
Form Factor Handheld
Scanner Capability 2D
Connectivity Corded
Scan Pattern Area
Included Cables Scanner Only - No Cable
Ruggedness Rugged

Recommended Accessories

Cable, Universal Style 3, RS-232, 20 ft, Coiled, Gray
$83.00 $57.65
Ships Today
Free Shipping
- +
Cable, 15' PoweredUSB cable, Straight, Call to purchase.
$50.00 $38.71
Ships Today
Free Shipping
- +
Cable, Synapse Adapter cable, 16 ft, Coiled
$65.00 $46.97
Ships Today
Free Shipping
- +
Cable, USB EAS, Series A Connection, 9 ft, Straight
$60.00 $44.13
Ships Today
Free Shipping
- +
Cable, 12 feet, Keyboard wedge, PS/2, Power Port and Coiled
$60.00 $44.13
Ships Today
Free Shipping
- +

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D Codes
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 and Variants
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes
    • TLC-39, Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard,Inverse, Micro)
    • Postal codes
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal
    • 1D Codes
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417 and Variants
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D Codes
    • TLC-39, Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard,Inverse, Micro)
    • Postal codes
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japan Postal
    • Australian Postal
    • Dutch Postal
    • 4State Postal
  • Depth of Field:
    • 2.60" - 4.50"@4 mil - Code 39
    • 1" - 6.30"@5 mil - Code 39
    • 0 mil - 10.10"@7.50 mil - Code 39
    • 1" - 20.90"@20 mil - Code 39
    • 0.90" - 15.10"@13 mil - 100% UPC
    • 2.70" - 6.10"@6.67 mil - PDF417
    • 0.40" - 9.30"@10 mil - PDF417
    • 3.30" - 14.80"@15 mil - PDF417
    • 2.10" - 5.50"@7.50 mil - Data Matrix
    • 1.10" - 7.10"@10 mil - Data Matrix
    • 1.50" - 6.10"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS3508
  • Product Name: DS3508-SR Handheld Barcode Reader

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Yellow
    • Twilight Black
  • Weight (Approximate): 11.85 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • DS3508-SR Handheld Barcode Reader
    • Manual
    • DS3508-SR Handheld Barcode Reader
    • Manual
