Additional Information
| Color | Yellow |
|---|---|
| Connectivity | Corded |
| Form Factor | Handheld |
| Included Cables | USB |
| Interface Options | USB |
| Manufacturer AIDC | Motorola |
| Model Name | DS3508 |
| Scanner Capability | 2D |
| Scanner Type | CCD, Imager |

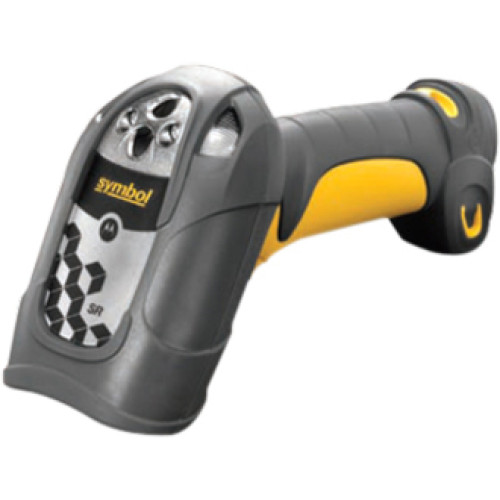

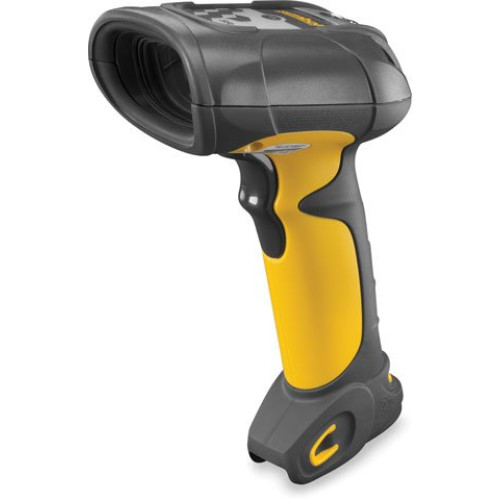

Motorola DS3508 Specs
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Scan Pattern: Omni-directional
- Connectivity Technology: Cable
- Light Source: Laser
- Image Sensor: Imager
- Barcode Symbology Supported:
- 1D Codes:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
- ISBN (Bookland)
- ISSN
- Coupon Code
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 and Variants:
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D Codes:
- TLC-39, Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard,Inverse, Micro)
- Postal Codes:
- U.S. Postnet
- U.S. Planet
- U.K. Postal
- Japan Postal
- Australian Postal
- Dutch Postal
- 4State Postal
- 1D Codes:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
- ISBN (Bookland)
- ISSN
- Coupon Code
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 and Variants:
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D Codes:
- TLC-39, Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard,Inverse, Micro)
- Postal Codes:
- U.S. Postnet
- U.S. Planet
- U.K. Postal
- Japan Postal
- Australian Postal
- Dutch Postal
- 4State Postal
General Information
- Product Type: Handheld Barcode Scanner
- Product Series: DS3508
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: DS3508-SR
- Product Name: DS3508-SR Handheld Barcode Reader
Physical Characteristics
- Height: 7.3"
- Width: 4.8"
- Depth: 2.9"
- Weight (Approximate): 11.85 oz
Interfaces/Ports
- Host Interface: USB
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- DS3508-SR Handheld Barcode Reader
- USB Cable
- DS3508-SR Handheld Barcode Reader
- USB Cable
Warranty
- Limited Warranty: 3 Year
