Additional Information
| Color | Yellow |
|---|---|
| Connectivity | Cordless |
| Form Factor | Handheld |
| Included Cables | USB |
| Interface Options | USB |
| Manufacturer AIDC | Motorola |
| Model Name | DS3578 |
| Scanner Capability | 2D |
| Scanner Type | CCD, Imager |

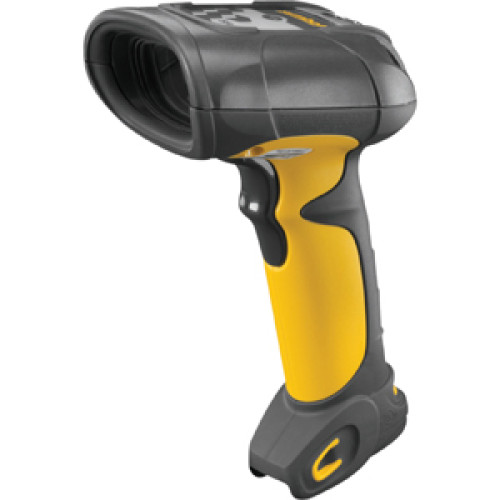

Motorola DS3578 Specs
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Scan Pattern: Omni-directional
- Connectivity Technology: Wireless
- Light Source: LED
- Image Sensor: CMOS
- Barcode Symbology Supported:
- 1D Symbologies:
- UPC/EAN And With Supplementals
- Code 39
- Code 39 Full ASCII
- Tri-optic Code 39
- GS1 DataBar Variants
- GS1-128
- Code 128
- Code 128 Full ASCII
- Code 93
- Codabar (NW1)
- Interleaved 2 of 5
- Discrete 2 of 5 MSI
- Codell
- IATA
- Bookland EAN
- Code 32
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- 2D Symbologies:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- 1D Symbologies:
- UPC/EAN And With Supplementals
- Code 39
- Code 39 Full ASCII
- Tri-optic Code 39
- GS1 DataBar Variants
- GS1-128
- Code 128
- Code 128 Full ASCII
- Code 93
- Codabar (NW1)
- Interleaved 2 of 5
- Discrete 2 of 5 MSI
- Codell
- IATA
- Bookland EAN
- Code 32
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- 2D Symbologies:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Depth of Field:
- 2.60" - 4.50"@4 mil - Code 39
- 1" - 6.30"@5 mil - Code 39
- 10.10"@7.50 mil - Code 39
- 1" - 20.90"@20 mil - Code 39
- 0.90" - 15.10"@13 mil - 100% UPC
- 2.70" - 6.10"@6.67 mil - PDF417
- 0.40" - 9.30"@10 mil - PDF417
- 3.30" - 14.80"@15 mil - PDF417
- 2.10" - 5.50"@7.50 mil - Data Matrix
- 1.10" - 7.10"@10 mil - Data Matrix
- 1.50" - 6.10"@10 mil - Qr Code
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: DS3578-SR
- Product Name: DS3578-SR Handheld Barcode Scanner
Physical Characteristics
- Height: 7.3"
- Width: 4.8"
- Depth: 2.9"
- Color:
- Twilight Black
- Yellow
- Weight (Approximate): 14.60 oz
Interfaces/Ports
- Host Interface: USB
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Certifications & Standards:
- UL 60950-1
- CSA C22.2 nº 60950-1
- EN60950-1/IEC 60950-1
- EN60825-1
- IEC 60825-1
- 21CFR1040.10 CDRH Classe II
- IEC Classe 2
- Interférences FCC Partie 15 Classe B
- ICES-003 Classe B
- EN55022
- EN55024
- AS/NZS 4268:2008
- Japan VCCI
Network & Communication
- Bluetooth: Yes
Warranty
- Limited Warranty: 3 Year
Battery Information
- Battery Chemistry: Lithium Ion (Li-Ion)
