147215 Motorola

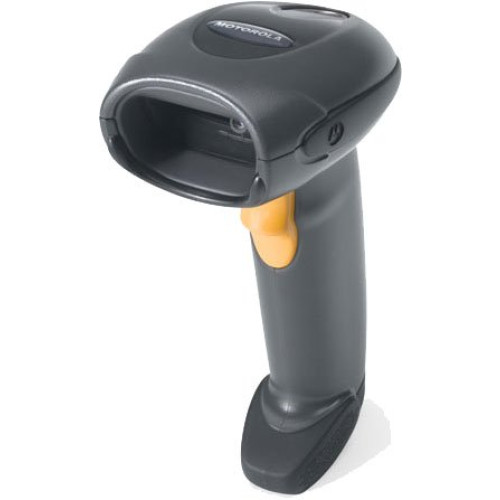

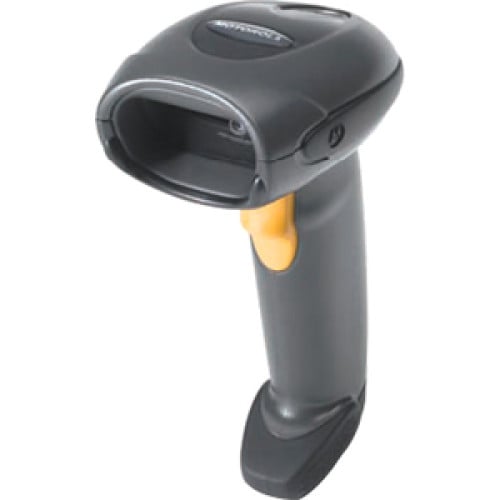

Motorola DS4208 Bar code Scanner Part # DS4208-HBZU000YWR

The Motorola DS4208 scanner can capture not only bar codes printed on paper labels or displayed on the screen of a mobile phone, retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. You get industry leading scanning speed on every bar code; true point-and-shoot first-time scanning simplicity on even damaged and poorly printed bar codes and a durable design for all day everyday reliability, all at an affordable price. The DS4208 is built to last, and toughness tests prove it. The DS4208 delivers outstanding performance, even after exposure to heat, cold, dust, a spilled beverage and 2,000 consecutive drops.

DS4208-HBZU000YWR - Motorola DS4208 Bar code Scanner

Part Details: DS4208, USB Kit, 2D Imager, High Density. Includes USB cable and Stand. Color: Black
InStock

Additional Information

Color Black
Connection USB
Connectivity Corded
Form Factor Handheld
Included Cables USB
Manufacturer Motorola
Product Condition New
Ruggedness General Purpose
Scan Pattern Area
Scanner Capability 2D
Scanner Type Imager
  • Scans 1D, 2D and PDF417 barcodes on paper, mobile phones and computer displays
  • Omnidirectional scan pattern eliminates the need to align barcode and scanner
  • Supports all common interfaces
  • Rugged design: 6 ft. (1.83 m) drop to concrete
  • Compatible with 123Scan2 and Remote Scanner Management (RSM)
  • Easy integration with your existing technology environment, easily migrate to new hosts

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D:
    • UPC/EAN
    • UPC/EAN with supplementals
    • Bookland EAN
    • ISSN
    • UCC Coupon Extended Code
    • Code 128
    • GS1-128
    • ISBT 128
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 32
    • Code 93
    • Code 11
    • Matrix 2 of 5
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • Chinese 2 of 5
    • GS1 DataBar Variants
    • Korean 3 of 5
    • ISBT Concat
    • 2D:
    • PDF417
    • MicroPDF417
    • Composite Codes
    • TL C-39
    • Data Matrix
    • Maxicode
    • QR Code
    • MicroQR
    • Aztec
    • Postal:
    • Australian Post
    • US PLANET
    • Royal Mail 4 State Customer
    • US POSTNET
    • KIX Code (Dutch)
    • UK Postal
    • Japan Post
    • UPU 4 State Postal FICS (Post US4)
    • USPS 4 State Postal (Post US3)
    • 1D:
    • UPC/EAN
    • UPC/EAN with supplementals
    • Bookland EAN
    • ISSN
    • UCC Coupon Extended Code
    • Code 128
    • GS1-128
    • ISBT 128
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 32
    • Code 93
    • Code 11
    • Matrix 2 of 5
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • Chinese 2 of 5
    • GS1 DataBar Variants
    • Korean 3 of 5
    • ISBT Concat
    • 2D:
    • PDF417
    • MicroPDF417
    • Composite Codes
    • TL C-39
    • Data Matrix
    • Maxicode
    • QR Code
    • MicroQR
    • Aztec
    • Postal:
    • Australian Post
    • US PLANET
    • Royal Mail 4 State Customer
    • US POSTNET
    • KIX Code (Dutch)
    • UK Postal
    • Japan Post
    • UPU 4 State Postal FICS (Post US4)
    • USPS 4 State Postal (Post US3)
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0.20" - 3.70"@3 mil - Code 39
    • 0.10" - 4.60"@4 mil - Code 39
    • 0.10" - 5.10"@5 mil - Code 39
    • 0.10" - 6.40"@7.50 mil - Code 39
    • 0.20" - 7.70"@10 mil - Code 39
    • 0.20" - 5.40"@7.80 mil - 60% UPC
    • 0.30" - 6.50"@10.40 mil - 80% UPC
    • 0.70" - 7.60"@13 mil - 100% UPC
    • 0.30" - 4"@5 mil - Code 128
    • 0.80" - 7.20"@10 mil - I2of5
    • 0.70" - 2.70"@4 mil - PDF 417
    • 0.30" - 3"@5 mil - PDF 417
    • 0.40" - 3.60"@6.67 mil - PDF 417
    • 0.80" - 4.70"@10 mil - PDF 417
    • 0.40" - 2.80"@5 mil - Data Matrix
    • 0.40" - 3.90"@7.50 mil - Data Matrix
    • 0.10" - 4.60"@10 mil - Data Matrix
    • 0.40" - 3.90"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS4208
  • Product Name: DS4208 General Purpose Handheld 2D Imager DS4208 General Purpose Handheld 2D Imager

Physical Characteristics

  • Height: 6.7"
  • Width: 2.7"
  • Depth: 3.7"
  • Color: Twilight Black
  • Weight (Approximate): 6.10 oz

Interfaces/Ports

  • Host Interface: Multi-interface
Extended Details
