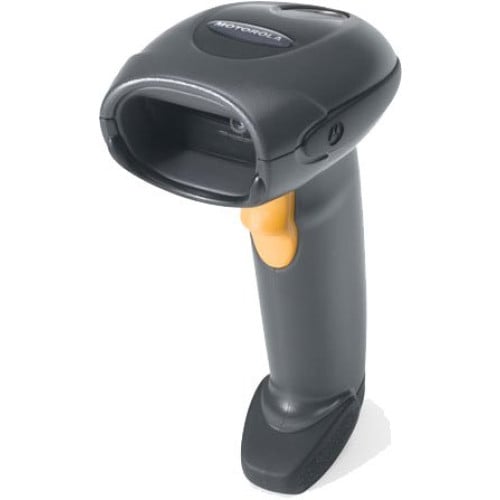

Motorola DS4208 Barcode Scanner
Part #: DS4208-HC0009BWR | SKU: MOT115742

The Motorola DS4208 scanner can capture not only barcodes printed on paper labels or displayed on the screen of a mobile phone, retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. You get industry leading scanning speed on every barcode; true point-and-shoot first-time scanning simplicity on even damaged and poorly printed barcodes and a durable design for all day everyday reliability, all at an affordable price. The DS4208 is built to last, and toughness tests prove it. The DS4208 delivers outstanding performance, even after exposure to heat, cold, dust, a spilled beverage and 2,000 consecutive drops.

Motorola DS4208 Barcode Scanner

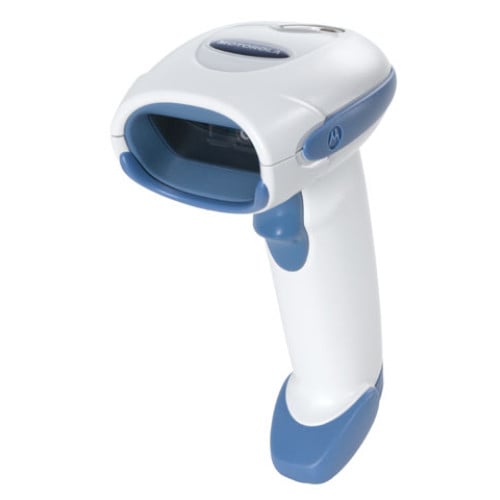

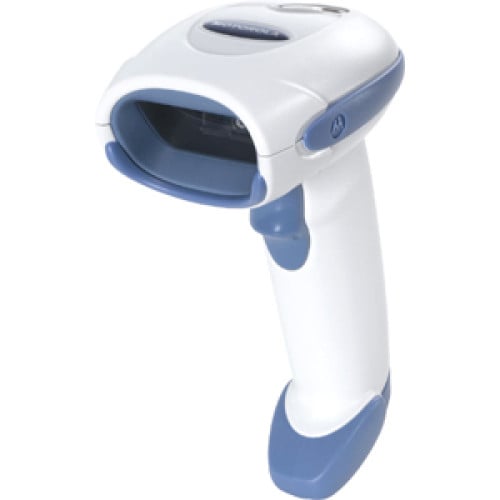

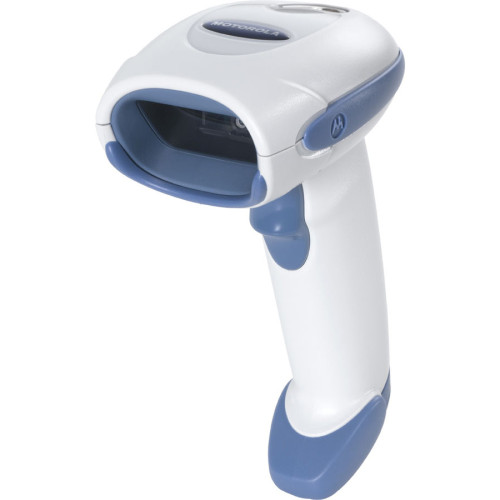

Part Details: DS4208-HC, SCANNER ONLY. 2D Imager, Disinfectant-ready Housing For Health care Applications. Cables sold separately. Color: White. For the full Kit purchase (Part# DS4208-SCZU0100ZWR).

Additional Information

Color White
Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer Motorola
Model Name DS4208
Ruggedness General Purpose
Scan Pattern Area
Scanner Capability 2D
Scanner Type Imager

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D:
    • UPC/EAN
    • UPC/EAN with supplementals
    • Bookland EAN
    • ISSN
    • UCC Coupon Extended Code
    • Code 128
    • GS1-128
    • ISBT 128
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 32
    • Code 93
    • Code 11
    • Matrix 2 of 5
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • Chinese 2 of 5
    • GS1 DataBar Variants
    • Korean 3 of 5
    • ISBT Concat
    • 2D:
    • PDF417
    • MicroPDF417
    • Composite Codes
    • TL C-39
    • Data Matrix
    • Maxicode
    • QR Code
    • MicroQR
    • Aztec
    • Postal:
    • Australian Post
    • US PLANET
    • Royal Mail 4 State Customer
    • US POSTNET
    • KIX Code (Dutch)
    • UK Postal
    • Japan Post
    • UPU 4 State Postal FICS (Post US4)
    • USPS 4 State Postal (Post US3)
    • 1D:
    • UPC/EAN
    • UPC/EAN with supplementals
    • Bookland EAN
    • ISSN
    • UCC Coupon Extended Code
    • Code 128
    • GS1-128
    • ISBT 128
    • Code 39
    • Code 39 Full ASCII
    • Trioptic Code 39
    • Code 32
    • Code 93
    • Code 11
    • Matrix 2 of 5
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Codabar
    • MSI
    • Chinese 2 of 5
    • GS1 DataBar Variants
    • Korean 3 of 5
    • ISBT Concat
    • 2D:
    • PDF417
    • MicroPDF417
    • Composite Codes
    • TL C-39
    • Data Matrix
    • Maxicode
    • QR Code
    • MicroQR
    • Aztec
    • Postal:
    • Australian Post
    • US PLANET
    • Royal Mail 4 State Customer
    • US POSTNET
    • KIX Code (Dutch)
    • UK Postal
    • Japan Post
    • UPU 4 State Postal FICS (Post US4)
    • USPS 4 State Postal (Post US3)
  • Depth of Field:
    • 0.20" - 6.80"@5 mil - Code 39
    • 0 mil - 12.70"@10 mil - 80% UPCA
    • 0.30" - 15.20"@13 mil - 100% UPCA
    • 1.50" - 4.30"@5 mil - PDF 417
    • 0.80" - 6"@6.60 mil - PDF 417
    • 0.40" - 7.20"@10 mil - Data Matrx

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS4208-HC
  • Product Name: DS4208-HC Handheld Barcode Reader

Physical Characteristics

  • Height: 6.7"
  • Width: 2.7"
  • Depth: 3.7"
  • Color: White
  • Weight (Approximate): 6.10 oz

Interfaces/Ports

  • Host Interface:
    • IBM 46XX
    • Serial
    • Keyboard Wedge
    • USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 5 Year
Extended Details
