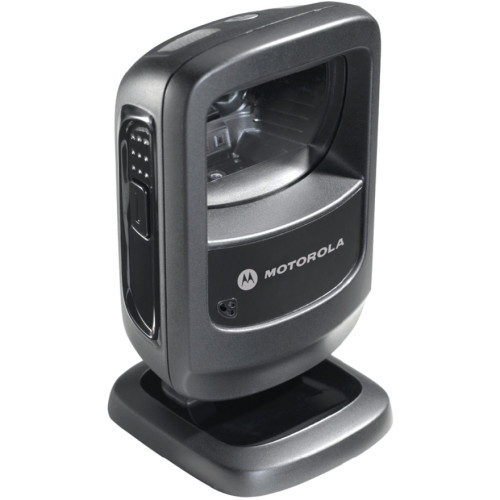

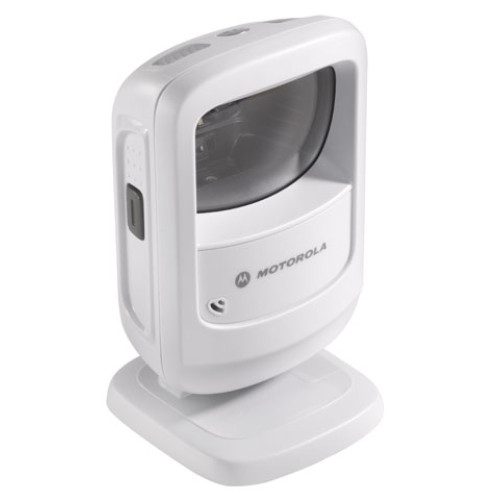

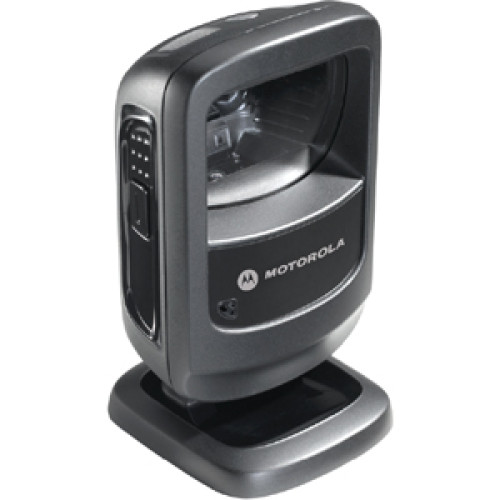

Motorola DS9208 Barcode Scanner Motorola DS9208 Barcode Scanner Motorola DS9208 Barcode Scanner Motorola DS9208 Barcode Scanner

Motorola DS9208 Barcode Scanner
Part #: DS9208-SR0000WCNWW | SKU: MOT206182

The Motorola DS9208 hands-free omnidirectional scanner can capture not only bar codes printed on paper labels or displayed on the screen of a mobile phone, retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. You get industry leading scanning speed on every bar code; true point-and-shoot first-time scanning simplicity on even damaged and poorly printed bar codes and a durable design for all day everyday reliability, all at an affordable price. The DS9208 is built to last, and toughness tests prove it. The DS9208 delivers outstanding performance, even after exposure to heat, cold, dust, a spilled beverage and 2,000 consecutive drops.

Motorola DS9208 Barcode Scanner

Part Details: DS9208, SCANNER ONLY. 2D Imager, Checkpoint EAS Compatible. Cables and power supply sold separately. Color: White
Need a different version of the Motorola DS9208 Barcode Scanner? View all 14 configurations

Additional Information

Color White
Form Factor Presentation
Included Cables Scanner Only - No Cable
Manufacturer AIDC Motorola
Model Name DS9208
Scanner Capability 1D
Scanner Type Imager
Motorola DS9208 Specs Motorola DS9208 Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Scan Rate: 2300 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1-D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 32 (Italian Pharmacode)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11)
    • MSI Plessey
    • GS1 DataBar
    • (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
    • PDF417 (and variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2-D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
    • 1-D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 32 (Italian Pharmacode)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11)
    • MSI Plessey
    • GS1 DataBar
    • (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
    • PDF417 (and variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2-D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
  • Maximum Scan Resolution: 7.80 mil
  • Depth of Field:
    • 0 mil - 4.50"@5 mil - Code 39
    • 0 mil - 8.50"@10 mil - UPC/EAN
    • 0 mil - 10.50"@13 mil - UPC/EAN
    • 0 mil - 3.80"@6.60 mil - PDF417
    • 0 mil - 4.70"@10 mil - Datamatrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS9208
  • Product Name: DS9208 Omnidirectional Hands-free Presentation Imager

Physical Characteristics

  • Height: 5.5"
  • Width: 3.2"
  • Depth: 3.2"
  • Color: White
  • Weight (Approximate): 9.50 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC

Warranty

  • Limited Warranty: 3 Year
Extended Details
