| Manufacturer AIDC | Motorola |
|---|---|
| Model Name | DS9808 |

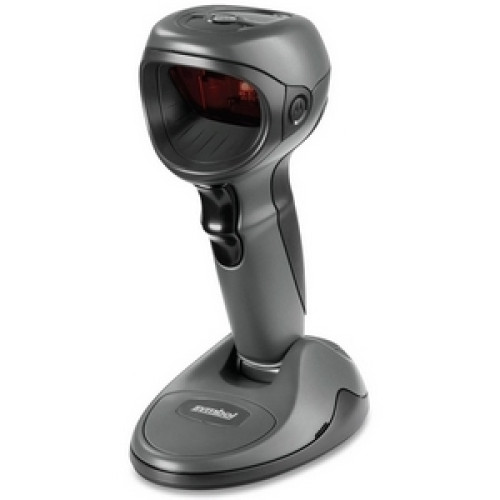

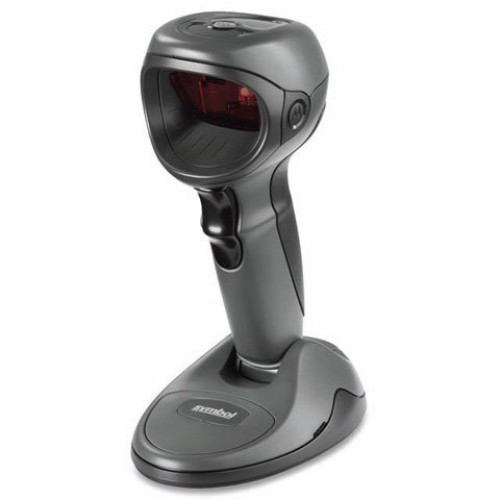

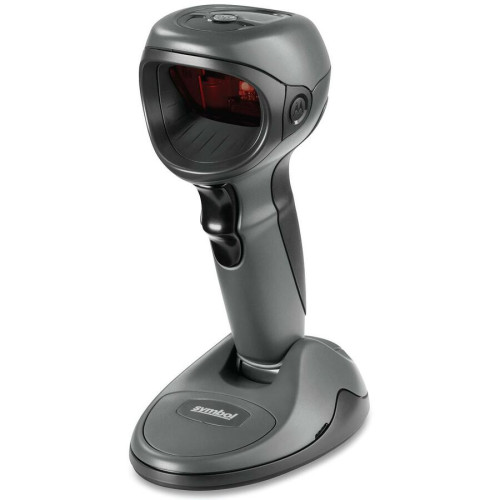

Motorola DS9808 Specs
Technical Information
- Barcode Dimension: 2D
- Scan Pattern: Omni-directional
- Connectivity Technology: Cable
- Scanning Distance: 18"
- Light Source: LED
- Image Sensor: Imager
- Barcode Symbology Supported:
- 1-D / LINEarcodeS:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals)
- ISBN (Bookland)
- ISSN
- Coupon Code
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 (and variants):
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2-D:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode, DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal:
- U.S. Postnet and Planet
- U.K. Post
- Japan Post
- Australian Post
- Netherlands KIX Code
- Royal Mail 4 State Customer
- UPU FICS 4 State Postal
- USPS 4CB
- 1-D / LINEarcodeS:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals)
- ISBN (Bookland)
- ISSN
- Coupon Code
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 (and variants):
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2-D:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode, DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal:
- U.S. Postnet and Planet
- U.K. Post
- Japan Post
- Australian Post
- Netherlands KIX Code
- Royal Mail 4 State Customer
- UPU FICS 4 State Postal
- USPS 4CB
- Maximum Scan Resolution: 7.80 mil
- Depth of Field:
- 0 mil - 4.49"@5 mil - Code 39
- 0 mil - 8.50"@10 mil - UPC/EAN
- 0 mil - 10.51"@13 mil - UPC/EAN
- 0 mil - 5"@6.60 mil - PDF417
- 0 mil - 5.98"@10 mil - Datamatrix
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Name: Symbol DS9808SR Barcode Reader
- Product Line: Symbol
Physical Characteristics
- Height: 8"
- Width: 5.4"
- Depth: 3.4"
- Color: Twilight Black
- Weight (Approximate): 11.99 oz
Interfaces/Ports
- Host Interface: Multi-interface
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Additional Information:
- Supported Interface:
- USB
- RS-232
- RS-485 (IBM 46xx Protocols)
- KBW interface
