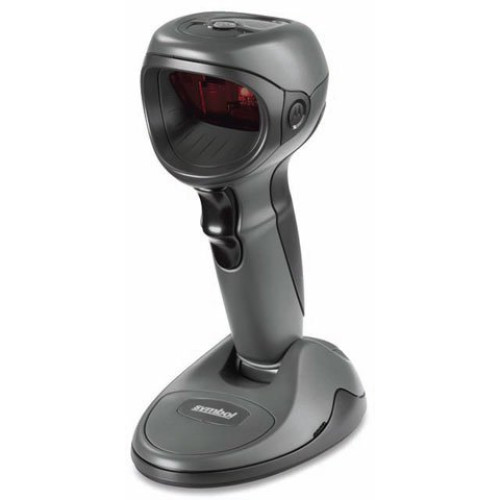

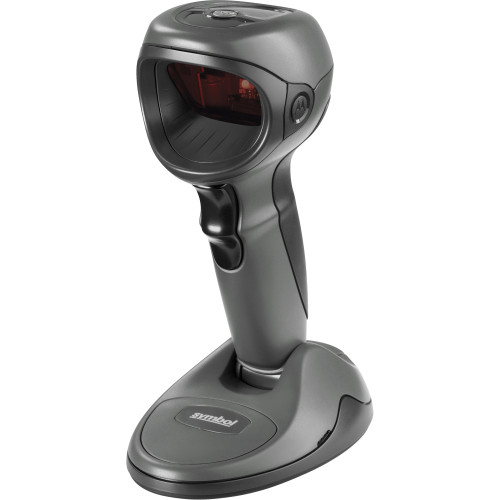

Motorola DS9808 Barcode Scanner
Part #: DS9808-SR7NNU03ZR | SKU: 69760

With the flexible Motorola DS9808, there is no need to purchase multiple devices to enable different types of data capture in your enterprise - no matter what applications you need now or in the future, the powerful comprehensive feature set will meet your needs. The DS9808 delivers the functionality of an image capture device, a barcode scanner, an EAS tag deactivator and an RFID reader all in a single device. Capital and operational costs are significantly reduced - there are fewer devices to purchase and manage, and compatibility with Remote Scanner Management (RSM) enables remote configuration, deployment and day-to-day management of the devices.

Motorola DS9808 Barcode Scanner

Part Details: Symbol DS9808, IBM USB Kit, 2D Imager, Standard Focus. Includes Power+ IBM USB cable. Not a standard USB configuraion.

Additional Information

Manufacturer No
Model Name (controls H1 via model_sku) (EXCLUDE category suffix!) (NetSuite Model Name) DS9808
Product Condition No

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Scanning Distance: 10.50"
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13) plus supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417:
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal USPS 4CB
    • 1D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13) plus supplementals
    • ISBN (Bookland)
    • ISSN
    • Coupon Code
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • Code 11 (Standard, Matrix 2 of 5)
    • MSI Plessey
    • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
    • Base 32 (Italian Pharmacode)
    • PDF417:
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2D:
    • TLC-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal USPS 4CB
  • Maximum Scan Resolution: 7.80 mil
  • Depth of Field:
    • 0 mil - 4.50"@5 mil - Code 39
    • 0 mil - 8.50"@10 mil - UPC/EAN
    • 0 mil - 10.50"@13 mil - UPC/EAN
    • 0 mil - 5"@6.60 mil - PDF417
    • 0 mil - 6"@10 mil - Datamatrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS9808
  • Product Name: Symbol DS9808 Handheld Barcode Scanner
  • Product Line: Symbol

Physical Characteristics

  • Height: 8"
  • Width: 3.4"
  • Depth: 5.4"
  • Color: Twilight Black
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Host Interface: Powered USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
Extended Details

Recommended Accessories for Model: Motorola DS9808 Barcode Scanner

  • Symbol Cables Accessory
    Part #: CBA-U15-S15ZAR | SKU: 29346

    15' USB Power Plus cable, Straight, RoHS (PowerPlus USB is non-standard, please call for more information.)
    MSRP: $66.94 Price: $48.36
    In Stock
  • Symbol Cables Accessory
    Part #: CBA-U12-C09ZAR | SKU: 30850

    Cable; 9 feet, <b> USB </b>, Dark Gray, Maximum, Coiled
    MSRP: $43.45 Price: $34.90
    In Stock
  • Symbol Cables Accessory
    Part #: CBA-U03-S07ZAR | SKU: 26307

    Cable, USB, Power Plus connector, 7 ft, Straight.
    MSRP: $49.32 Price: $38.25
    In Stock
  • Symbol Cables Accessory
    Part #: CBA-R28-C09ZAR | SKU: 26298

    Cable, Verifone, Ruby, True, RS-232, 9 ft, Coiled. Has RJ45 to RJ45 connection.
    MSRP: $45.80 Price: $36.24
    In Stock
  • Symbol Cables Accessory
    Part #: CBA-R31-C09ZAR | SKU: 37715

    Cable, 9 Feet, Rs232, For Ncr7448
    MSRP: $117.43 Price: $81.46
    In Stock

Recommended Warranties for Model: Motorola DS9808 Barcode Scanner

  • Symbol DS9808 Service Contract
    Part #: Z1BE-DS9808-1000 | SKU: 463562

    Zebra OneCare for Enterprise Essential - 1 Year Extended Service - Service - Maintenance - Parts & Labor - Physical, Electronic Service
    MSRP: $66.15 Price: $52.34
  • Symbol DS9808 Service Contract
    Part #: Z1BS-DS9808-1C03 | SKU: 463749

    Zebra OneCare Select with Comprehensive Coverage - 1 Year Extended Service - Service - Exchange - Physical, Electronic Service
    MSRP: $73.50 Price: $57.37
  • Symbol DS9808 Service Contract
    Part #: Z1RS-DS9808-2C03 | SKU: 464171

    Zebra OneCare Select with Comprehensive Coverage - 2 Year Extended Service (Renewal) - Service - Exchange - Physical, Electronic Service
    MSRP: $127.05 Price: $99.16
  • Symbol DS9808 Service Contract
    Part #: Z1AS-DS9808-3C03 | SKU: 464172

    Zebra OneCare Select with Comprehensive Coverage - 3 Year Extended Service - Service - 24 x 7 Next Business Day - Exchange - Physical, Electronic
    MSRP: $59.85 Price: $48.31
  • Symbol DS9808 Service Contract
    Part #: SCE-DS9808-10 | SKU: 370708

    Service Contract - 1 year, Zebra OneCare Service Center Essential. Does not include Comprehensive Coverage.
