Additional Information
| Display Resolution | 640 x 480 |
|---|---|
| IP Rating | IP42 |
| Interface Options | Bluetooth, Wi-Fi |
| Manufacturer | Motorola |
| Model Name | ES400 |
| Operating System | Windows Mobile 6.5.3 Professional |
| Operating Temperature | 32 F - 104 F (0 C - 40 C) |
| Processor | ARM Holdings ARM11 (600 MHz) |
| RAM Memory | 256 MB |
| Scanner Capability | 2D |
| Scanner Type | Imager |
| Style | Phone-size |

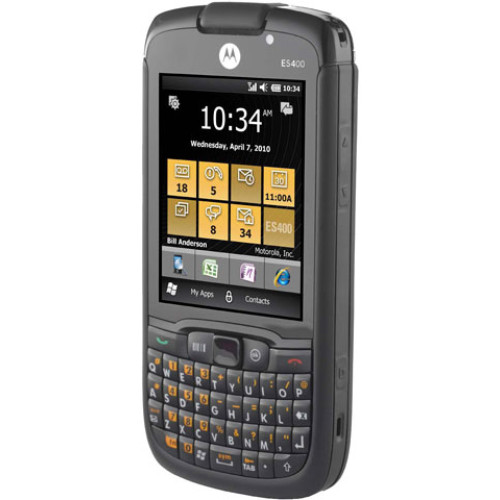

Motorola ES400 Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification:
- 48"
- 36" To Concrete @ 32°F (0°C) to 104°F (40°C)
- Barcode Symbology Supported:
- 1D
- 2D
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: ES400
- Product Name: ES400 Enterprise Smartphone
Physical Characteristics
- Width: 2.4"
- Depth: 0.8"
- Length: 5.1"
- Weight (Approximate): 6.65 oz
Interfaces/Ports
- USB: Yes
Network & Communication
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- WPA2 (Personal or Enterprise)
- 802.1x
- EAP-TLS
- TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
- PEAP (TLS, MSCHAPv2, EAP-GTC)
- LEAP
- EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
Memory
- Flash Memory: 1 GB
- Standard Memory: 256 MB
- Maximum Memory Card Size Supported: 32 GB
- Memory Card Slot: Yes
- Memory Card Supported: microSD Card
Display & Graphics
- Screen Mode: VGA
- Screen Size: 3"
- Display Color: Color
- Screen Resolution: 640 x 480
Battery Information
- Battery Capacity: 3080 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Touchscreen Information
- Touchscreen: Yes
- Touchscreen Type: Resistive
Processor & Chipset
- Processor Speed: 600 MHz
- Processor Type: ARM11
Camera
- Camera: Yes
- Effective Camera Resolution: 3.2 Megapixel
Software
- Operating System: Windows Mobile 6.5.3 Professional
Keyboard/Keypad
- Keyboard Layout: QWERTY
