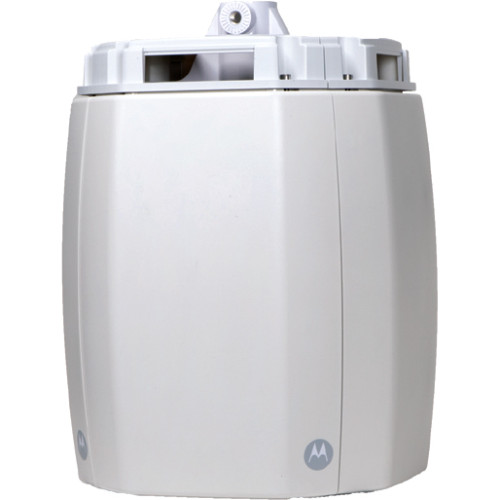

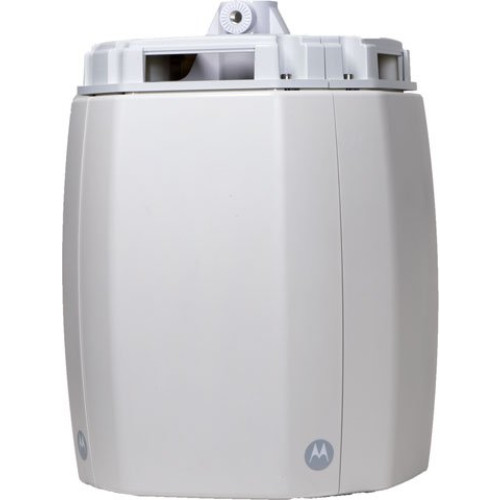

Motorola AP7181 Wireless Access Points
Part #: HK1860A | SKU: MOT85004

The Motorola AP7181 expands on existing technology standards. The AP7181 features 2.4 GHz and 5.x GHz radios that support 3x3 MIMO (Multiple Input Multiple Output) technology reaching a maximum data rate of 300 Mbps. Motorola's high performance radios coupled with 40MHz channel widths allow the AP7181 to be a key component in the most robust installations available. Routing processes are maximized by Motorola's MeshConnex Software which provides efficient routing, low latency, low routing overhead, high-speed handoffs and proven scalability. Also, the unit's design makes installation on buildings, roof tops and light poles simple. These technologies, combined with the ease of use of Motorola products such as the AP7181 indoor access point, create the industry leading solution for continuous coverage throughout a campus or an entire city.

Motorola AP7181 Wireless Access Points

Part Details: Zebra Canopy AP 7181 IEEE 802.11n 300 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Ceiling Mountable, Pole-mountable

Need a different version of the Motorola AP7181 Wireless Access Points? View all 3 configurations

Additional Information

Manufacturer	Motorola
Model Name	AP7181
Wireless Type	Wi-Fi, Wi-Fi 4: 802.11n

Motorola AP7181 Specs (pdf)

Technical Information

Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.40 GHz
UNII Minimum Frequency: 5.73 GHz
Antenna Type: Panel Antenna
Wireless Transmission Speed: 300 Mbps
ISM Maximum Frequency: 2.46 GHz
UNII Maximum Frequency: 5.85 GHz
Features:
- MIMO Technology
- Quality of Service (QoS)
Wireless Security:
- WEP
- WPA
- WPA2-PSK
- TKIP
- RADIUS
- AES-CCM
- IEEE 802.1x
- EAP-TLS
- EAP-TTLS
- Secure Mesh with AES
- MAC Address Authentication

General Information

Product Type: Wireless Access Point
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: AP 7181
Product Name: Canopy AP 7181 Wirelelss Access Point
Product Line: Canopy

Physical Characteristics

Diameter: 14"
Height: 15.4"
Form Factor:
- Ceiling Mountable
- Pole-mountable
Weight (Approximate): 39 lb

Interfaces/Ports

Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
Number of Network (RJ-45) Ports: 2
PoE (RJ-45) Port: Yes
Management Port: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Certifications & Standards:
- IEEE Standards:
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.11i
- IEEE 802.11e
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- Approvals:
- CE
- EPP
- CMM
- FCC CFR 47 Part 15, Class B Subpart C
- Industry Canada RSS 210
- UL 60950-1, -22
- EN 301 489-17
- EN 300 328
- EN 302 502 v1.2.1
- EN 301 893 v1.5.1 DFS
- CB - IEC 60950-1, -22

Power Description

Input Voltage: 48 V DC
Power Source: AC Adapter

Management & Protocols

Management: Web based GUI

Extended Details
