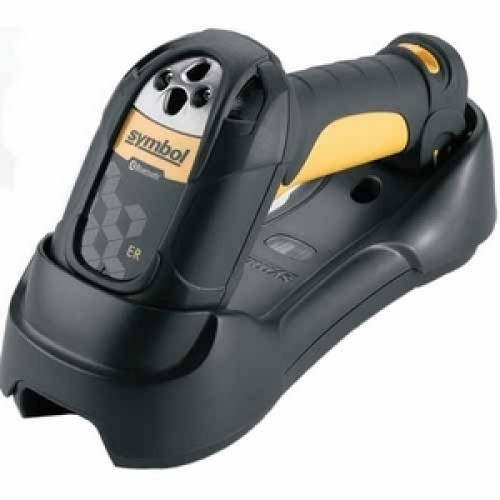

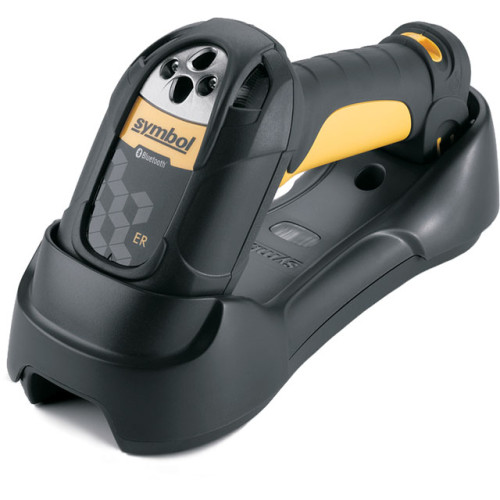

Motorola LS3578-ER Barcode Scanner Motorola LS3578-ER Barcode Scanner Motorola LS3578-ER Barcode Scanner

Motorola LS3578-ER Barcode Scanner
Part #: LS3578-ERBR0100UR | SKU: MOT51967

Scan all one-dimensional (1D) barcodes from practically anywhere with a Bluetooth-enabled cordless rugged scanner. The Symbol LS3578-ER reads labels as far away as 45 feet and as close as four inches--the greatest working range available in a rugged, handheld scanner. Ergonomically designed to be comfortable during long shifts, the scanner gives operators a 150-foot range, which far exceeds the 6-foot corded device range. Designed for use in harsh environments, the Symbol LS3578-ER withstands multiple 6.5-ft. (2-m) drops to concrete and has IP65-rated sealing for protection against the elements. Remote Scanner Management (RSM) enables efficient upgrades from a central location.

Motorola LS3578-ER Barcode Scanner

Part Details: RS-232 Kit, 1D Laser, Cordless, Extended Range. Includes Charging and Communications Cradle, RS-232 cable, Power Supply, and Line Cord.
Need a different version of the Motorola LS3578-ER Barcode Scanner? View all 4 configurations

Additional Information

Color Yellow
Connectivity Cordless
Form Factor Handheld
Included Cables RS-232 Serial
Interface Options Serial
Manufacturer Motorola
Model Name LS3578-ER
Scanner Capability 1D
Scanner Type Laser
Motorola LS3578-ER Specs Motorola LS3578-ER Specs (pdf)

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 147.64 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
  • Maximum Scan Resolution: 7.50 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3578-ER
  • Product Name: Symbol LS3578-ER Handheld Barcode Scanner
  • Product Line: Symbol

Physical Characteristics

  • Color:
    • Black
    • Yellow
  • Weight (Approximate): 14.82 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Symbol LS3578-ER Rugged Barcode Reader
    • Cradle
    • 7 ft. Straight RS-232 Cable
    • Universal Power Supply
    • US AC Line Cord
    • Symbol LS3578-ER Rugged Barcode Reader
    • Cradle
    • 7 ft. Straight RS-232 Cable
    • Universal Power Supply
    • US AC Line Cord
  • Certifications & Standards:
    • IP65
    • RoHS Compliant
    • Radio EN 300 328
    • Input Transient Protection:
    • IEC 1000-4-2
    • IEC 1000-4-3
    • IEC 1000-4-4
    • IEC 1000-4-5
    • IEC 1000-4-6
    • IEC 1000-4-11
    • EMI/RFI:
    • EN 301 489-1
    • EN 301 489-17
    • IEC 60601-1-2
    • EN 55022
    • FCC Part 15 Class B
    • EN 55024
    • EN 61000-3-2
    • EN 61000-3-3
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC825-1 Class 2
    • EN 60825-1
    • IEC 60825-1
    • 21CFR1040.10
    • Electrical Safety:
    • UL 60950-1
    • C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
    • RF Exposure:
    • EN 50360
    • EN 50361
    • FCC Part 2
    • OET Bulletin 65
    • RSS102
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeIBM 468X/469XUSBSynapse

Power Description

  • Input Voltage: 14 V DC
  • Power Source: Battery

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes
Extended Details
