216858 Motorola

Motorola MC3100 Series Hand Held Computer Part # MC3100-RL2S04E00

Building on the successful MC3000, the new Motorola MC3100 Wireless brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 Wireless offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities. MC3000 users will require virtually no training on the MC3100 Wireless. Because the MC3000, MC3100 Wireless and many other Motorola mobile computers share a common architectural platform, porting existing applications to the MC3100 Wireless is fast and easy. And compatibility with existing MC3000 accessories provides a seamless upgrade path to the latest in mobile computing.

MC3100-RL2S04E00 - Motorola MC3100 Wireless Handheld Computer

Part Details: MC3100 Wireless, Mobile Computer (Bluetooth, ROT, 1D, 28 key, 1X, CE6, 256MB/1GB)

Additional Information

Manufacturer Motorola
Product Condition New
  • Integrated 802.11a/b/g tri-mode radio with comprehensive Voice-over-WLAN support for cost-effective voice and data connectivity
  • Industry leading advanced laser scanning or imaging technology for accurate capture of all linear (1D) and 2D barcodes.

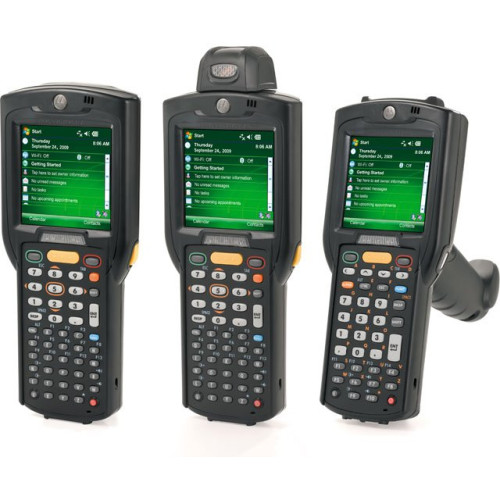

  • 3 different form factors to fit any application use: straight-shooter, gun, or turret
  • Available with Microsoft Windows Mobile 6.X or Windows CE 6.0 operating systems that provide an easy development environment and a large selection of off-the-shelf applications
  • IP54 rated for reliable operation in spite of drops, bumps or exposure to dust and splashing liquids
  • Backward compatibility with MC3000 cradles and accessories allows easy integration without addded costs

Technical Information

  • Connectivity Technology: Batch
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification:
    • 48" To Concrete @ -4°F (-20°C) to 122°F (50°C)
    • 60" To Concrete
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC3100
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3100
  • Product Name: MC3100 Handheld Terminal

Physical Characteristics

  • Width: 3.3"
  • Depth: 1.6"
  • Length: 8.6"
  • Weight (Approximate): 13.52 oz

Network & Communication

  • Bluetooth: Yes
  • Antenna Form Factor: Internal
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAPv2)
    • TTLS PAP
    • TTLS MD5
    • PEAP TLS
    • PEAP (MSCHAPv2)
    • LEAP
    • EAP-FAST (MS-CHAPv2)


  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: PXA320

Battery Information

  • Battery Capacity: 2740 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)


  • Operating System: Windows CE 6.0

Touchscreen Information

  • Touchscreen: Yes


  • Keyboard Type: Numeric
Extended Details
